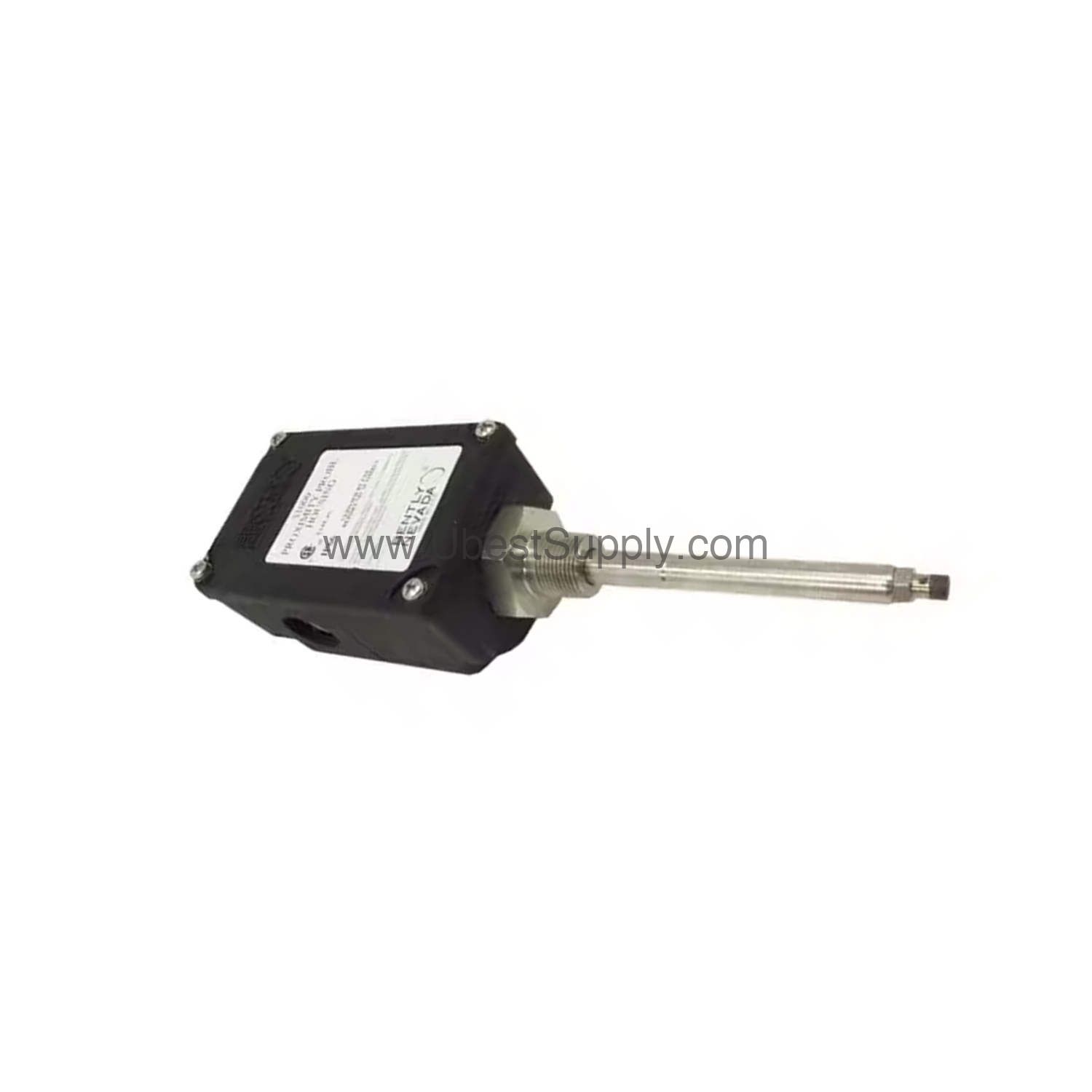

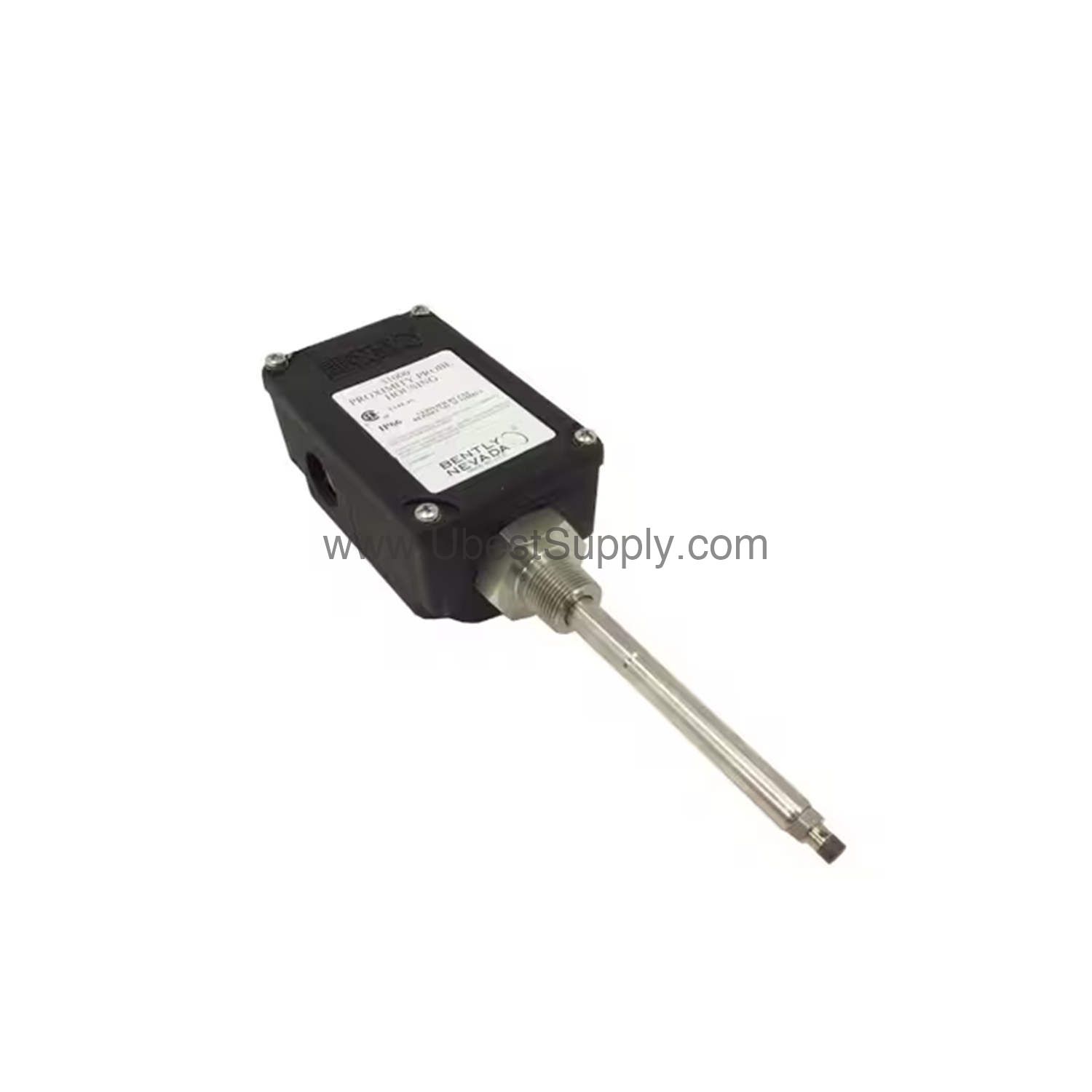

32000-29-05-10-075-07-02 | Bently Nevada 8mm Probe Housing

Introduction to the 32000-29-05-10-075-07-02

When a rotating machine's vibration threatens uptime, the 32000-29-05-10-075-07-02 from Bently Nevada provides a robust housing for proximity probes. This metric housing is engineered for harsh industrial environments, offering reliable protection for the 3300 XL 8 mm probe with connector. With a 0.5 metre cable, 100 mm standoff adapter, and 75 mm probe penetration, it fits specific mounting requirements. The housing is built to endure extreme temperatures and physical impacts, ensuring consistent monitoring performance.

Key Features and Technical Specifications

The 32000-29-05-10-075-07-02 includes several options that tailor it to precise applications. Its probe option (29) integrates a 3300 XL 8 mm probe with a connector protector. The cable length is 0.5 metre, and the standoff adapter is 100 mm. Probe penetration is 75 mm, and the fittings option includes one PG21 x M20 fitting and two plugs. The mounting thread is 3/4-14 NPT, which is required when ordering the standoff adapter.

• Probe Option: 3300 XL 8 mm probe with connector protector
• Cable Length: 0.5 metre
• Standoff Adapter: 100 mm
• Probe Penetration: 75 mm
• Fittings: One PG21 x M20 fitting, two plugs
• Mounting Thread: 3/4-14 NPT
• Temperature Rating: -51°C to +105°C (-60°F to +221°F)
• Weight: 1.2 kg

The housing material is glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers, which provides electrostatic dissipation in hazardous areas. The sleeve and retaining chain are AISI 304 stainless steel, while the outer sleeve and exterior screws are AISI 303 stainless steel. The O-ring is made of Neoprene®. These materials ensure corrosion resistance and long-term durability.

Applications and Use Cases

This housing is ideal for vibration monitoring in turbines, compressors, and pumps where precise shaft displacement measurement is critical. In petrochemical plants, the IP66 and Type 4X ratings protect against water and dust ingress. Similarly, in power generation facilities, the housing's impact resistance—certified to withstand 4 Joule impacts at extreme temperatures—ensures reliable operation. Consequently, maintenance teams can depend on consistent data collection, reducing unplanned downtime.

Installation and Setup

Installing the 32000-29-05-10-075-07-02 requires attention to the mounting thread (3/4-14 NPT) and the standoff adapter. Ensure the probe penetration of 75 mm is correctly set to achieve accurate measurements. The fittings option includes one PG21 x M20 fitting and two plugs, which should be sealed properly to maintain the IP66 rating. Always follow the manufacturer's manual for torque specifications and alignment procedures.

Maintenance and Reliability

Regular inspection of the housing and probe assembly is essential for sustained performance. Check the O-ring and fittings periodically for wear or damage, as they maintain the environmental seal. The stainless steel components resist corrosion, but verify that the cable and connector protector remain intact. By following a routine maintenance schedule, you can extend the service life of the housing and avoid unexpected failures.

Compatibility and Integration

The 32000-29-05-10-075-07-02 is designed to work with Bently Nevada 3300 XL 8 mm proximity probes. It integrates seamlessly with Bently Nevada monitoring systems, providing reliable vibration data. The housing's mounting options and fittings are compatible with standard industrial enclosures, simplifying retrofits or new installations.

Common Questions About the 32000-29-05-10-075-07-02

Q: What is the temperature range for this housing?

A: The housing operates from -51°C to +105°C (-60°F to +221°F), making it suitable for extreme environments.

Q: What mounting thread is required?

A: The mounting thread is 3/4-14 NPT, which is necessary when using the standoff adapter.

Q: What probe does this housing accommodate?

A: It accommodates a 3300 XL 8 mm probe with a connector protector, as specified by the probe option.

Q: What is the weight of the housing?

A: The housing weighs 1.2 kg, which is lightweight for its robust construction.

Product Support and Availability

The 32000-29-05-10-075-07-02 is available through Petro Auto Tech. Contact Petro Auto Tech to confirm current stock and lead times. Our team can assist with technical questions and ordering details.
