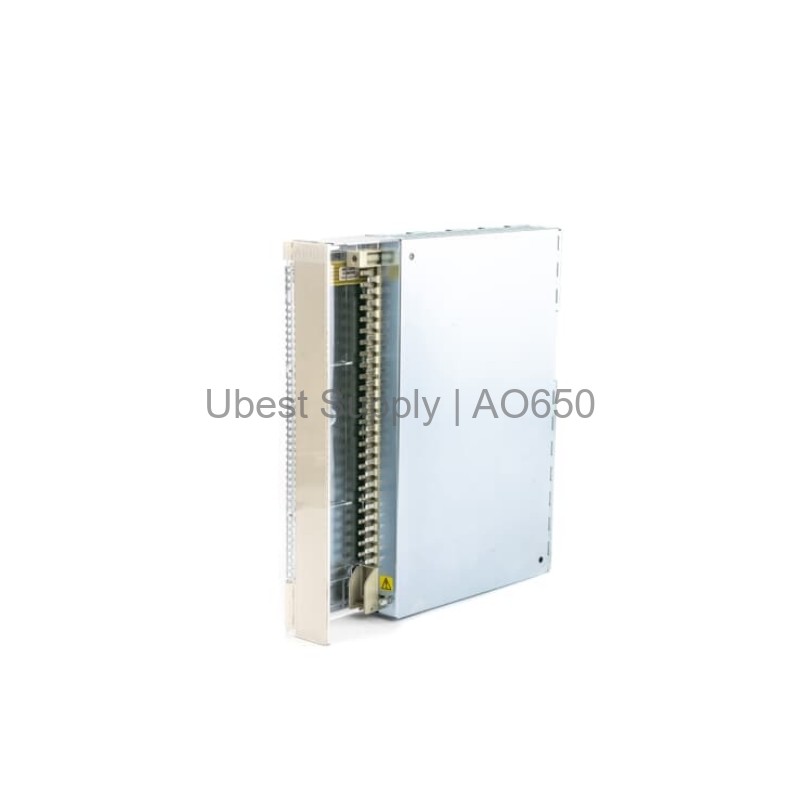

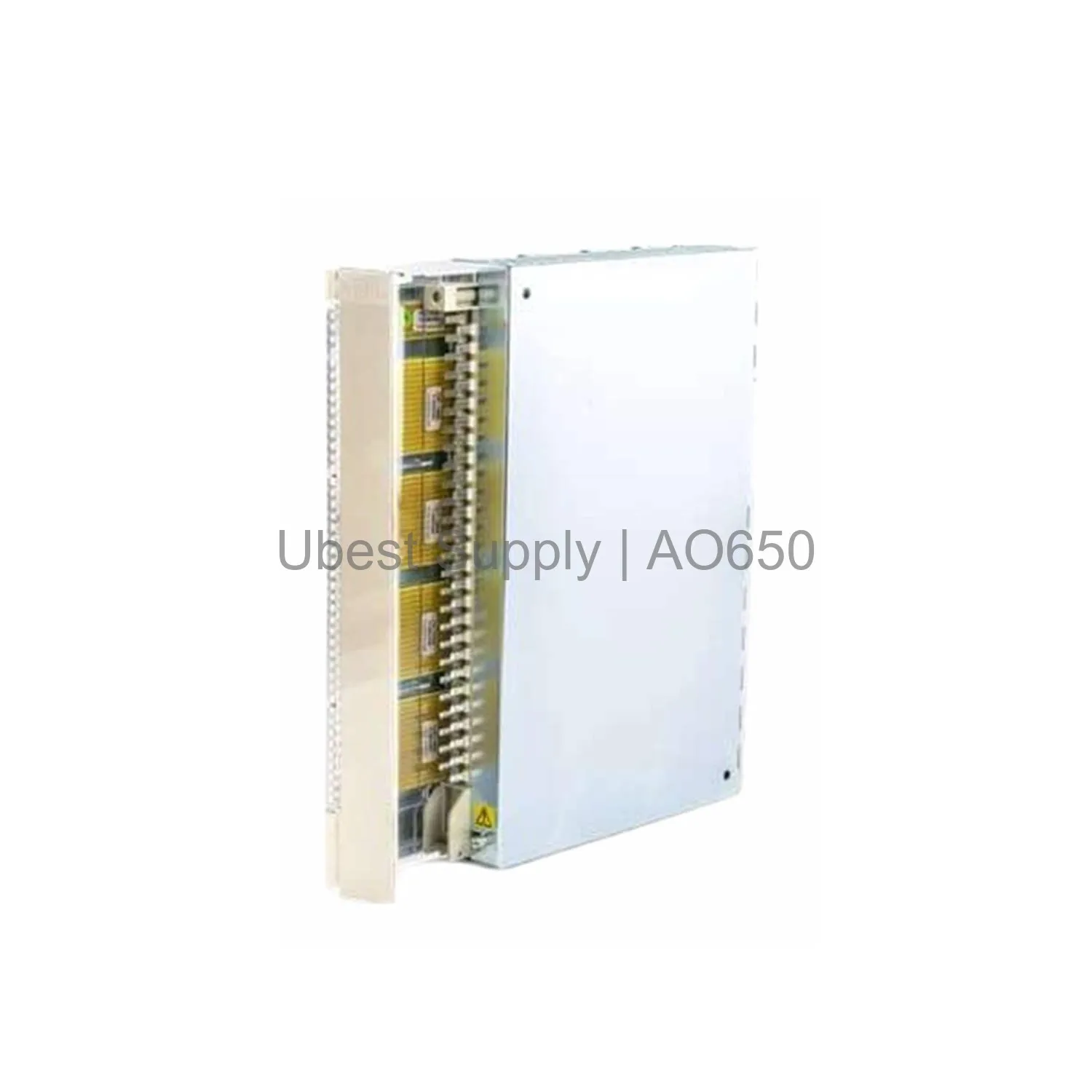

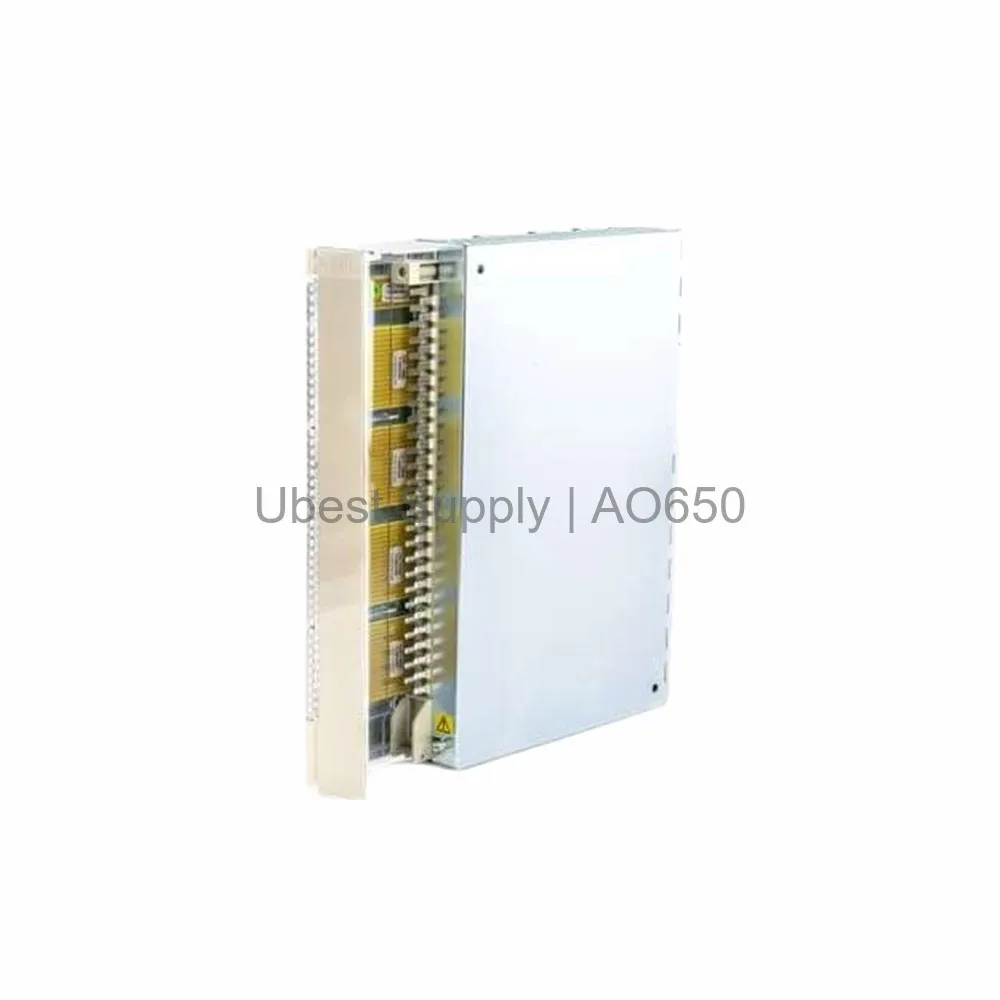

ABB AO650 Analog Output Module 8Ch 12-Bit Isolated

Product Overview

The ABB AO650 is a high-performance analog output module. It belongs to the S600 I/O series. This module offers 8 channels with 12-bit resolution. Each channel is opto-isolated for reliable signal transmission. It supports multiple output ranges. These include 0-20 mA, 4-20 mA, and ±20 mA. Voltage ranges are also available. Options include 0-5 V, 0-10 V, 1-5 V, and ±10 V. The module ensures precise control in demanding environments. Its robust design guarantees long service life.

Application Scenarios

This module is ideal for industrial automation systems. Use it in process control applications. It works well in manufacturing plants. The AO650 suits chemical and petrochemical industries. It is perfect for power generation facilities. Water treatment plants also benefit from its use. The module handles both current and voltage outputs. This flexibility makes it suitable for many actuators. It can drive valves, transducers, and recorders. The isolated channels prevent ground loop issues. This ensures stable operation in noisy environments.

Technical Specifications

The AO650 has 8 output channels. Each channel provides 12-bit resolution. Output current ranges are 0-20 mA, 4-20 mA, and ±20 mA. Output voltage ranges are 0-5 V, 0-10 V, 1-5 V, and ±10 V. All channels feature opto-isolation. The module dimensions are 252 mm deep, 273 mm high, and 40 mm wide. It weighs 1.485 kg. The product net weight is exact. It uses a standard DIN rail mounting. The operating temperature range is typical for industrial gear. The module complies with EU Directive 2011/65/EU on RoHS. It is classified under WEEE Category 5.

Installation & Maintenance Guide

Mount the module on a standard DIN rail. Ensure proper ventilation around the unit. Connect the backplane bus connector securely. Wire each channel according to your signal type. Use shielded cables for long runs. Set the correct output range via configuration software. Test each channel after installation. Perform regular visual inspections. Check for loose connections or damage. Keep the module clean and dry. Replace the module only when powered down. Follow all safety guidelines for your system.

Packing List
