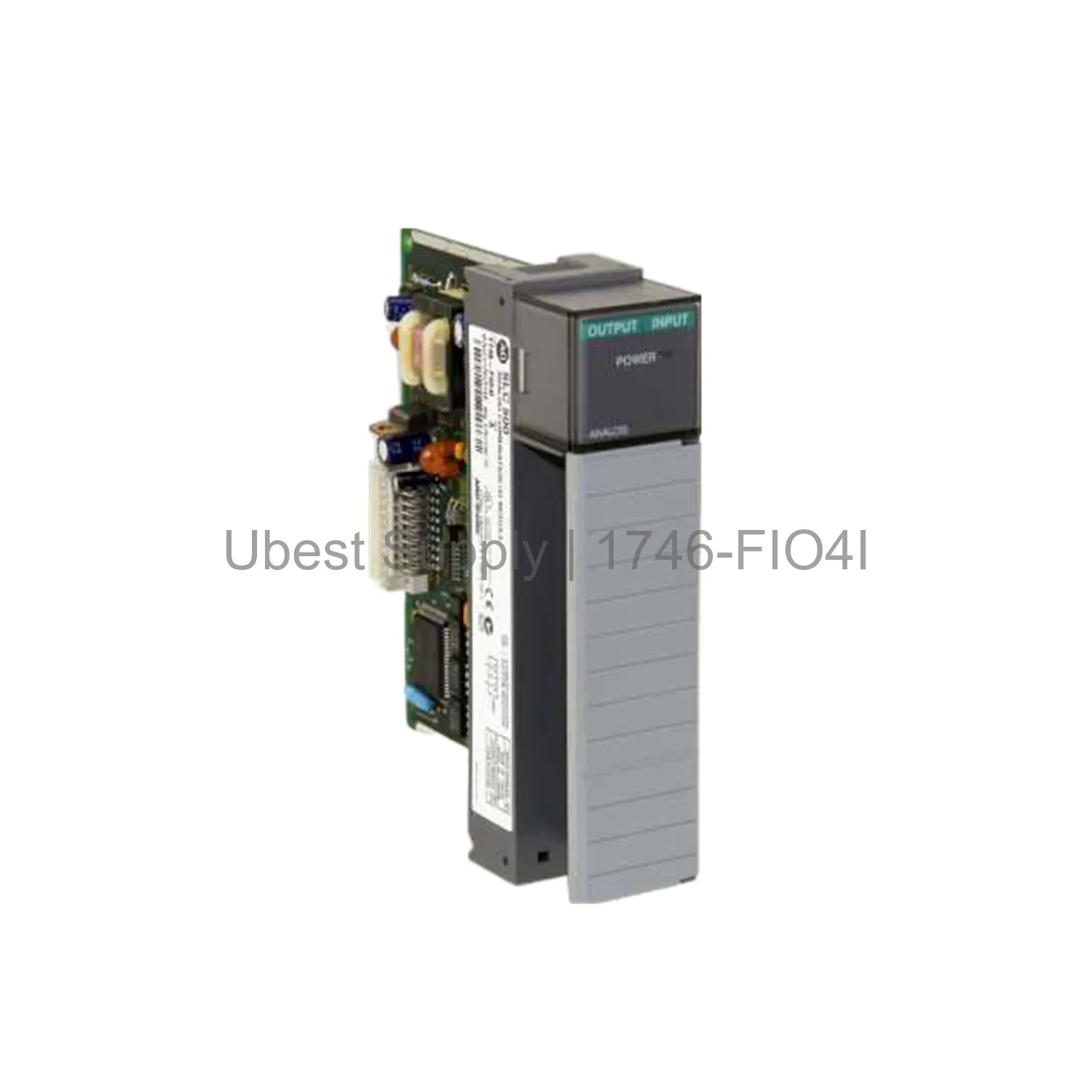

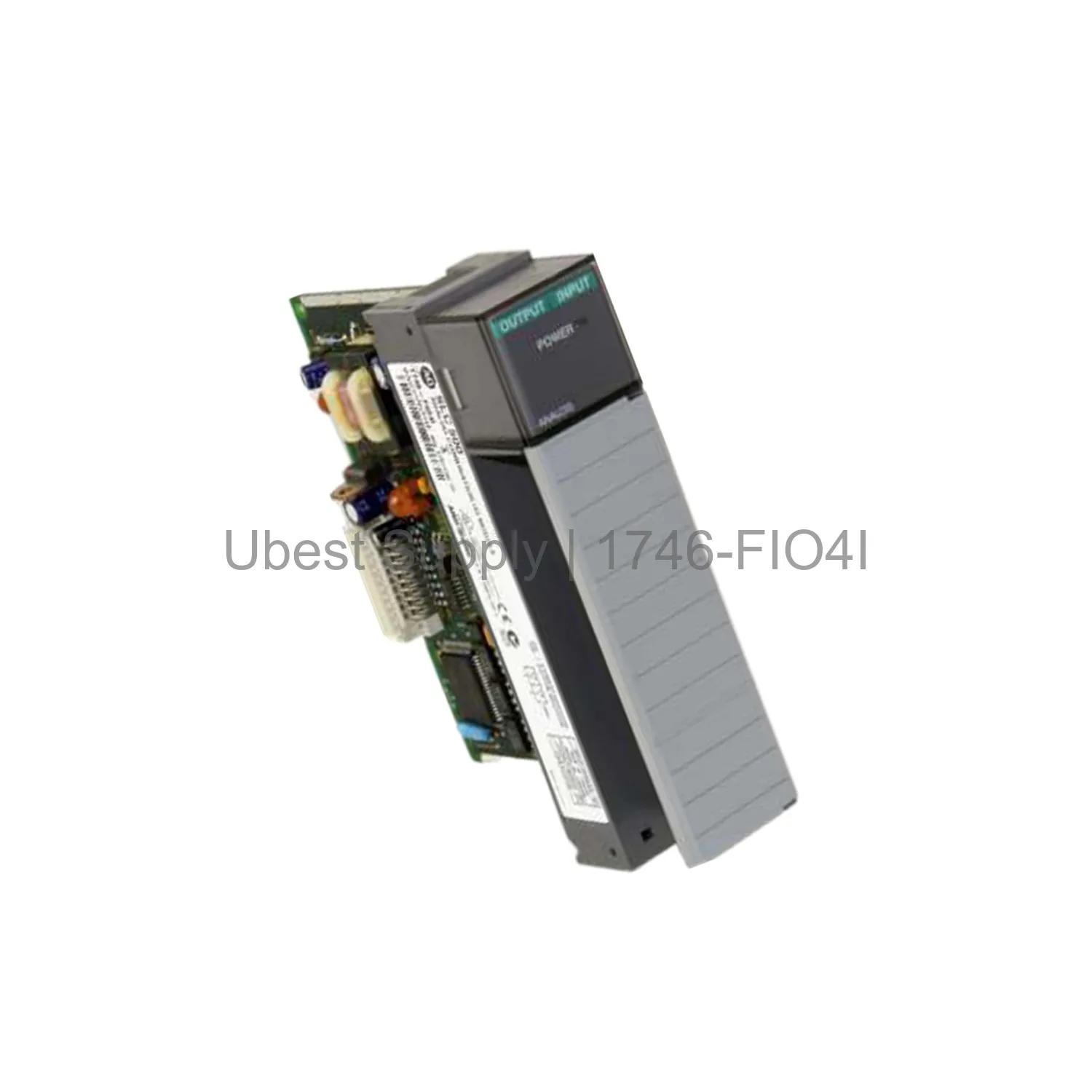

Allen-Bradley 1746-FIO4I SLC 500 Fast Analog I/O Module

Product Overview

The Allen-Bradley 1746-FIO4I is a fast analog combination module. It is part of the SLC 500 product family. This module has two analog input channels. It also has two analog output channels. The inputs support 0-20 mA current or 0-10VDC voltage signals. The outputs support 0-20 mA current signals. This module uses a 12-bit resolution for inputs. It uses a 14-bit resolution for outputs. The conversion method is successive approximation. The input conversion time is 7.5 µs every 512 µs. The bandwidth is 7 kilohertz. This module works with SLC 500 fixed and modular controllers.

Application Scenarios

This module works well in applications with limited space. It combines input and output functions in one slot. The fast input characteristics accept signals from rapid changing variables. Use it for process control, machine control, and data acquisition. It is compatible with many other 1746 modules. Use it with 1747-L20, 1747-L30, and 1747-L40 controllers. It supports expansion I/O racks. This module is ideal for systems needing fast analog signal processing.

Technical Specifications

The module has two differential analog input channels. The input signal range is 0-10 VDC or 0-20 mA. The output signal range is 0-20 mA. Input resolution is 12 bits. Output resolution is 14 bits. The conversion method is R-2R ladder for outputs. The update time is 512 microseconds. The step response is 100 milliseconds for inputs. The step response is 2.5 milliseconds for outputs. Backplane current is 55 mA at 5 Volts. Backplane current is 150 mA at 24 Volts. The module width is a single slot. The maximum wire size is 14 AWG. Use shielded Belden 8761 cable. The ambient humidity range is 5-95% non-condensing.

Installation & Maintenance Guide

Mount the module onto a chassis. Use an open-type enclosure. The compatible connecting cable is 14 AWG. Ensure the backplane isolation is 500V DC. Do not exceed the maximum input voltage of +/- 7.5V DC. Do not exceed the maximum input current of 30 mA. The output overrange capability is 5%. The module has an LED indicator light for status. Keep the ambient temperature within 0-60 degrees Celsius. The non-condensing humidity range is 5-95%.

Packing List

1 x Allen-Bradley 1746-FIO4I Fast Analog I/O Module. 1 x Installation Guide. The module is shipped in anti-static packaging. Shipping is via Fedex, UPS, or DHL.
