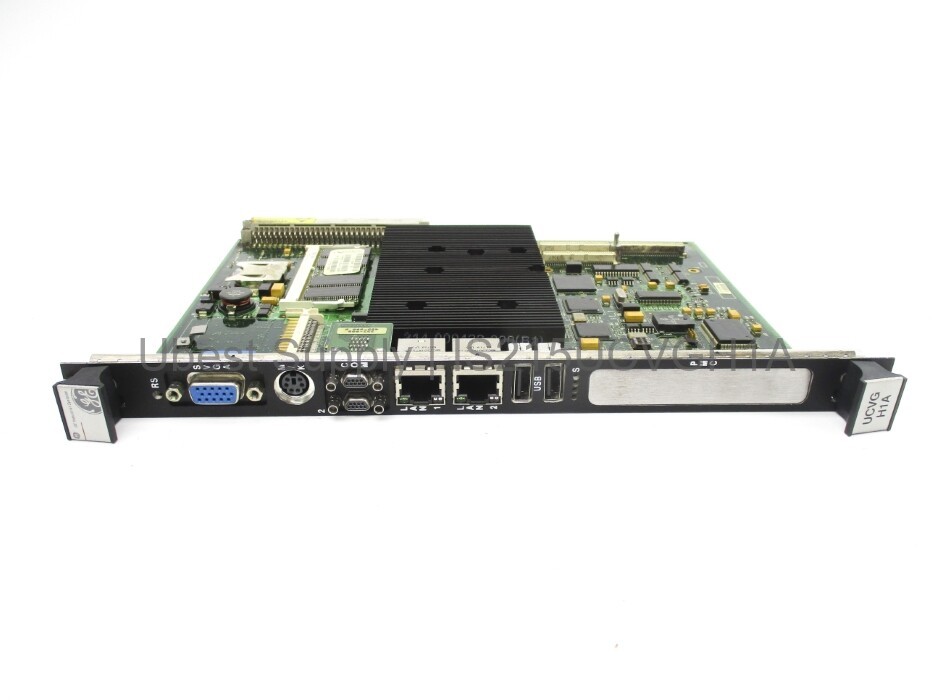

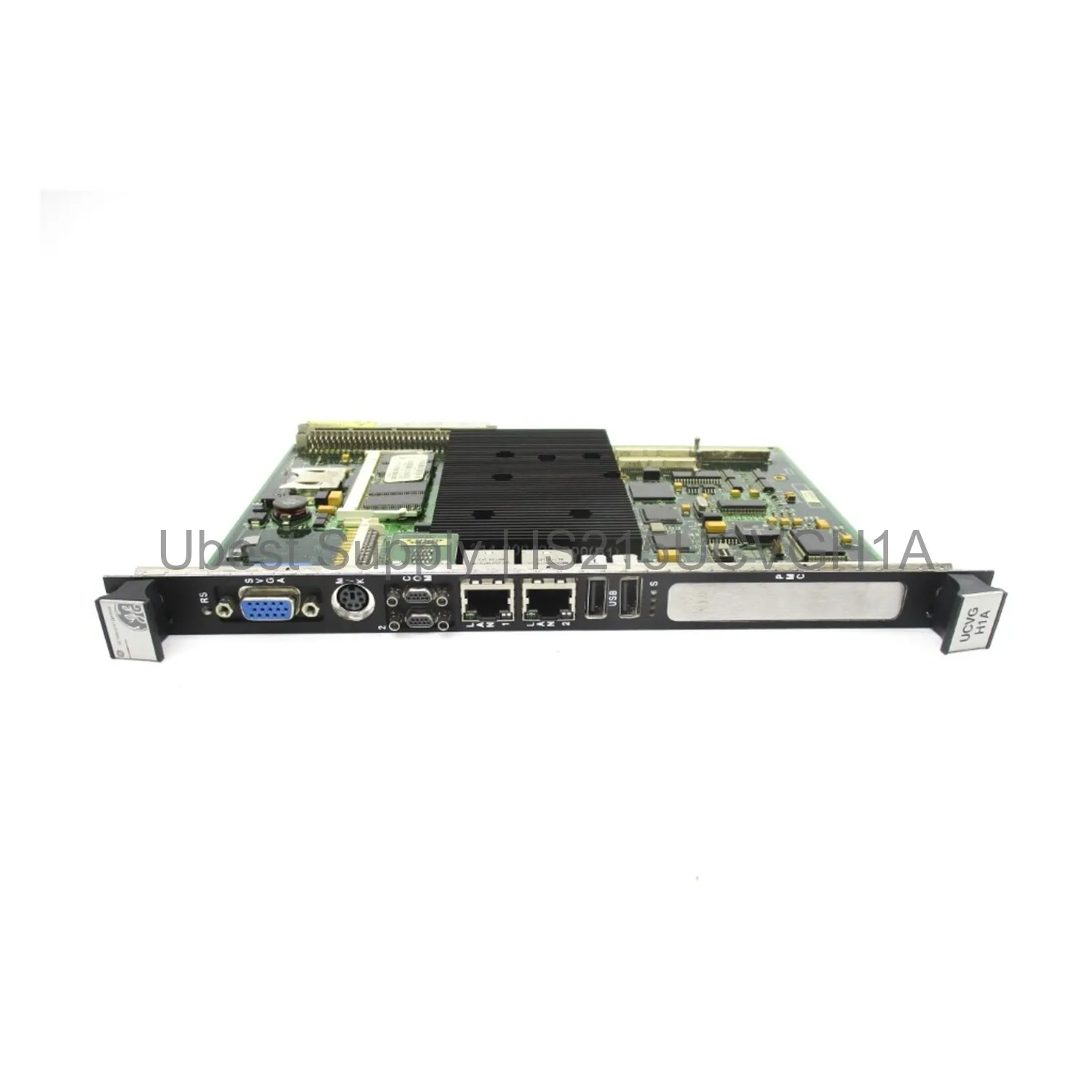

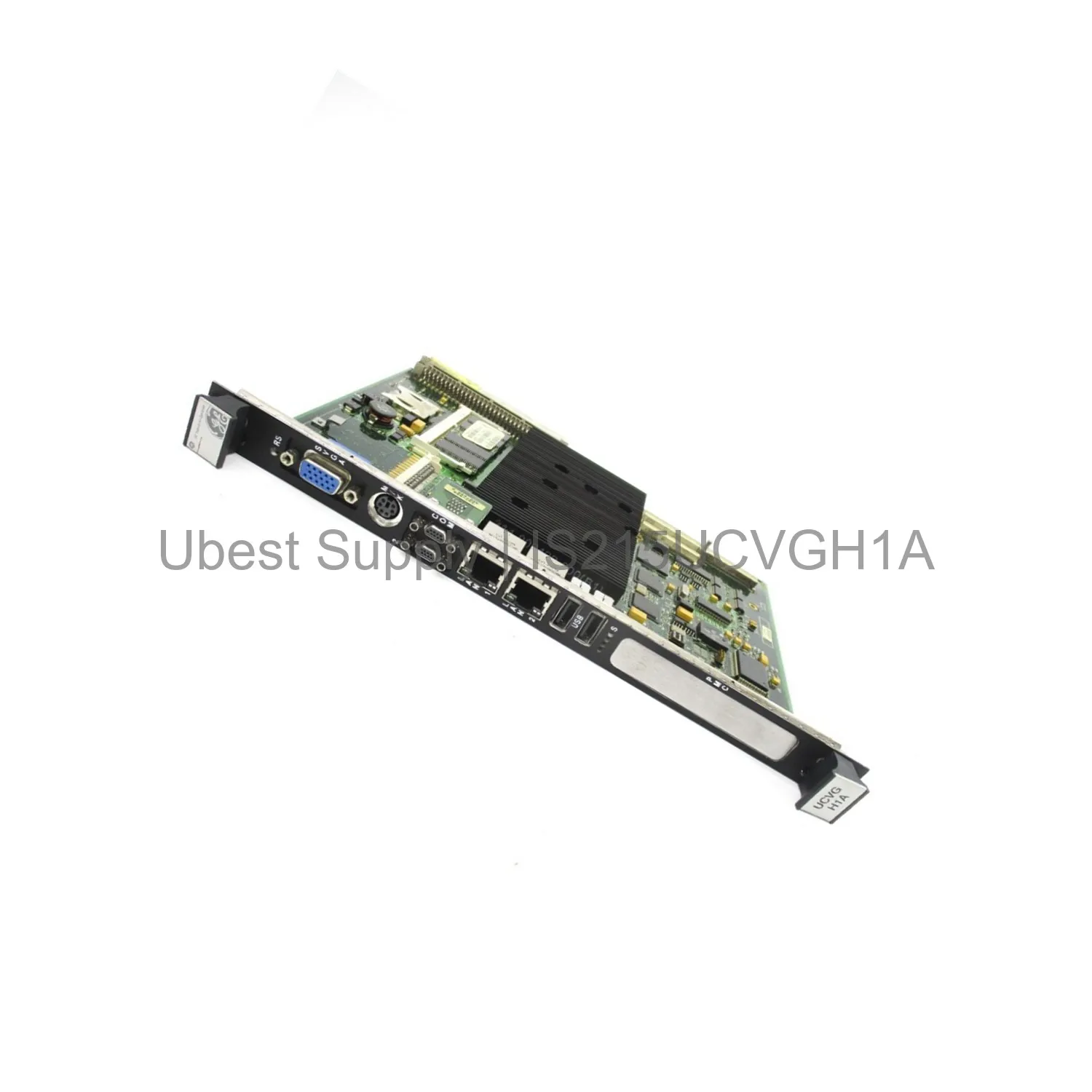

GE Mark VI IS215UCVGH1A UCVG Controller 650 MHz

Product Overview

The GE Mark VI IS215UCVGH1A is a UCVG controller module. It runs on the QNX operating system. This unit uses an Intel Ultra Low Voltage Celeron processor. The processor speed is 650 MHz. It has 128MB of Flash memory and 128MB of SDRAM. This controller is ideal for gas and steam turbine management.

This module supports two Ethernet ports. Each port uses an RJ-45 connector. The network speed is 10BaseT or 100BaseTX. It also includes Com1 and Com2 ports for serial communication. The board size is 2.8 cm high by 8.6 cm wide. It weighs only 0.45 kg.

Application Scenarios

Engineers use the IS215UCVGH1A in power generation plants. It controls complex turbine systems. The Mark VI series is a standard for critical machinery. This controller works in high-temperature environments. Its operating range is 0 to 70 degrees Celsius.

It manages speed, temperature, and fuel control loops. The unit integrates with other Mark VI components. It provides reliable data processing for safety systems. Many facilities use this board for retrofits and upgrades.

Technical Specifications

The power requirements are precise. It needs +5V dc at 4 A typical. The maximum draw is 5.4 A. It also uses +12 V dc and -12 V dc. Both are less than 1mA typical. The power supply voltage is 24 V dc.

The processor is an Intel Ultra Low Voltage Celeron. The clock speed is 650 MHz. Memory includes 128MB of Flash and 128MB of SDRAM. The operating system is QNX. It has two Ethernet ports and two serial ports. The board dimensions are 2.8 cm by 8.6 cm. The weight is 0.45 kg.

Installation & Maintenance Guide

Always power down the system before installation. Mount the board securely in the rack. Connect the Ethernet cables to the RJ-45 ports. Attach any serial cables to Com1 or Com2. Verify the power supply voltage is 24 V dc.

Check all connections for tightness. Use the manual GEH-6421V for setup. The manual GEI-100603AI is also provided. Keep the controller area clean and dry. Monitor the operating temperature. Do not exceed 70 degrees Celsius.

Packing List

Each order includes one GE Mark VI UCVG controller. The model is IS215UCVGH1A. The unit ships from our US warehouse. We use Fedex, UPS, or DHL for shipping. The package includes the instruction manual. The manual part number is GEI-100603AI. The unit weight is 0.45 kg.
