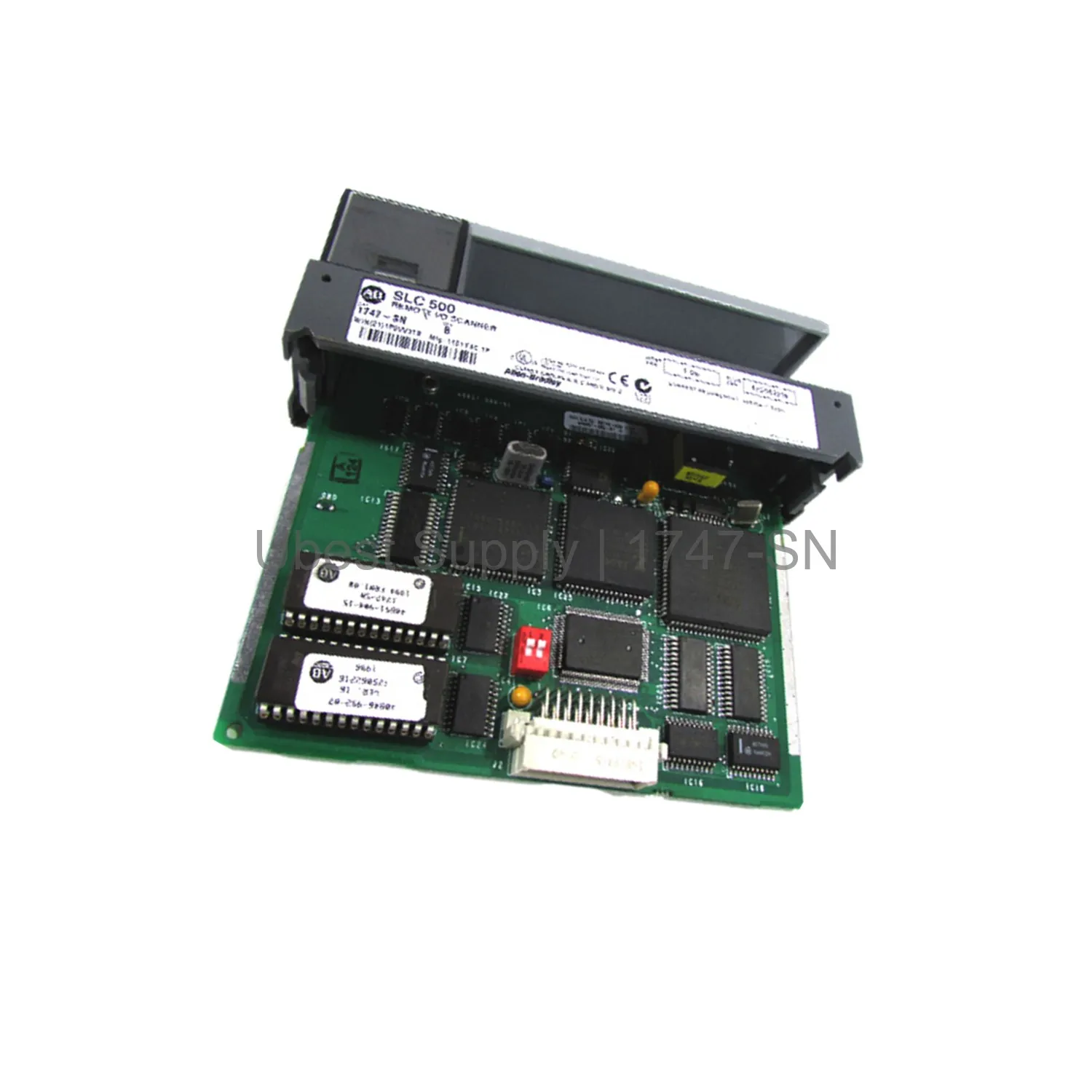

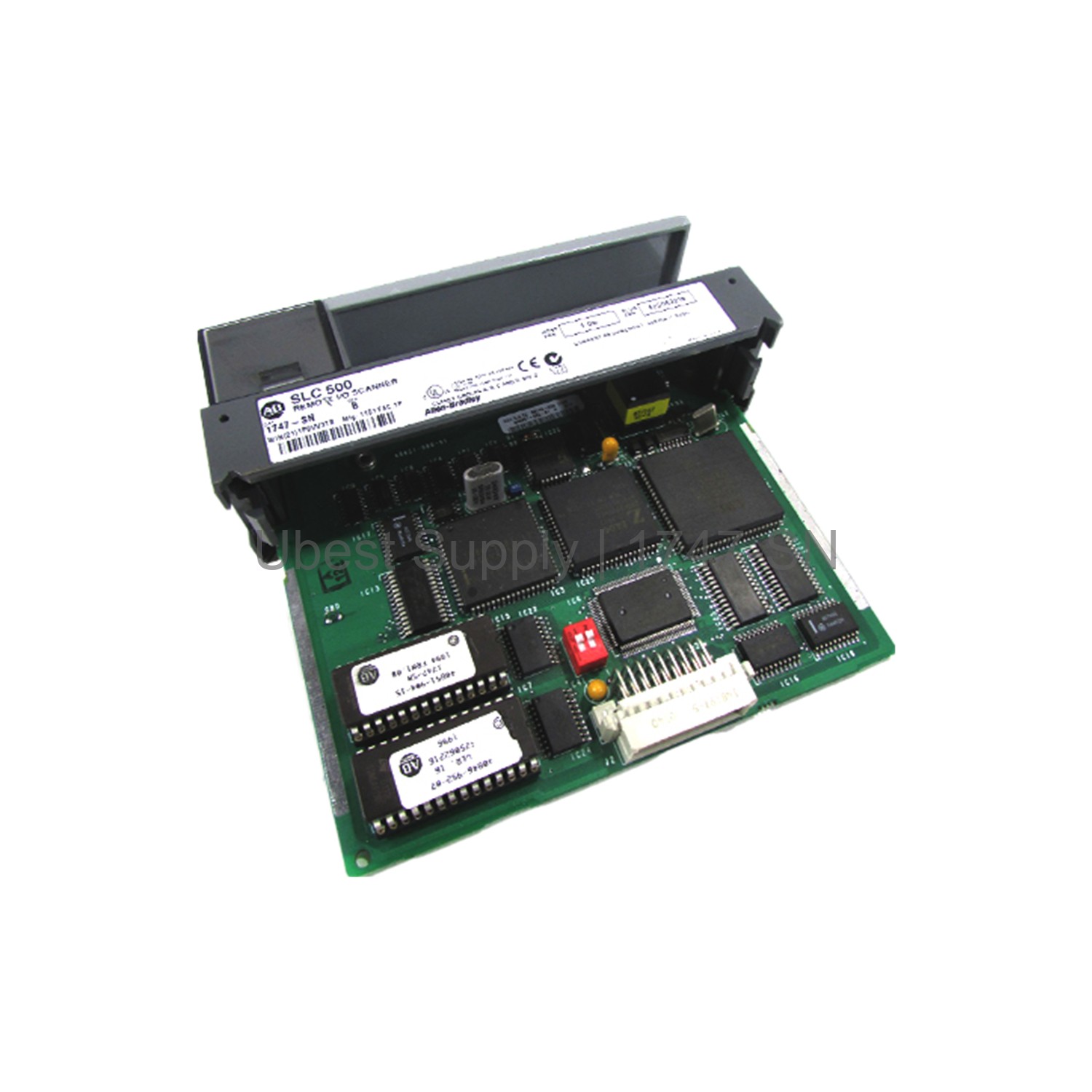

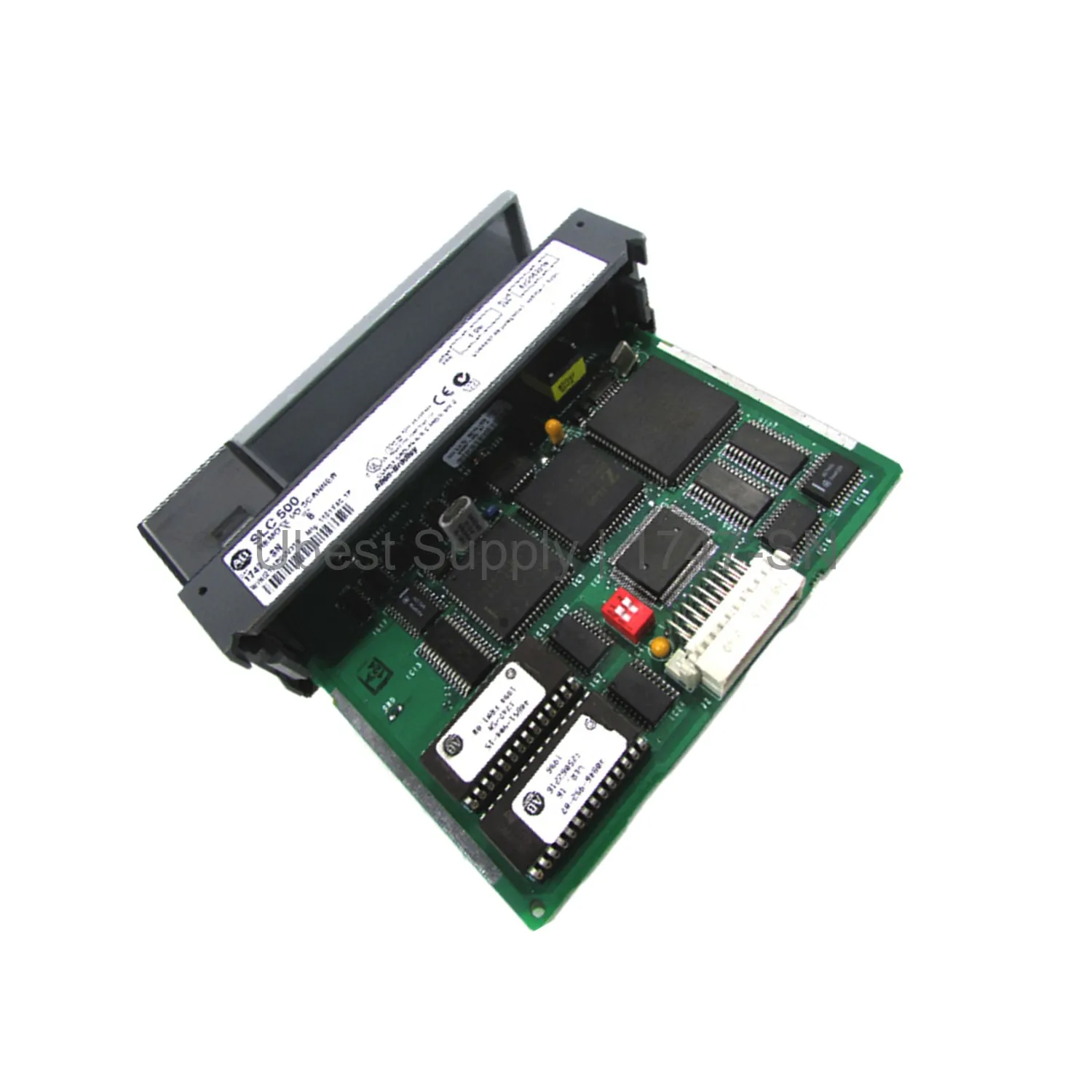

Allen-Bradley 1747-SN SLC 500 Remote I/O Scanner Module

Product Overview

The Allen-Bradley 1747-SN is a Remote I/O Scanner module for SLC 500 systems. It manages high-speed data transfer between processors, HMIs, and other automation devices. The module uses one 3-pin RIO communication port. It works with Belden 9463 cable. The 1747-SN supports daisy-chain topology and needs an 82-ohm terminating resistor. It can handle up to 16 devices in normal mode and 32 in complementary mode.

Application Scenarios

This scanner module fits in factory automation lines. It links SLC 500 controllers to remote I/O racks. Use it with PanelView terminals for operator interface. It also works with message displays and third-party gateways. The module supports remote I/O passthru for diagnostics. It is ideal for systems requiring extended cable runs up to 3048 meters.

Technical Specifications

Operating temperature is 0 to 60 degrees Celsius. Storage temperature is -40 to 85 degrees Celsius. Relative humidity is 5 to 95% without condensation. Backplane current draws 600 mA at 5V and 90 mA at 24V. The module weighs 0.45 kg. Communication cable is Belden 9463. Maximum RIO cable length is 3048 meters (10000 ft). Baud rates are selectable: 57.6 kbaud at 3048 m and 230.4 kbaud at 762 m. Use two DIP switches for rate selection. The module fits in any SLC 500 chassis slot. It is compatible with SLC 5/02, 5/03, 5/04, and 5/05 processors.

Installation & Maintenance Guide

Install the 1747-SN in a SLC 500 chassis slot. Set the baud rate using DIP switches 1 and 2. Connect the RIO cable to the 3-pin terminal. Use Belden 9463 cable for best performance. Terminate both ends with an 82-ohm resistor. Ensure cable length does not exceed 3048 meters. For 230.4 kbaud operation, limit length to 762 meters. Avoid condensation and keep within operating temperature range. No special maintenance is needed beyond periodic inspection of connections.

Packing List

One Allen-Bradley 1747-SN Remote I/O Scanner module includes the unit with terminal block. No cables or resistors are provided. Ship via FedEx, UPS, or DHL. The module is packaged in anti-static material for safe transport.
