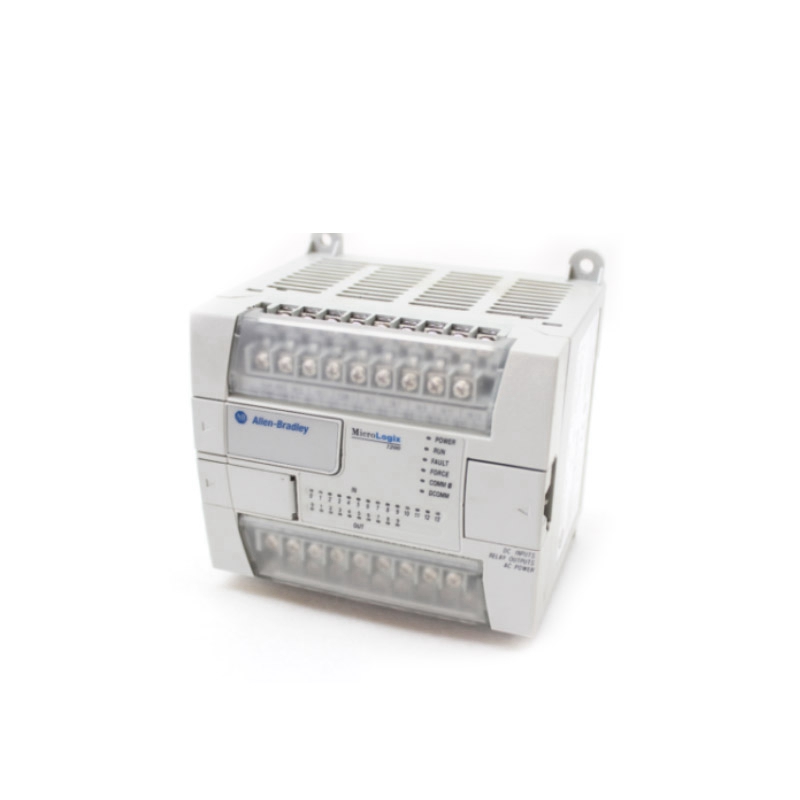

Allen-Bradley 1762-L24BWA MicroLogix 1200 PLC Module

## 产品简介
The **1762-L24BWA** is a compact MicroLogix 1200 controller featuring fourteen 24VDC inputs and ten relay outputs. It also includes an integrated RS232 communication port supporting DH485, DF1, Modbus, and ASCII. Engineers commonly select this PLC for small to medium automation tasks in manufacturing and packaging lines. Its modular design allows adding expansion I/O modules easily to increase the I/O capacity.

Manufacturing facilities use the **1762-L24BWA** for controlling conveyors, packaging machines, and material handling systems. It also suits standalone machine control in water treatment or building automation. The compact form fits enclosures with limited space, making it ideal for retrofit projects. Operators program it via RSLogix 500 software through the built-in RS232 port. The controller interfaces with HMIs, SCADA systems, or other devices using supported protocols.

The **1762-L24BWA** operates on 120-240 Volts AC input power and dissipates 15.7 Watts of heat. The power supply inrush current reaches 25A for 8 ms at 120V AC and 40A for 4 ms at 240V AC. It has fourteen digital inputs rated for 24 Volts DC with sink/source configuration. Ten relay outputs handle up to 10A load current and offer 20,000,000 mechanical cycles. The ambient operating temperature ranges from 0 to 55 degrees Celsius. The RS232 port supports DH485, DF1 full-duplex, DF1 half-duplex, DF1 radio modem, Modbus master/slave, and ASCII protocols. The controller weighs 2 pounds and measures 90 mm by 110 mm by 87 mm.

## 安装指南
Mount the **1762-L24BWA** on a DIN rail using the integrated latch or directly on a panel using the provided slots. Ensure the controller is disconnected from power before mounting or wiring. Connect the AC power supply to the appropriate L and N terminals. Wire inputs according to sink or source configuration, and connect relay outputs to external devices. Use the 8-pin mini DIN RS232 port to connect a programming cable. Install expansion I/O modules only with power off to prevent arcing.

Always disconnect power before removing or inserting expansion I/O modules. Electrical arcing can cause personal injury and damage connector contacts. Keep the ambient temperature between 0 and 55 degrees Celsius to ensure reliable operation. The relay contacts have a lifespan of 20 million cycles; replace the controller if contacts wear out. Periodically inspect wiring and clean dust from ventilation openings. Use only supported cables and accessories to maintain EMC compliance.

- One **1762-L24BWA** MicroLogix 1200 controller
- One installation manual
- One RS232 communication cable (8-pin mini DIN)
- One mounting hardware kit (DIN rail clip and panel screws)
- One product documentation CD
