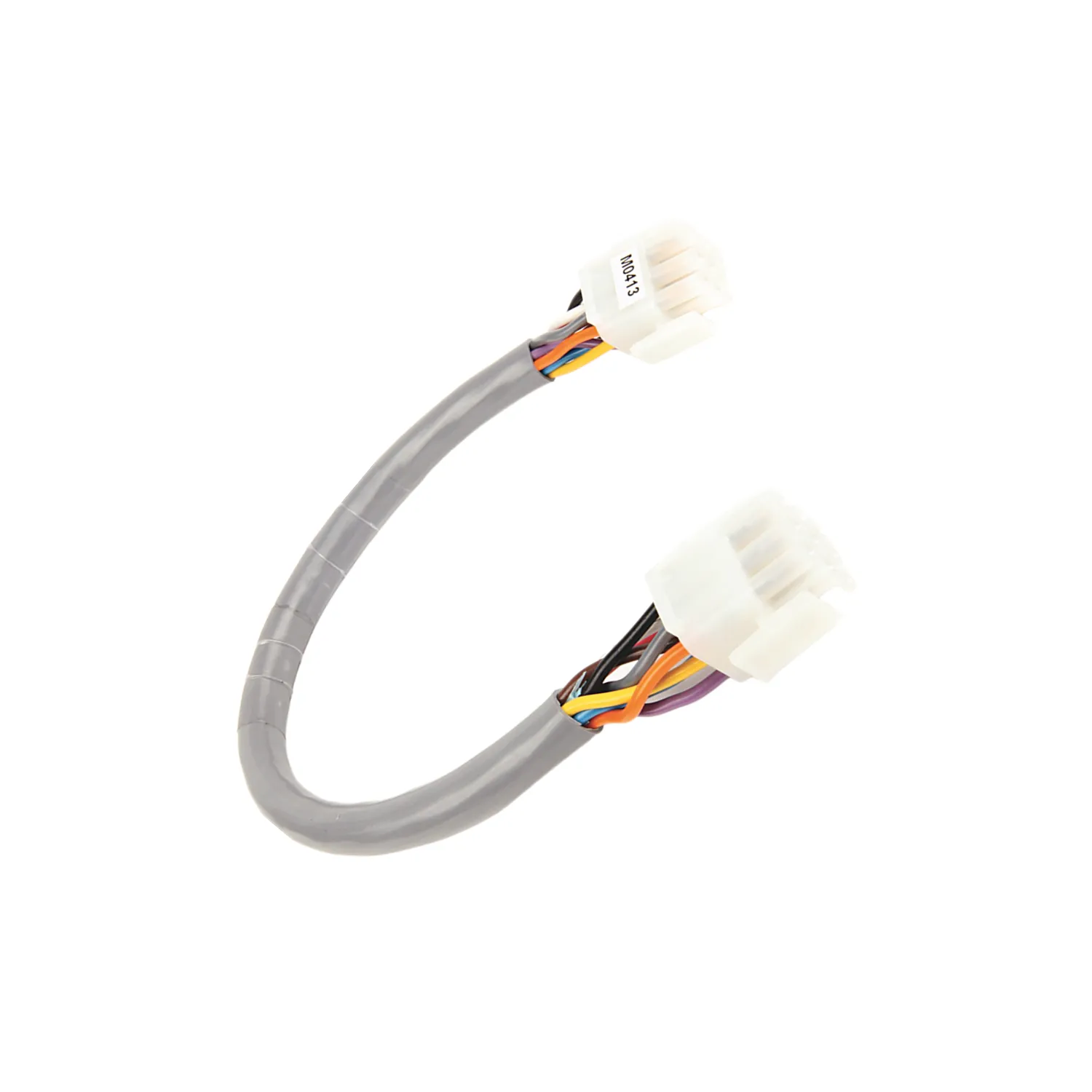

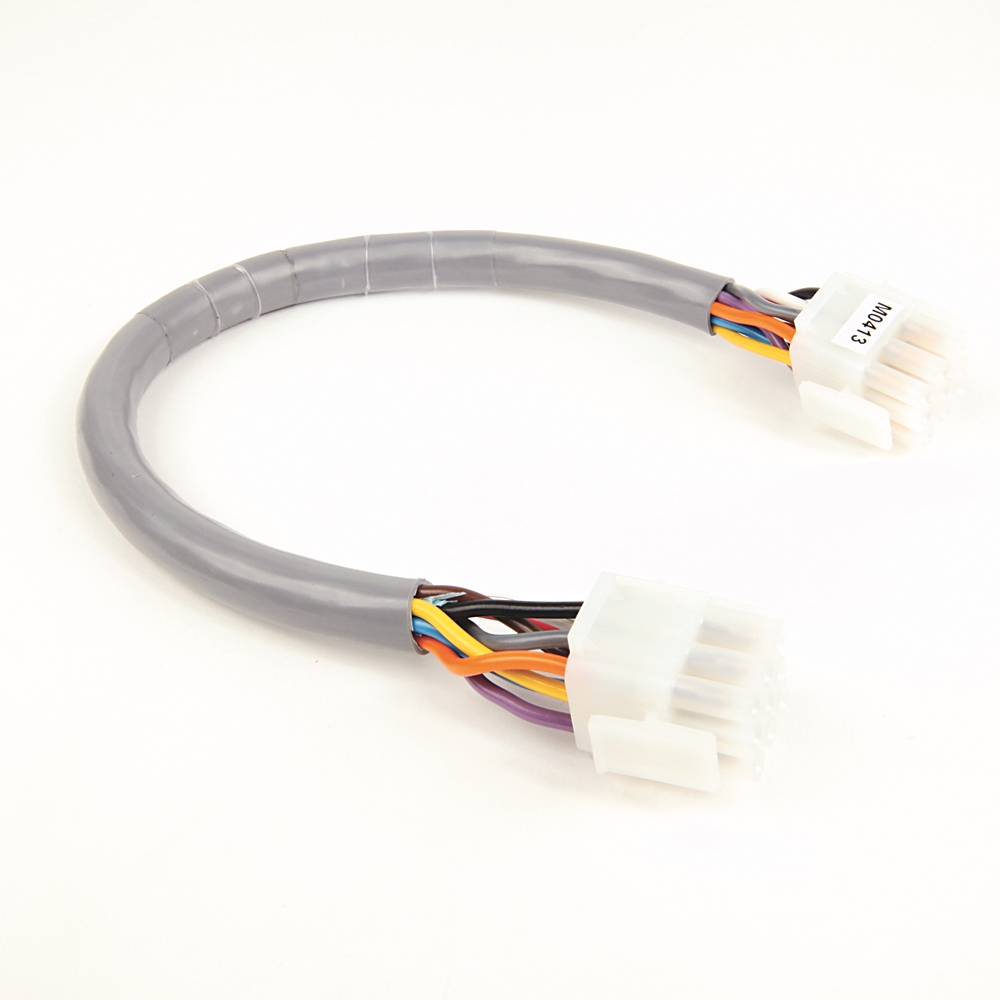

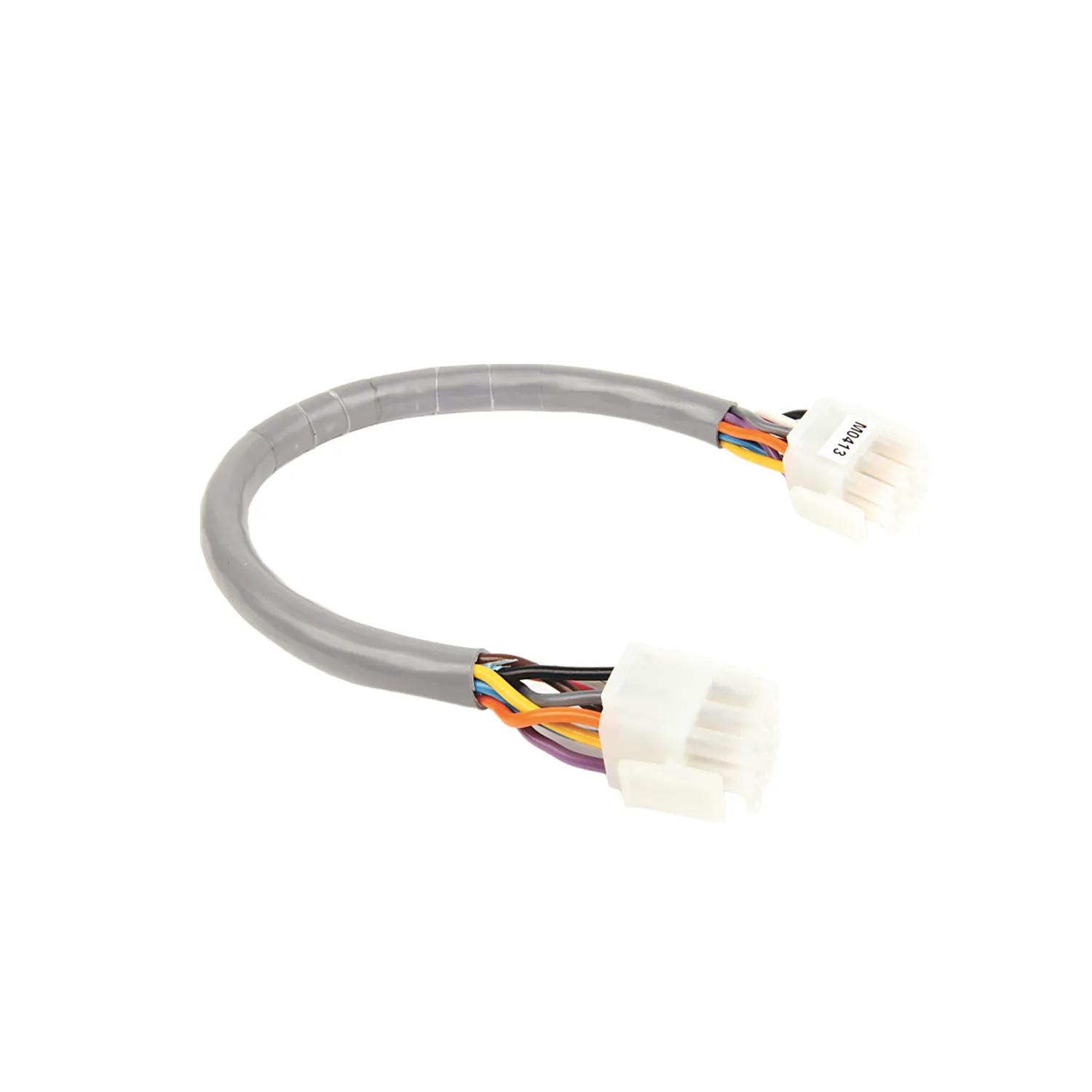

Allen-Bradley 1771-CE I/O Chassis Cable 1ft

Product Overview

The Allen-Bradley 1771-CE is an I/O chassis cable for PLC 5 systems. It measures 1 foot (0.3 meters) long. This cable uses a 9-pin design with male and female plug connectors. It works with the 1771-P2 power supply. The cable ensures a secure link between components. Its compact size fits easily in control panels. The operating temperature ranges from 0 to 60 °C. Storage can handle from -40 to 85 °C. Humidity tolerance is 5 to 95% without condensation. It operates at 50 to 60 Hz. The cable weighs about 0.48 kg. It suits various industrial environments.

Application Scenarios

Use the 1771-CE in PLC 5 control systems. It connects I/O chassis to the 1771-P2 power supply. Apply it in manufacturing plants, assembly lines, and process control. It works in automation cabinets with limited space. The cable supports reliable data and power transfer. It handles vibration and moderate temperatures. It is ideal for upgrading older PLC 5 installations. Use it in new panel builds needing short cable runs.

Technical Specifications

Physical Attributes

Length: 1 foot (0.3 meters). Weight: 1.06 pounds (0.48 kg). Connector types: male and female plug. Number of pins: 9. Compatibility: 1771-P2 power supply.

Environmental Limits

Operating temperature: 0 to 60 °C. Storage temperature: -40 to 85 °C. Humidity: 5 to 95% non-condensing. Operating frequency: 50 to 60 Hz.

Installation & Maintenance Guide

Before installation, turn off power to the system. Connect the male plug into the I/O chassis. Attach the female plug to the 1771-P2 power supply. Ensure the connectors click firmly. Route the cable away from sharp edges. Avoid kinking or bending the cable sharply. Check screws for tightness if present. Inspect the cable regularly for wear. Replace it if you see damage. Store the cable in a dry, cool place when not in use.

Packing List

1x Allen-Bradley 1771-CE I/O Chassis Cable. No additional accessories are included. The cable is ready to install.
