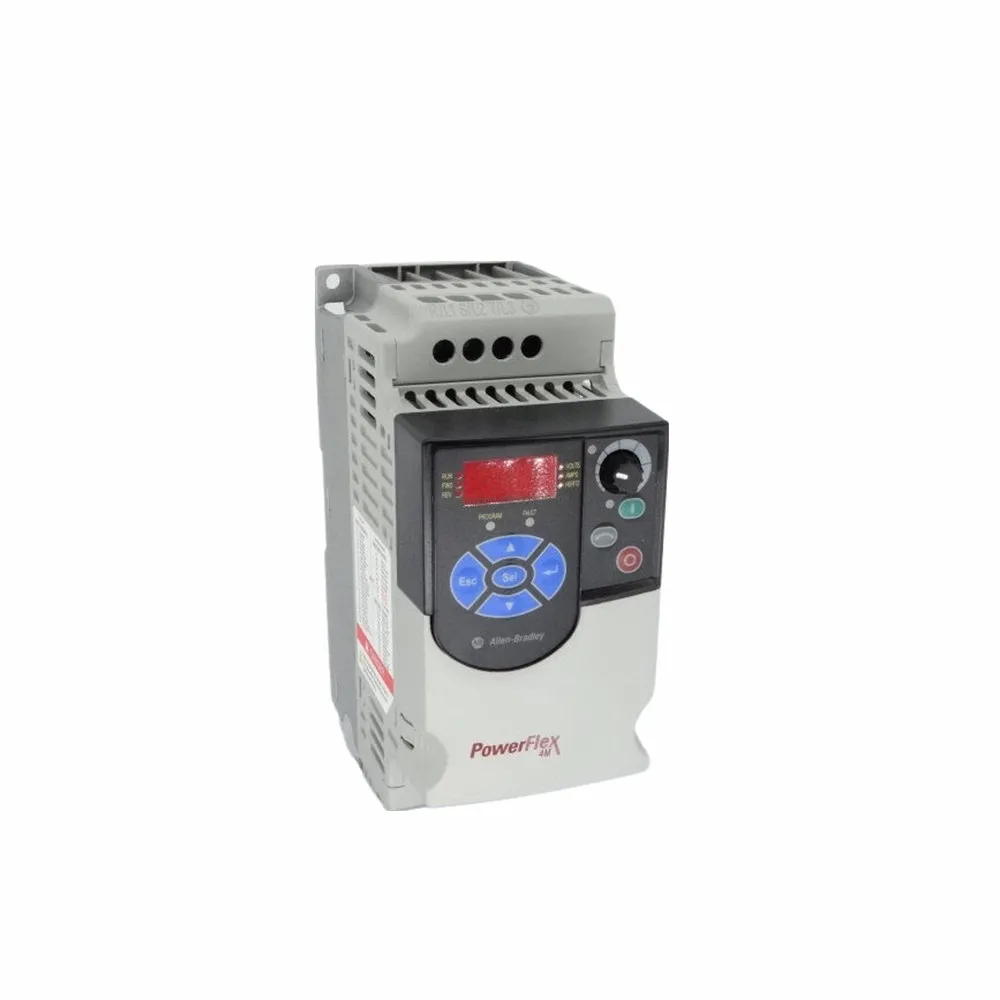

Allen-Bradley PowerFlex 4M Drive 22F-V1P6N103 0.25 HP

Product Overview

The Allen-Bradley PowerFlex 4M is a compact adjustable frequency drive. Model 22F-V1P6N103 delivers reliable performance for low-horsepower applications. This drive offers simple Volts per Hertz control. It supports a wide range of input voltages from 100 to 120V AC. The unit provides a three-phase output up to 230V AC. It is ideal for basic speed control tasks.

This drive has a power rating of 0.2 kW or 0.25 HP. Its output current is 1.6 A. The enclosure is an open type with an IP20 rating. This makes it suitable for panel mounting. The compact Frame A size saves valuable cabinet space. It weighs only 1.6 kg.

Application Scenarios

This drive works well for many simple machines. Use it for fans and small pumps. It is great for conveyors and mixers. The 22F-V1P6N103 fits packaging equipment well. It also works for material handling systems. Any application needing basic variable speed will benefit. The drive is easy to install and configure.

Technical Specifications

Input voltage is 100 to 120V AC single phase. Input current is 6.4 A. Output voltage is 0 to 230V AC three phase. Output current is 1.6 A. Output power is 0.2 kW. Frequency output ranges from 0 to 400 Hz. Efficiency is 97.5 percent.

It provides five discrete inputs. It has one discrete output with Form C contacts. It includes one analog input for 0-10VDC or 0-20mA. The control method is Volts per Hertz. Overload protection is 150 percent for 60 seconds. It also handles 200 percent for 3 seconds.

Installation & Maintenance Guide

Mount the drive on a 35 mm DIN rail. The dimensions are 72 x 174 x 136 mm. Ensure proper airflow around the unit. Do not block the ventilation slots. Use copper conductors rated for 75 degrees Celsius. Follow all local electrical codes.

Regular maintenance is minimal. Keep the drive clean and dry. Check all connections periodically. Verify the cooling fan operates freely. The built-in RS485 port allows for easy communication. Optional protocols include EtherNet/IP and DeviceNet.

Packing List

One Allen-Bradley PowerFlex 4M drive. One quick start guide. One installation manual. Mounting hardware is included. No filter is included with this model. It ships without a CE compliant filter.
