CompactLogix Controller 1769-L27ERM-QBFC1B Allen-Bradley

Product Overview

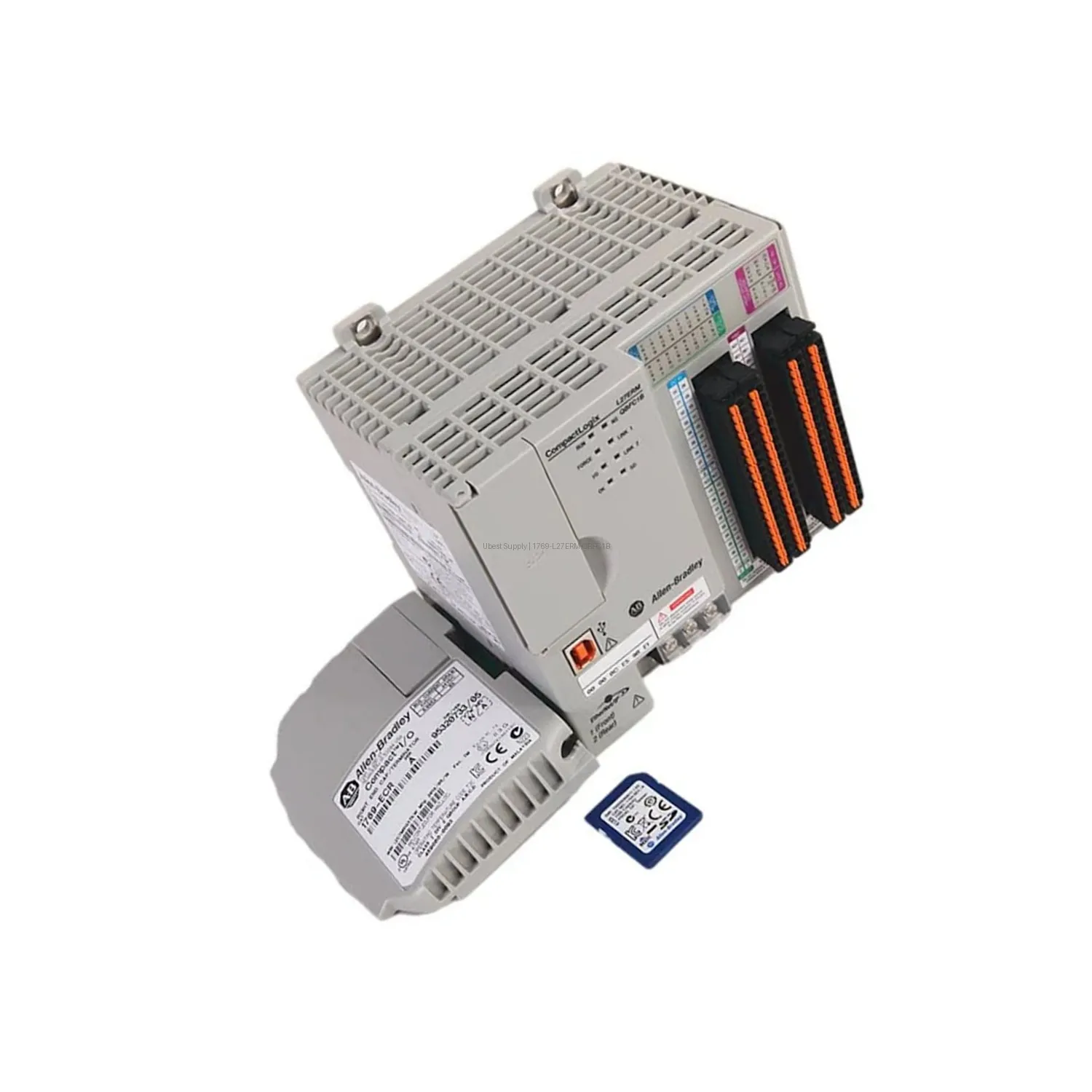

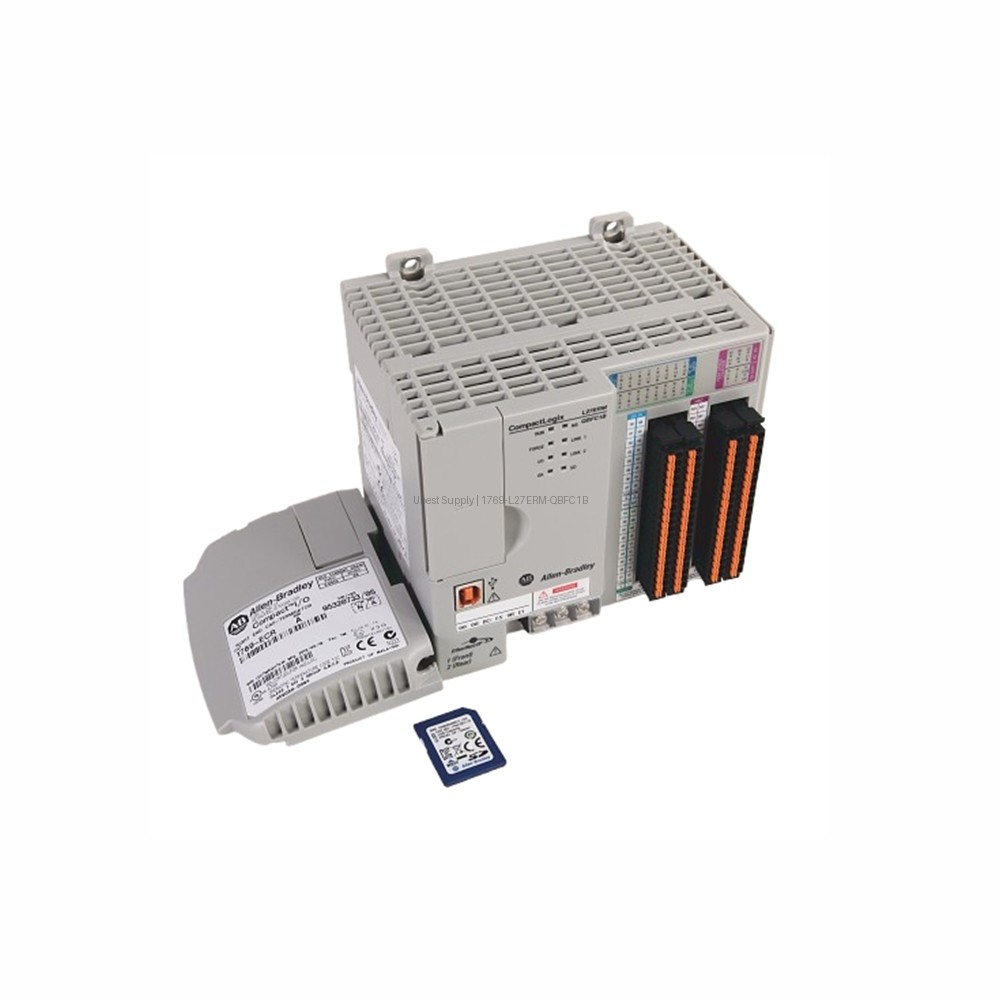

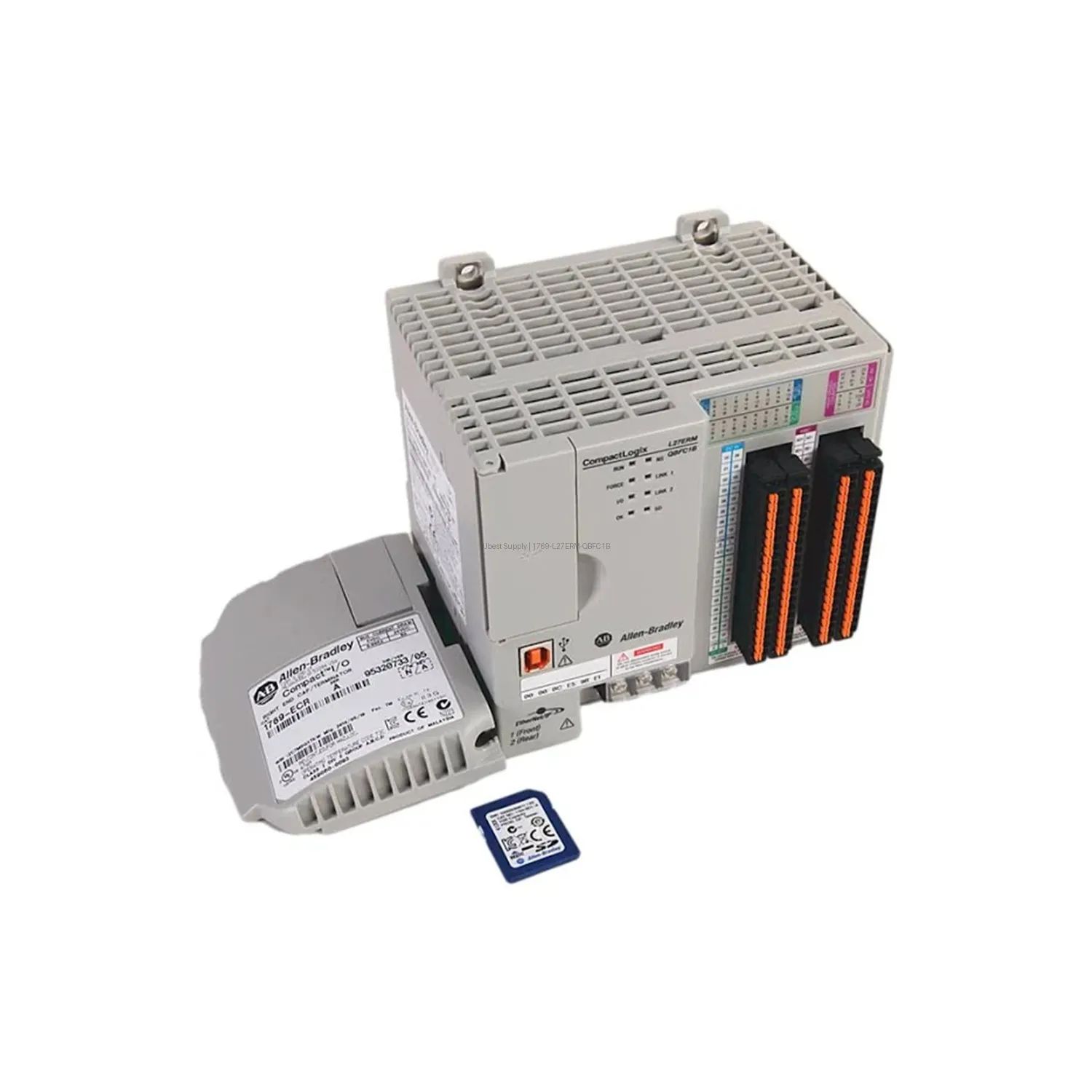

The Allen-Bradley 1769-L27ERM-QBFC1B is a CompactLogix 5370 L2 controller. It offers 16 embedded inputs and 16 embedded outputs. This unit supports 16 axes over Ethernet. It runs 32 tasks and 100 programs per task. The controller uses a 24 VDC power supply. It includes 4 analog inputs and 2 analog outputs. This model also has 4 high-speed counter outputs. It mounts on a DIN rail for easy setup.

Application Scenarios

This controller works well in factory automation. It manages packaging lines and material handling. It controls assembly machines and robotic cells. The unit handles process control tasks. It fits in both small and medium systems. Engineers use it for motion control projects. It works with many Rockwell devices.

Technical Specifications

The 1769-L27ERM-QBFC1B has two Ethernet ports. It supports the Ethernet I/P protocol. The analog inputs accept thermocouples and RTDs. It reads voltage, current, and resistance signals. The analog outputs produce voltage from -10V to +10V. They also produce current from 0 to 20 mA. The unit programs with ladder logic and structured text. It also uses function block and SFC languages. The wire size ranges from 22 to 14 AWG solid. Stranded wire ranges from 22 to 16 AWG.

Installation & Maintenance Guide

Mount the controller on a standard DIN rail. Use copper wire rated for 90 degrees Celsius. Connect the terminal block 1769-RTBN18. Follow the wiring diagram for inputs and outputs. Check all connections before powering on. Keep the unit in a clean, dry area. Do not block the ventilation slots. Replace the terminal block if damaged.

Packing List

The package includes one CompactLogix controller. It includes a terminal block. It also includes a quick start guide. The shipping weight is 3 pounds. The box size is 11 x 8 x 6 inches. We ship via Fedex, UPS, or DHL.
