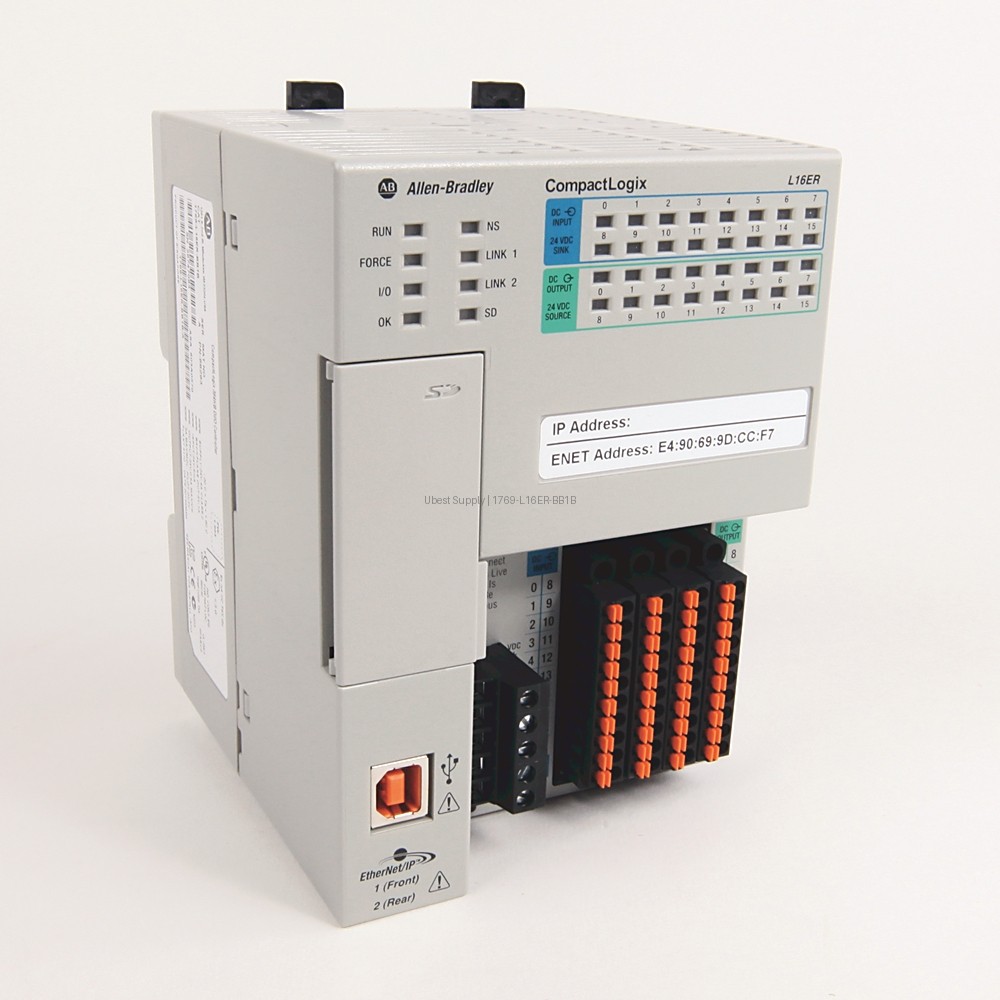

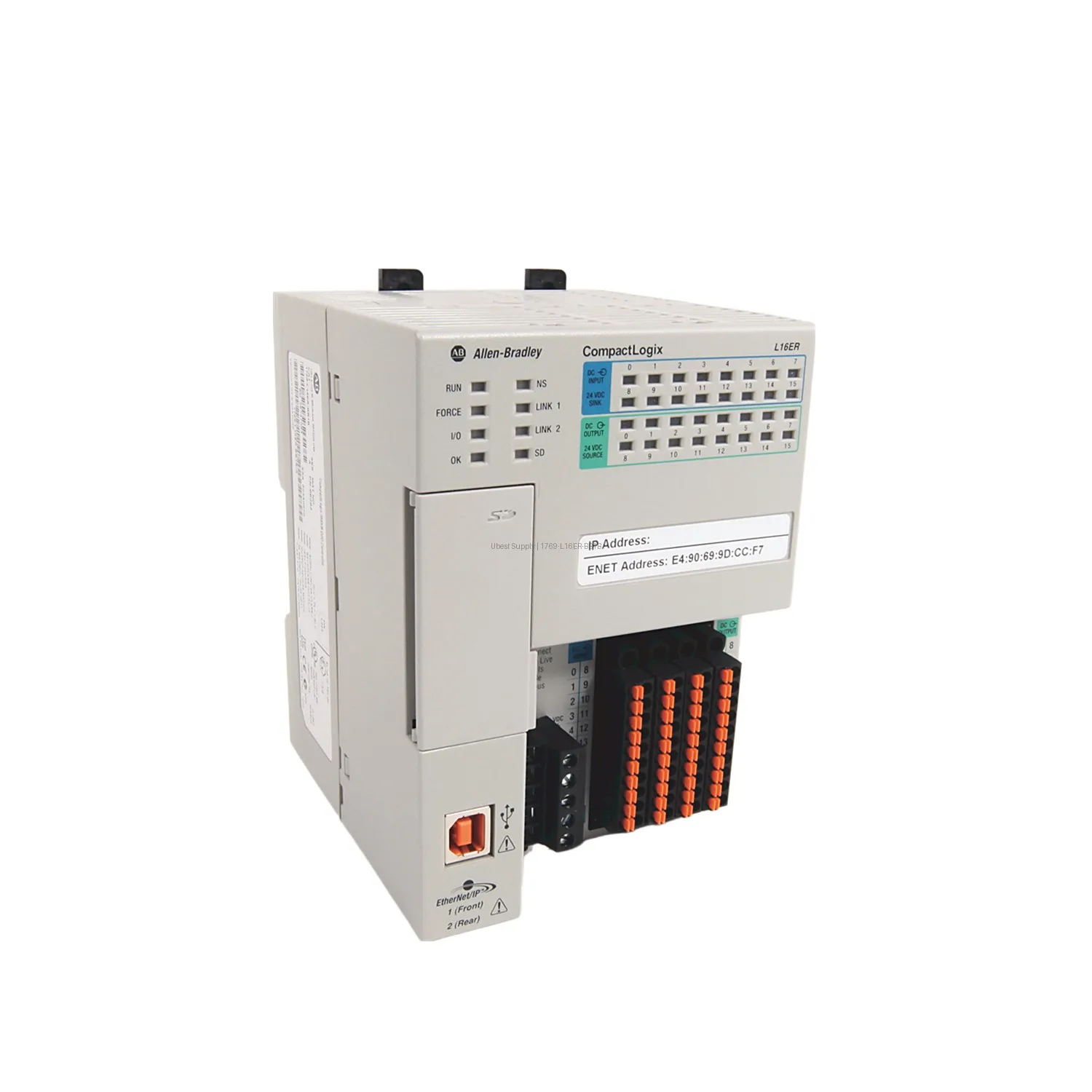

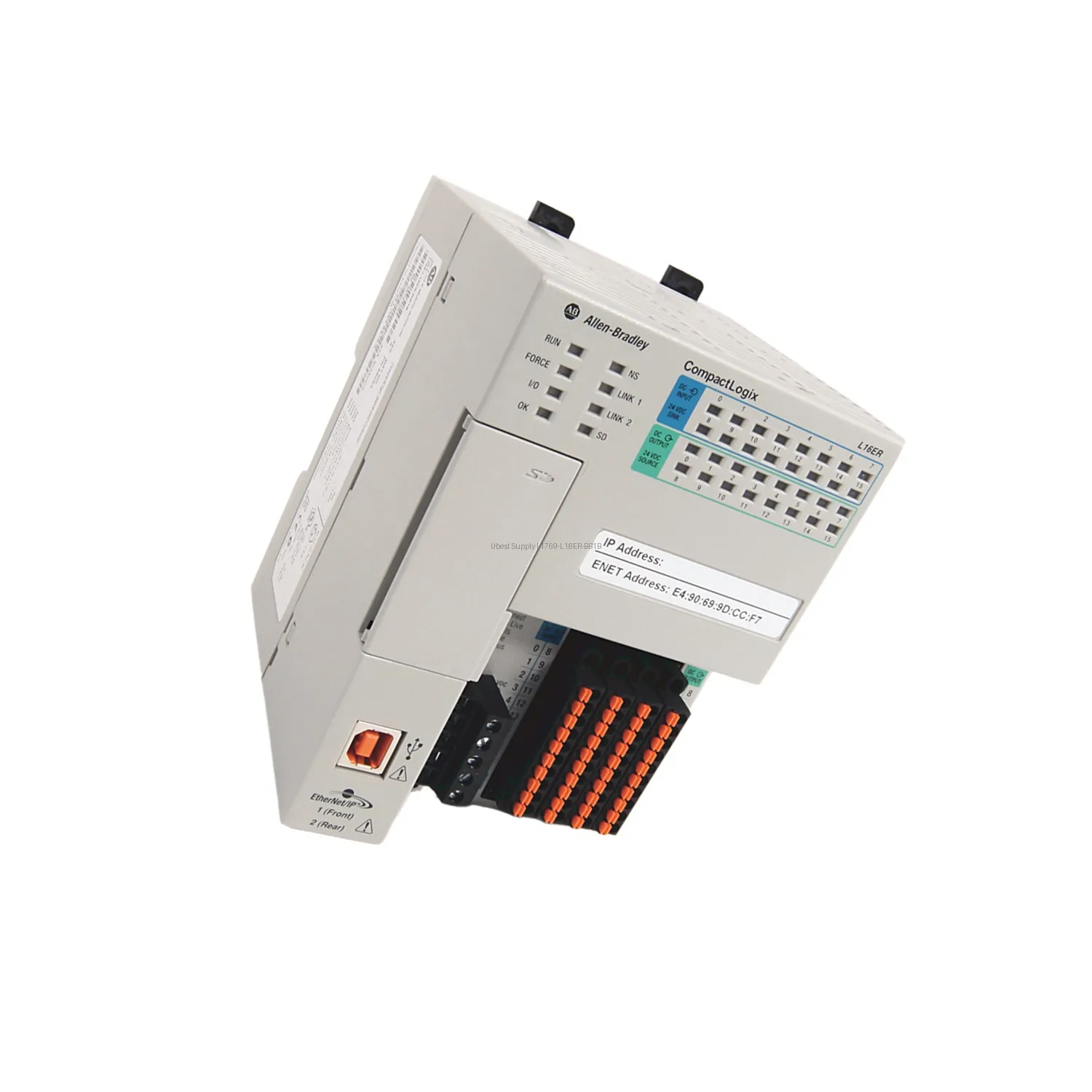

CompactLogix PLC Controller Allen-Bradley 1769-L16ER-BB1B

Product Overview

The Allen-Bradley 1769-L16ER-BB1B is a CompactLogix 5370 L1 controller. This processor module operates on 24 Volts DC. It features 384 KB of memory for your control logic. The module includes 16 embedded 24 VDC sink inputs. It also has 16 embedded 24 VDC source outputs. This controller supports up to 6 I/O modules. It does not support Point I/O banks. The module uses a DIN Rail mounting style.

Application Scenarios

This controller is ideal for small to medium automation tasks. Use it in packaging, material handling, or assembly machines. It works well for standalone machine control. The embedded I/O reduces the need for extra modules. Engineers use it for simple motion and process control. It fits in applications with limited panel space. The Ethernet port enables easy connection to plant networks.

Technical Specifications

The module has two Ethernet I/P communication ports. It also has one USB port for programming. It supports a maximum of 32 tasks. Each task can hold up to 100 programs. The controller has 256 total connections. It supports 120 TCP I/P connections. The module draws 1A at 5V DC. It draws 3A at 24V DC for field power. The power dissipation is 11.5 W. It ships with a 1 GB SD card. The card can be expanded to 2 GB.

Installation & Maintenance Guide

Mount the module on a standard DIN rail. Use copper wire rated for 90 degrees Celsius. Wire size can be 22 to 14 AWG solid. The recommended wire size is 30 to 12 AWG. Use the 1769-RTBN18 replacement terminal block. Each terminal accepts one or two wires. Ensure proper grounding for reliable operation. Do not exceed the maximum current draw. Keep the module in a clean, dry environment.

Packing List

1 x Allen-Bradley 1769-L16ER-BB1B Controller
1 x 1 GB SD Card
1 x Terminal Block (1769-RTBN18)
1 x User Manual
Shipping via Fedex, UPS, or DHL.
