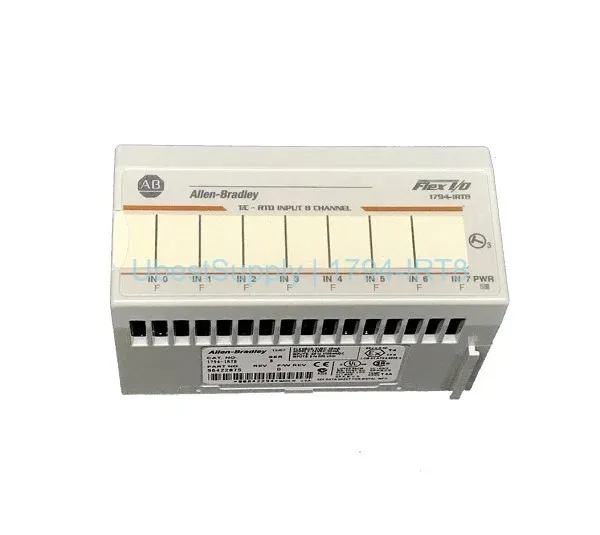

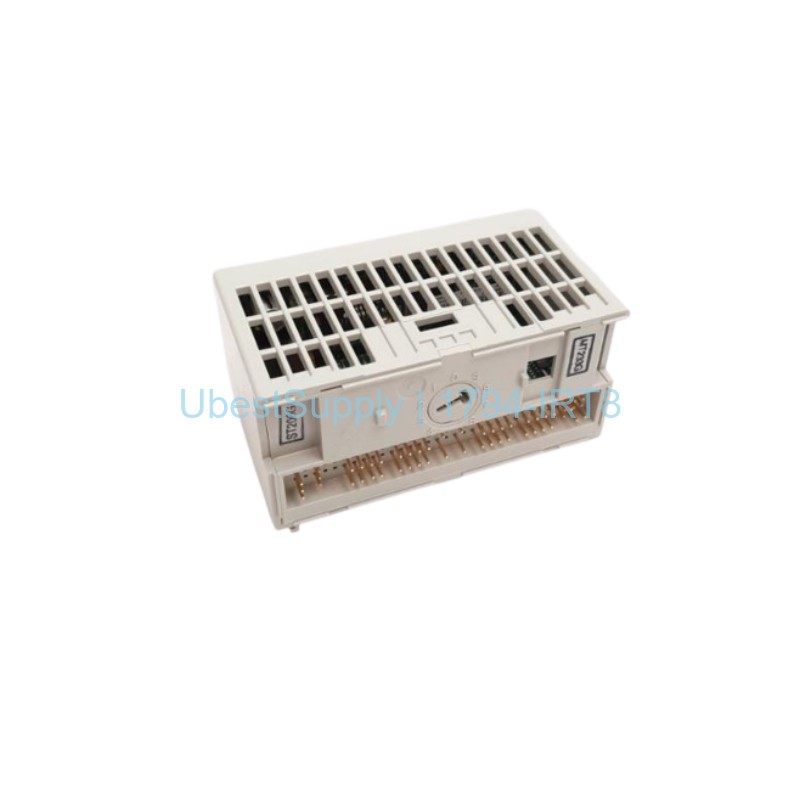

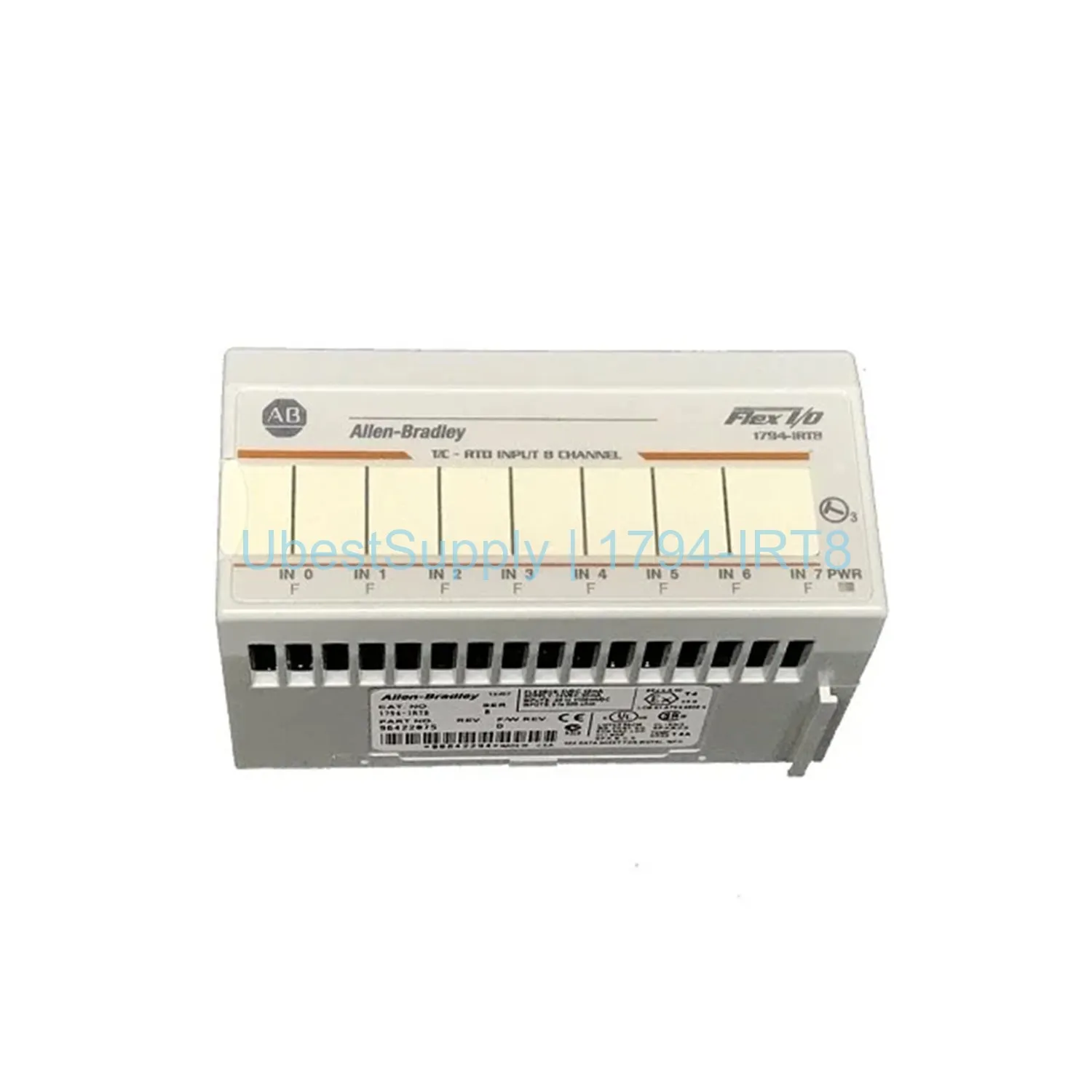

Flex I/O RTD/Thermocouple Module Allen-Bradley 1794-IRT8

Product Overview

The Allen-Bradley 1794-IRT8 is a Flex I/O combination module. It supports both RTD and thermocouple sensors. This module has eight channels in two groups. Each group has four channels. The 1794-IRT8 offers 14-bit resolution. It provides multiple data formats. These include °C, °F, and °K. You can also use raw counts. Diagnostic functions include open circuit detection. The module detects open inputs within two scans. It has overvoltage capability up to 15V DC. This module works with 24V DC power. It mounts on a DIN rail.

Application Scenarios

This module is ideal for temperature monitoring. Use it in industrial processes. It works with RTD and thermocouple sensors. Applications include furnaces, ovens, and pipelines. It suits chemical plants and refineries. The module performs well in harsh environments. Its diagnostic features ensure reliable operation.

Technical Specifications

General

Resolution: 14 bits. Accuracy: 0.05% of full range in mV mode with filtering. Hardware only: 0.10% of full range. System throughput varies by mode (7.4 ms to 10.8 ms).

Input Ranges

Nominal input: -40 to 100 mV DC for thermocouples. 0 to 325 mV for RTDs. Data formats include °C, °F, °K, -32767 to +32767, 0 to 65535, 0 to 5000 ohms, and -4000 to +10000 mV.

Environmental

Operating temperature: 0 to 55 °C (32 to 131 °F). Storage temperature: -40 to 85 °C. Vibration: 5g at 10 to 500 Hz. Shock: 30 g.

Indicators

One green power LED. Eight red open input LEDs.

Installation & Maintenance Guide

Install the module on a DIN rail. Connect to a compatible terminal base. Use the recommended wiring. For thermocouples, use wires specified by the manufacturer. For millivolt signals, use Belden 8761 wire. Power the module with 24V DC. The operating temperature is 0 to 55°C. Check LED indicators for status. Replace faulty cold junction compensators as needed.

Packing List

The package includes one 1794-IRT8 module. It also includes two cold junction compensators. A user manual is provided. The terminal base is ordered separately.
