ICS Triplex T8312 Expander Interface Adapter for Control Systems

Product Overview

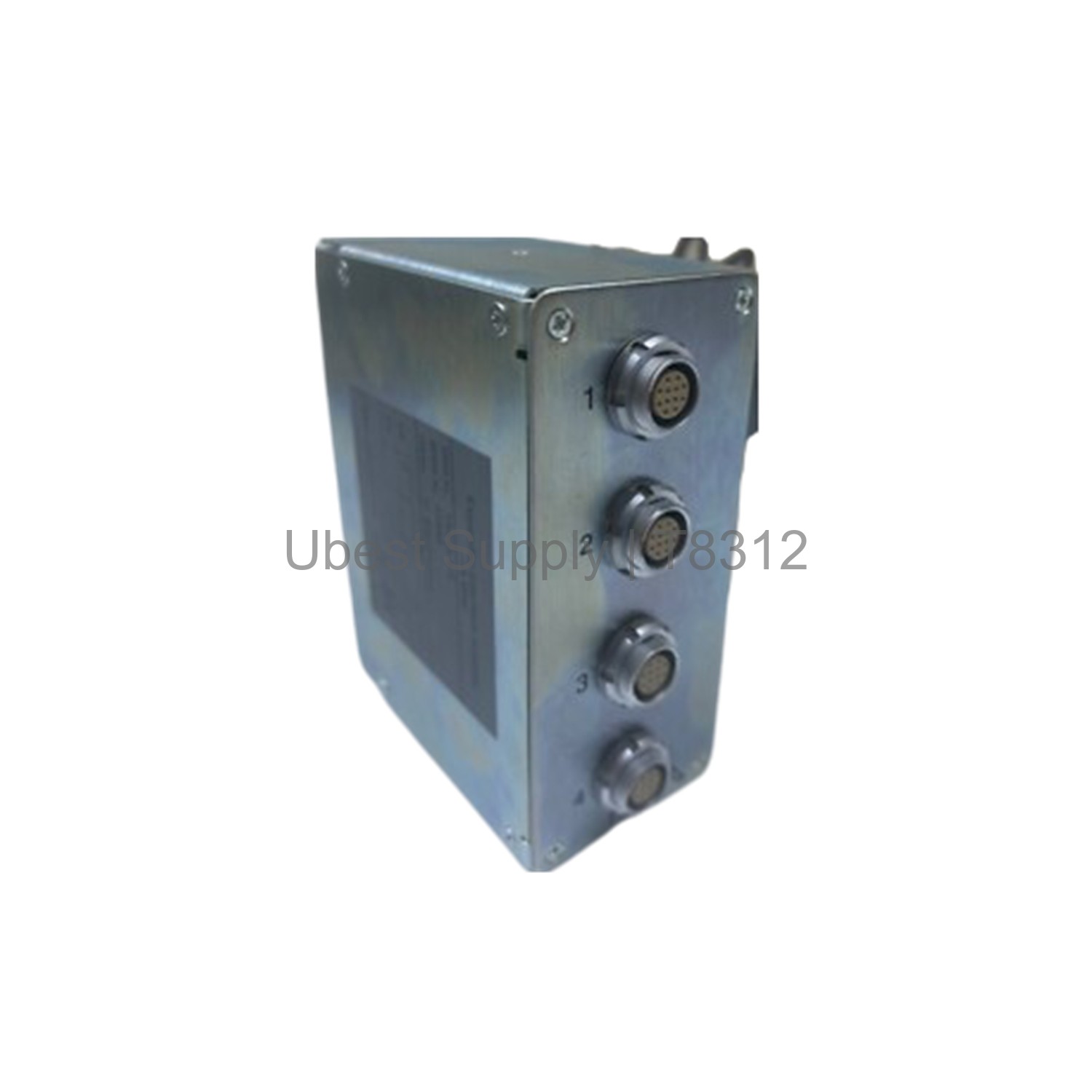

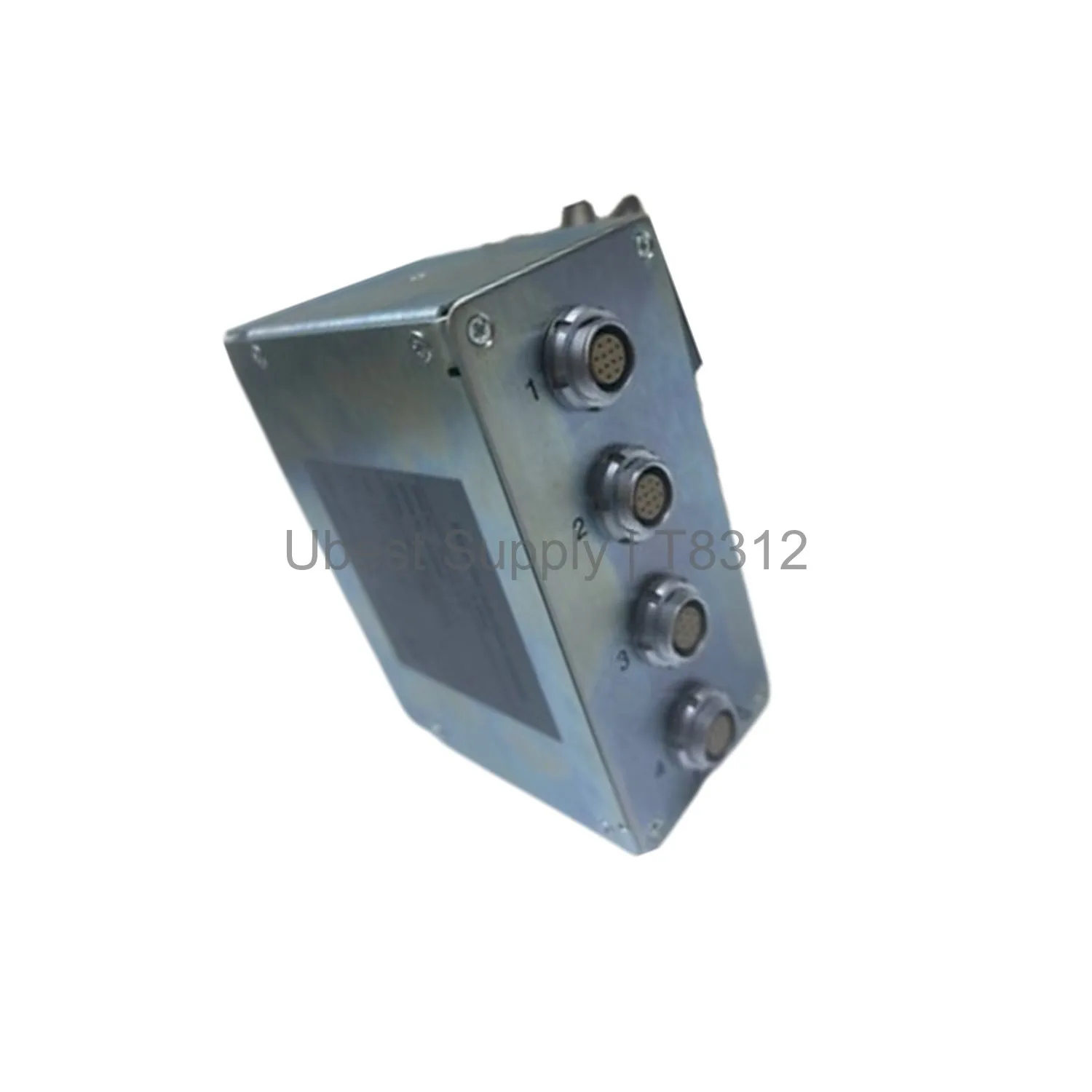

The ICS Triplex T8312 Expander Interface Adapter connects expander interface modules in a controller chassis to processor interface modules in an expander chassis. This device ensures reliable data transfer between chassis. It is a key part of large-scale control system architectures.

The T8312 comes in two models. The T8312/4 supports up to four expander chassis. The T8312/7 supports up to seven expander chassis. Both models use a simple DIP switch setup for chassis ID assignment.

Application Scenarios

This adapter is ideal for expanding I/O capacity in industrial control systems. Use it in oil and gas facilities, power plants, and chemical processing units. It works well in any environment needing centralized control with remote I/O racks.

Operators use it to add more input and output points without changing the main controller. It supports both ordinary and hazardous location installations. The device is certified for ATEX and IECEx environments.

Technical Specifications

The adapter weighs only 0.65 kg (1.43 lbs). It requires no external power supply. The DIP switch sets the controller chassis to ID 1. Expander chassis IDs range from 2 to 8 for the first set.

For additional chassis, use another adapter. Set its IDs from 2 to 8 in hardware. Then assign them as IDs 9 to 15 in the software. This method allows for large system expansions.

Installation & Maintenance Guide

First, set the DIP switch on the adapter. Set the controller chassis to ID 1. Then set each expander chassis to a unique ID from 2 to 8. Insert the adapter into the correct slot in the chassis.

After hardware setup, configure the system software. Assign the correct IDs to each chassis. No regular maintenance is needed. Just keep the unit clean and free from dust.

Packing List

Each order includes one ICS Triplex T8312 Expander Interface Adapter. It also includes a quick start guide. No cables or mounting brackets are included. Order those separately if needed.

We ship all orders via FedEx, UPS, or DHL. Choose your preferred carrier at checkout. Tracking information is provided after shipment.
