Memory Module Adapter Allen-Bradley 1747-M15 for SLC 500

Product Overview

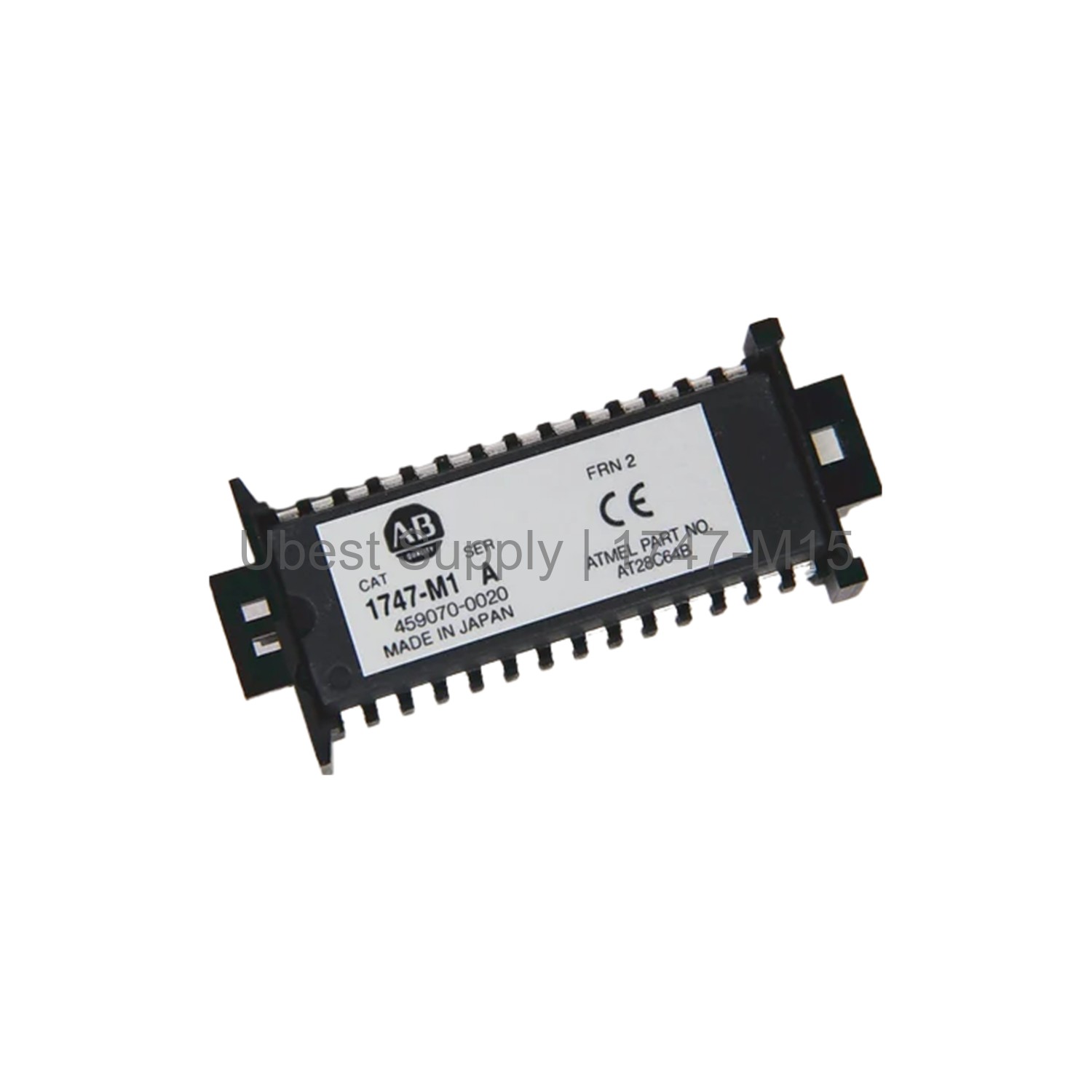

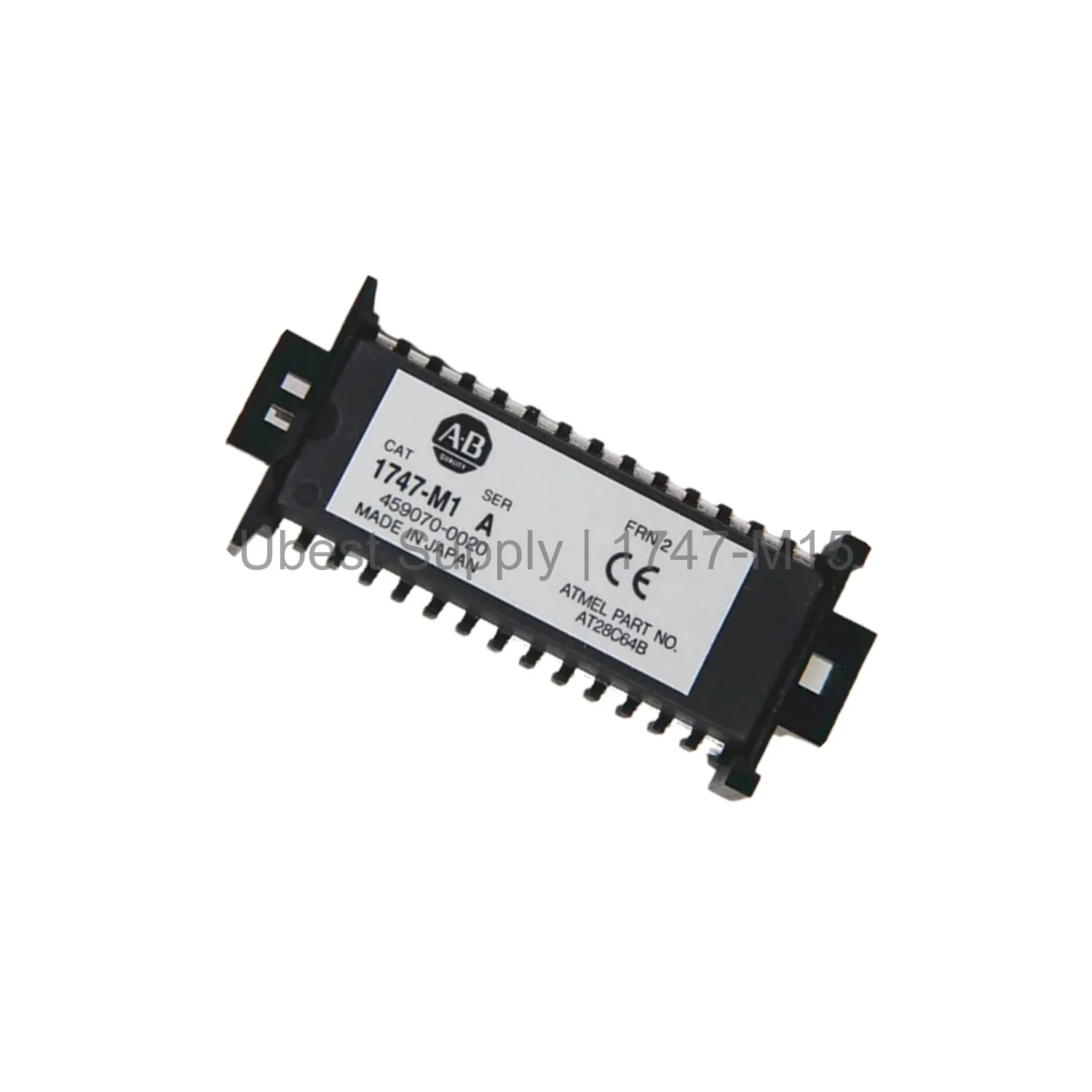

The Allen-Bradley 1747-M15 is a memory module adapter socket. It belongs to the SLC 500 platform. This device holds a flash EEPROM memory module. It works with SLC 5/03, 5/04, and 5/05 processors. The adapter socket ensures non-volatile program storage. It prevents data loss during battery failure.

Application Scenarios

Use this adapter with PROM programmers. It programs and erases memory modules in industrial settings. The socket fits into a zero insertion force (ZIF) socket. It supports the 1747-M13 memory module. Common applications include backup for PLC programs. It is ideal for environments needing frequent updates. The adapter works with multiple SLC processor versions.

Technical Specifications

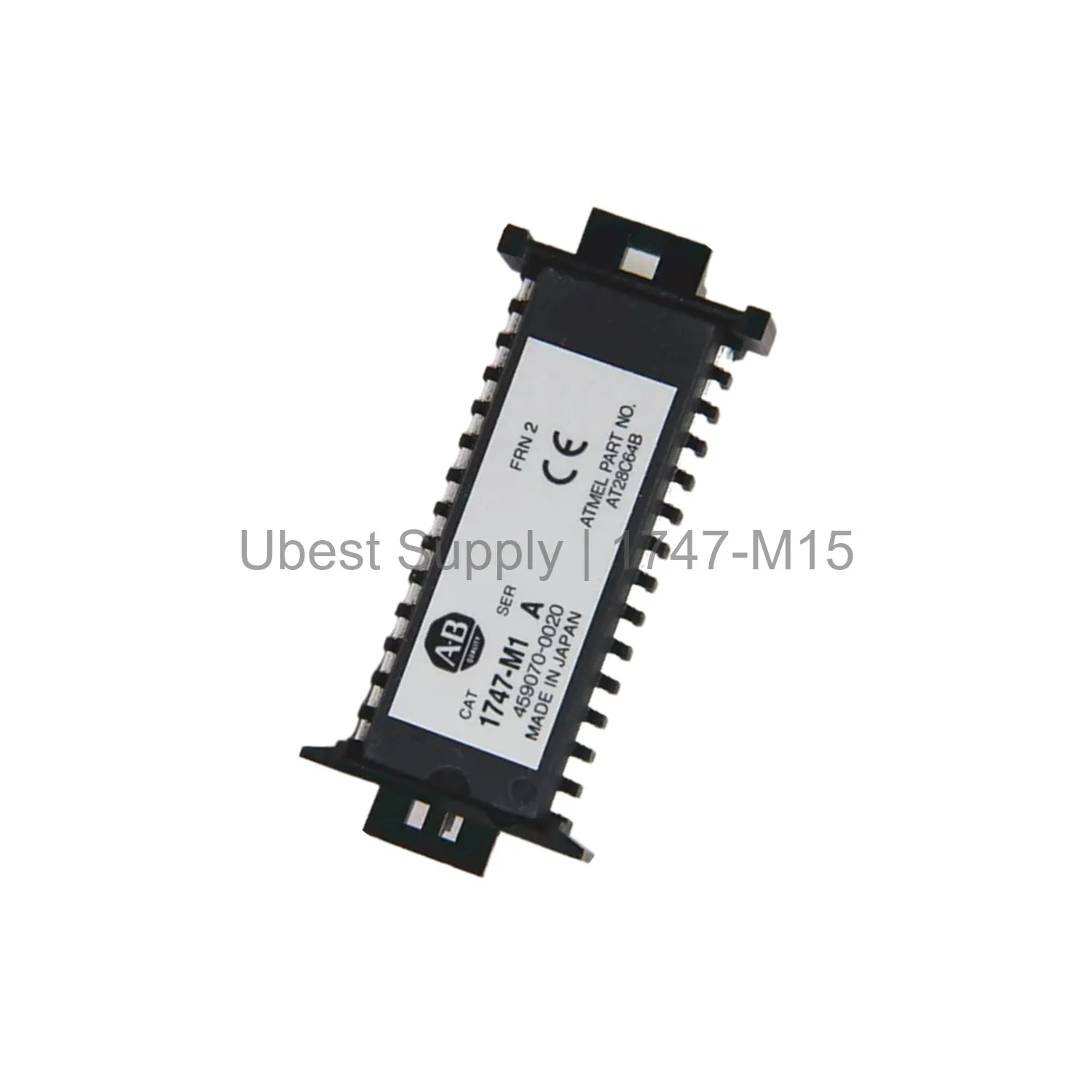

Brand: Allen-Bradley (Rockwell Automation)
Part Number: 1747-M15
Memory Type: Flash EEPROM, 64 kilobytes
User Memory: 64,000 words
Program Scan Time: 0.9 milliseconds
I/O Scan Time: 0.225 milliseconds
I/O Chassis: 3 chassis, 30 module slots
Communication: Ethernet, RS-232
Operating Temperature: 0 to 60°C
Storage Temperature: -40 to 85°C
Humidity: 5% to 95% non-condensing
Shock: 1G at 5-2000 Hz

Installation & Maintenance Guide

Handle the 1747-M15 with care. It is sensitive to electrostatic discharge. Wear a grounded wrist strap before handling. Turn off the controller during installation. The adapter has keyed connectors to prevent misalignment. Use only a series B 1747-M15 with the 1747-M13 module. Check the jumper settings on the processor board. Store the adapter in a dry, static-free environment. Clean with a soft, dry cloth only. Avoid exposure to condensation.

Packing List

1 x Allen-Bradley 1747-M15 Memory Adapter Socket
1 x User Manual
1 x Anti-static bag
Note: Memory module sold separately.

Shipping is via FedEx, UPS, or DHL. Contact us for expedited options.
