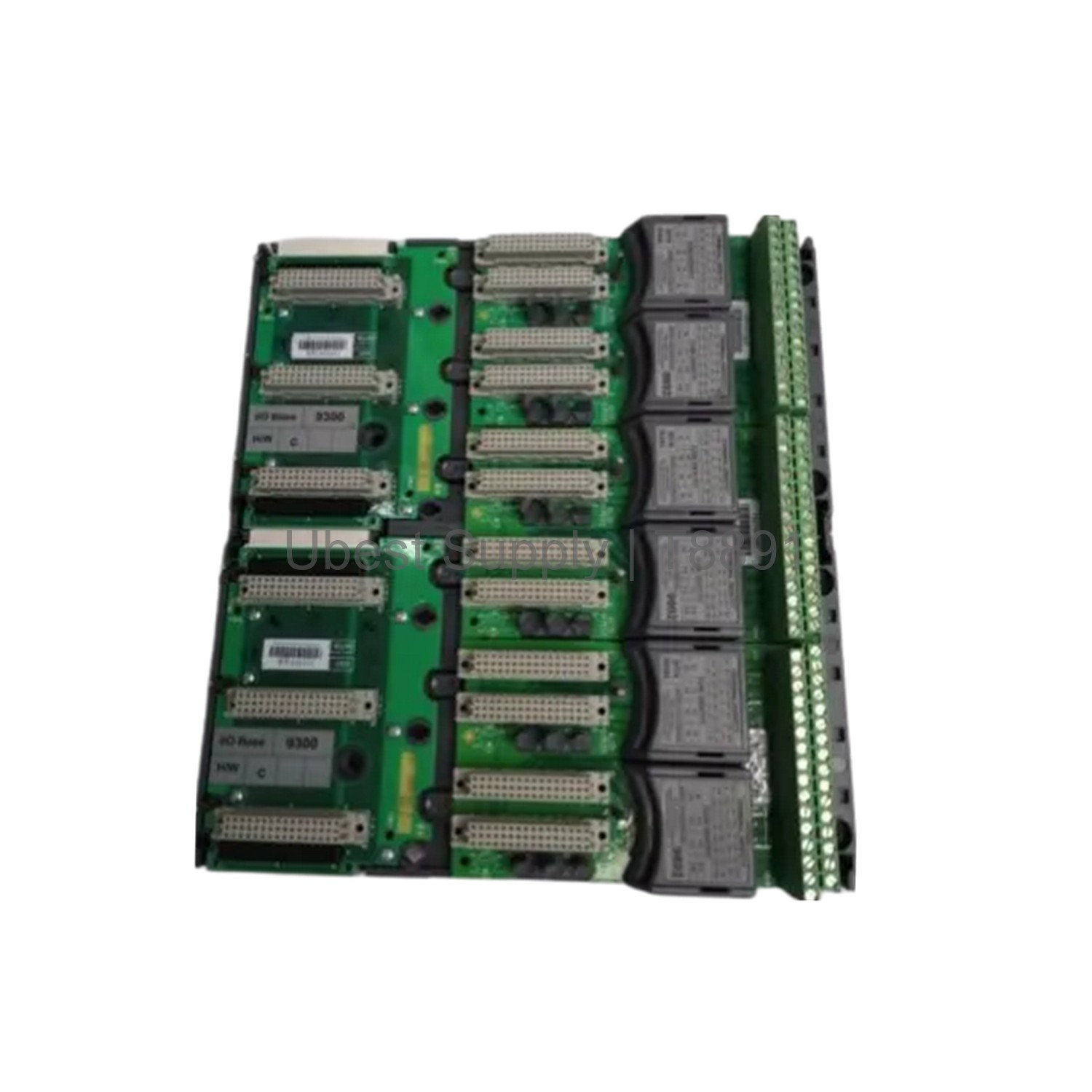

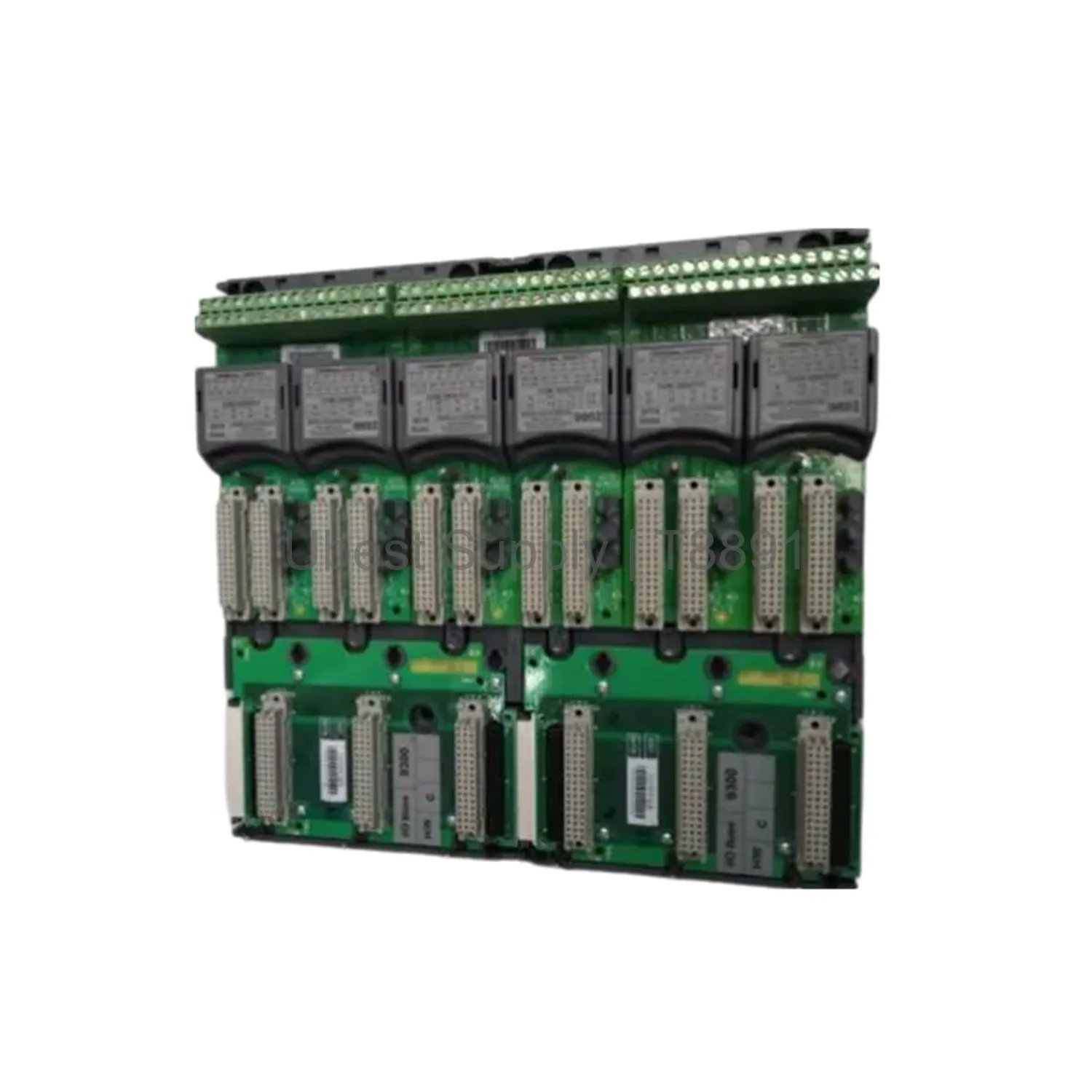

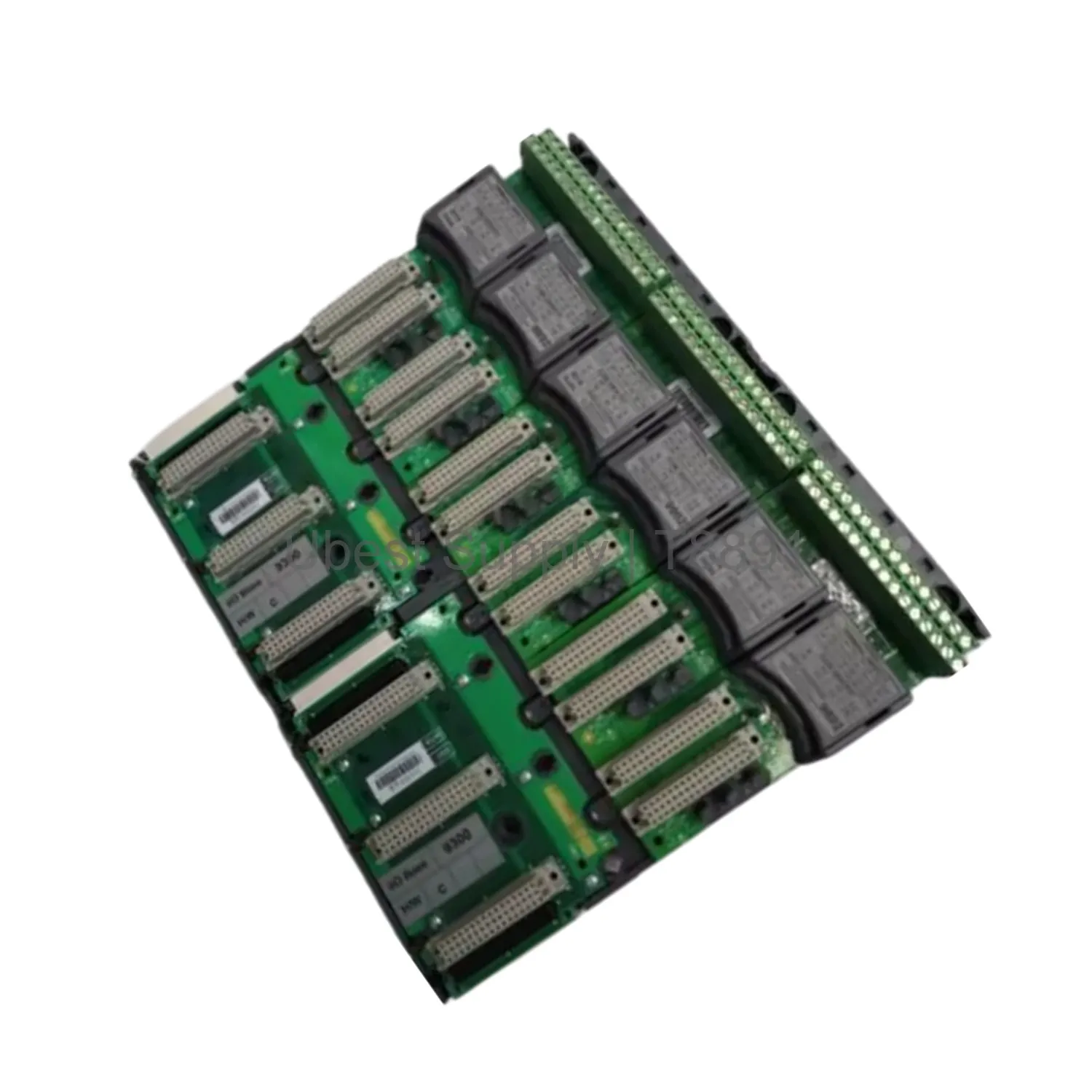

Output Module ICS Triplex T8891 Speed Output Field Terminal Assy

Product Overview

The ICS Triplex T8891 is a Speed Output Field Terminal Assy (SOFTA). It works with the Trusted TMR System. This unit gets power from the T8442 supply. It handles 3A at 120Vac or 2A at 30Vdc. The screw clamp terminal block makes wiring simple. Use it for reliable speed output in safety systems.

Application Scenarios

Use the T8891 in industrial safety shutdown systems. It fits turbine control and emergency stop circuits. The terminal assy works well in harsh factory floors. It supports high-speed output for critical machinery. Many users deploy it in oil and gas plants.

Technical Specifications

Supply ratings come from T8442. Input/output ratings are 3A at 120Vac. It also supports 2A at 30Vdc. The RA part number is 3AX185. Terminal block type is screw clamp. Torque setting is 0.5 N.m. Wire size range is 30 to 12 AWG. That equals 0.05 to 2.5 mm². Only one cable termination is allowed per terminal block.

Installation & Maintenance Guide

Mount the T8891 securely in your rack. Connect power from the T8442 supply. Use a screwdriver to tighten terminals to 0.5 N.m. Strip wires to fit 2.5 mm² max. Do not exceed one wire per terminal. Check connections regularly for tightness. Replace if any terminal damage appears.

Packing List

One ICS Triplex T8891 Speed Output Field Terminal Assy. One screw clamp terminal block. One set of mounting screws. No additional cables included. Ship via Fedex, UPS, or DHL.
