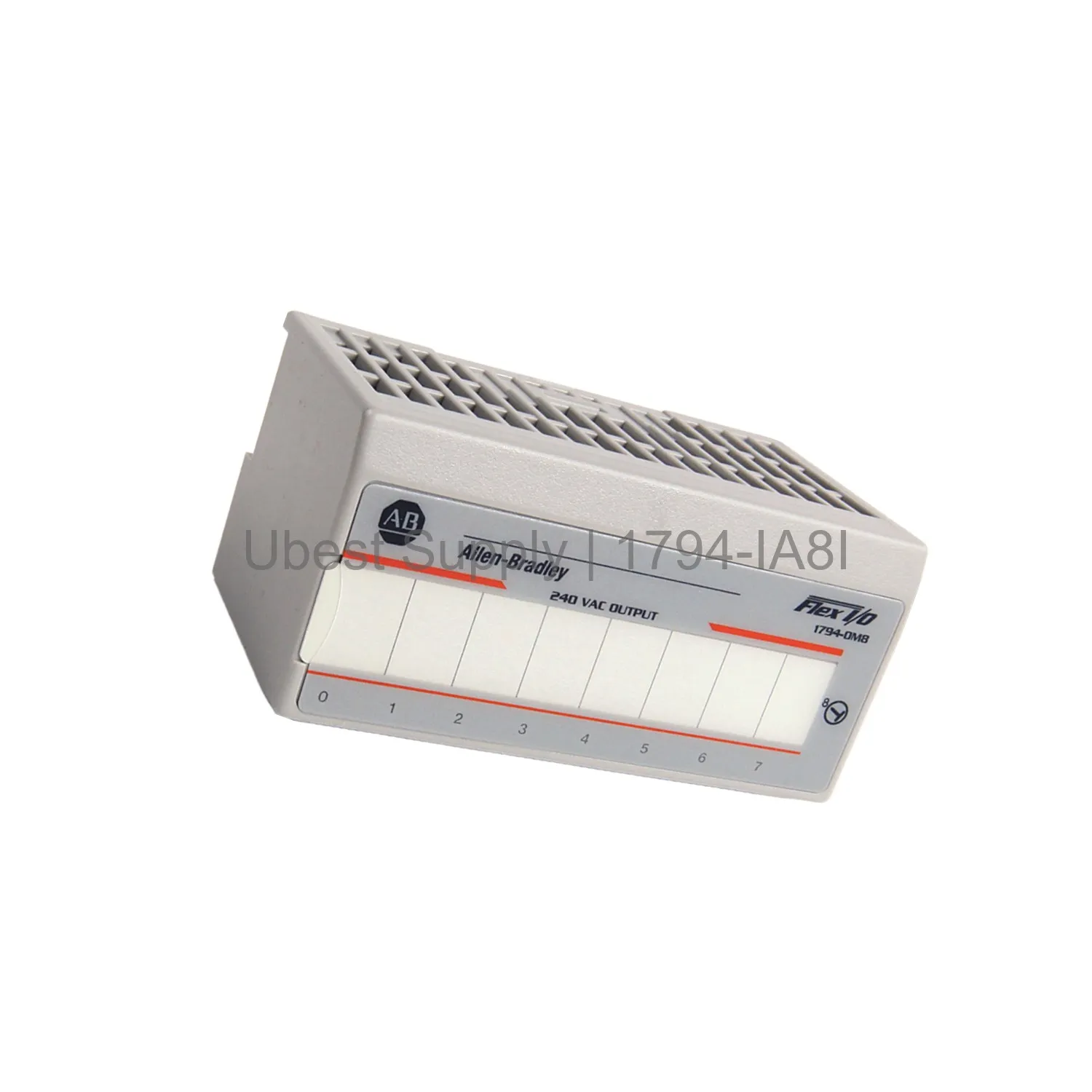

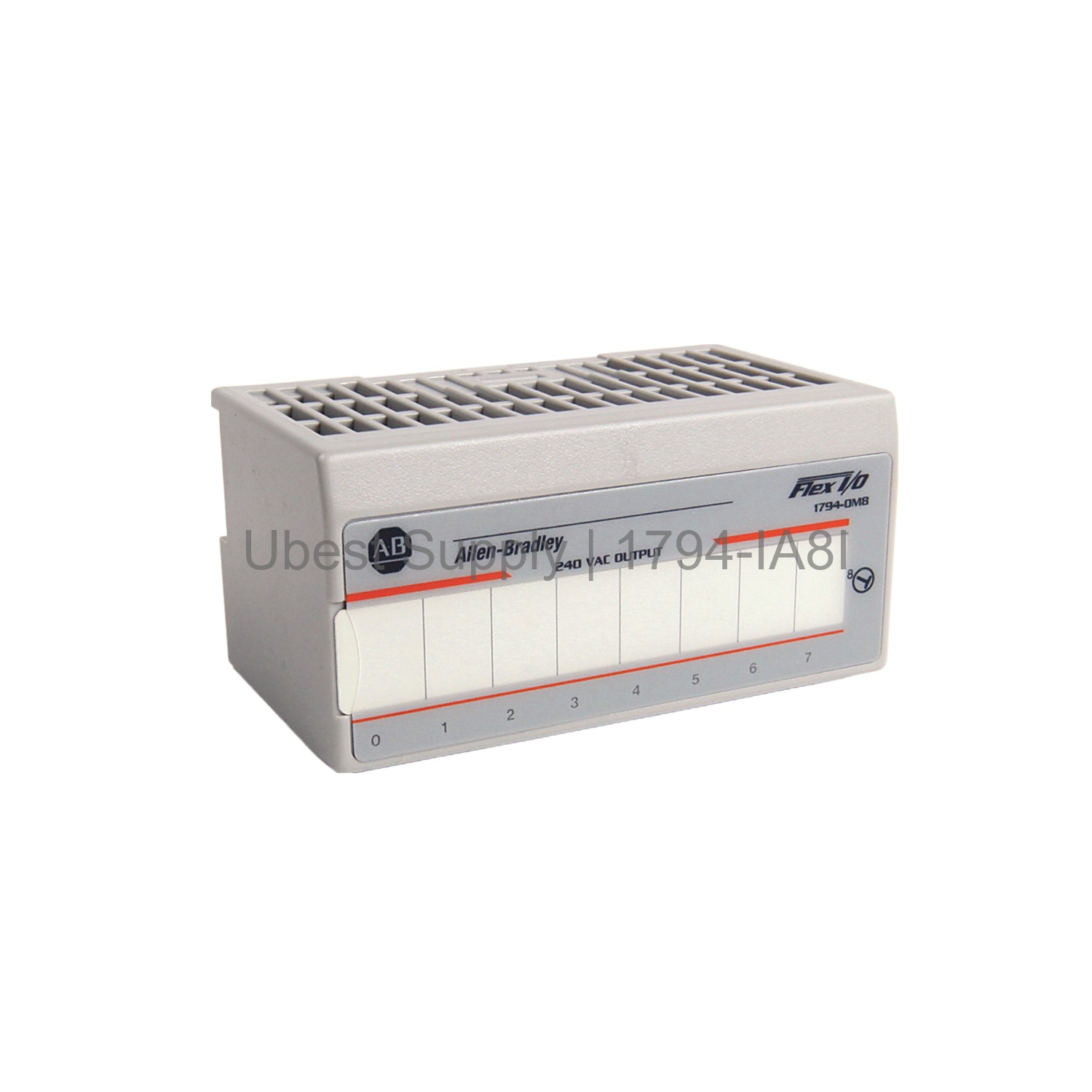

Allen-Bradley 1794-IA8I Digital Input Module 120V AC

Product Overview

The Allen-Bradley 1794-IA8I is a Flex I/O digital AC input module. It has 8 isolated input points. The module works with 120V AC nominal voltage. It is part of the Rockwell Automation 1794 series. This module connects field devices through a terminal base unit. You can remove or insert it with power on. That saves time and avoids system restarts. The 1794-IA8I uses 16 yellow LEDs for channel status. It supports ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O.

Application Scenarios

This module is ideal for motor control centers. It monitors control transformers. Use it in industrial automation systems. It works in extreme environments with XT versions. The isolated inputs reduce noise interference. Applications include discrete manufacturing and process control. The module fits in flexible I/O racks. It handles high-voltage AC signals reliably.

Technical Specifications

Inputs: 8 isolated AC points. On-state voltage min 65V AC, max 132V AC. On-state current min 7.1mA, max 14.32mA. Off-state voltage max 43V AC, off-state current min 2.9mA. Nominal input current 12 mA at 120V AC. Flexbus current 30mA at 5V DC. Power dissipation 4.5W at 132V AC max. Input filter: off-to-on 8.4ms, on-to-off 26.4ms. Operating temperature 0 to 55°C. Relative humidity 5 to 95% noncondensing. Protection rating IP20. Mounting on DIN rail. Compatible terminal bases: 1794-TBN, 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBKD.

Installation & Maintenance Guide

Mount the 1794-IA8I on a DIN rail. First attach the terminal base. Align the hook under the adapter. Slide the module tight against the adjacent unit. Push until it locks. Connect I/O wires to the terminal strips. Use screw clamp terminals with torque 0.56-0.79 Nm. The module supports daisy-chaining. You can replace the module without removing wiring. Check status LEDs for diagnostics. Keep the enclosure clean and dry.

Packing List

1 x 1794-IA8I Flex I/O module
1 x User manual
Note: Terminal base sold separately.
