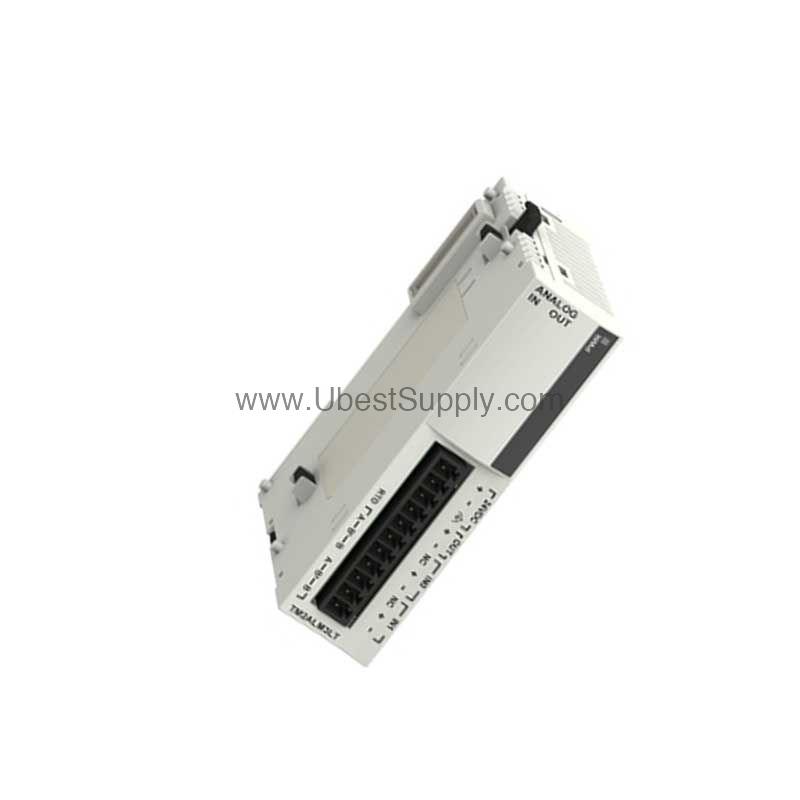

TM2ALM3LT | Schneider Analog I/O Module Supplier

Introduction to the TM2ALM3LT

When precise temperature monitoring and control are critical, the TM2ALM3LT from Schneider Electric provides a reliable solution. This analog input/output module is part of the Modicon M238 logic controller family, designed to handle low-level signals from thermocouples and temperature probes. With 2 analog inputs and 1 analog output, it delivers accurate data acquisition and output control in compact industrial applications.

Key Features & Technical Specs

• 2 analog inputs for temperature probes (Pt100, 3-wire, 100...500 °C) and thermocouples (J, K, T).
• 1 analog output configurable for current (4...20 mA) or voltage (0...10 V).
• 12-bit resolution on both inputs and outputs ensures precise measurement.
• Input impedance is at least 1 MOhm, minimizing signal loading.
• Conversion time of 20 ms plus one controller cycle time for fast response.
• External 24 V DC supply with a voltage range of 19.2...30 V.
• Compact dimensions: 23.5 mm wide, 70 mm deep, 90 mm high, and weighs 0.085 kg.

One standout spec is the crosstalk of less than or equal to 2 LSB, which minimizes interference between channels—critical for maintaining signal integrity in multi-sensor setups.

Applications & Use Cases

In temperature monitoring systems, the TM2ALM3LT excels at reading thermocouple and Pt100 probes. For example, in a plastic molding process, it can monitor mold temperature using a Type J thermocouple while outputting a 4...20 mA signal to a heater controller. Its low-level input capability makes it ideal for environments where signal accuracy is paramount, such as laboratory ovens or industrial drying tunnels.

Installation & Setup

Mount the TM2ALM3LT onto a DIN rail within the Modicon M238 system. Use shielded cable for all analog connections to reduce electrical noise. Connect the external 24 V DC supply within the 19.2...30 V range. The module uses one removable screw terminal block for wiring. Ensure the controller cycle time is accounted for when calculating total conversion time.

Maintenance & Reliability

Regularly inspect the terminal block connections for tightness and check for signs of cable wear. The module's photocoupler insulation between channels and internal logic enhances reliability by preventing ground loops. Operate within the specified temperature coefficient range to maintain measurement accuracy over time.

Compatibility & Integration

The TM2ALM3LT is compatible with Schneider Modicon M238 logic controllers and also works with Advantys OTB and Twido systems. It integrates seamlessly using the controller's analog input/output configuration software.

Troubleshooting & Common Issues

If readings are unstable, verify that the cable is shielded and grounded properly. Check that the supply voltage stays within 19.2...30 V DC. For thermocouple inputs, ensure the correct type (J, K, or T) is selected and that the probe is wired for differential measurement. If output current is incorrect, confirm the load impedance is less than or equal to 300 Ohm for current mode.

FAQ about TM2ALM3LT

Q: What is the input resolution of the TM2ALM3LT?

A: The analog input resolution is 12 bits.

Q: Can the TM2ALM3LT measure thermocouple types other than J, K, and T?

A: The module supports only J, K, and T thermocouples as specified.

Q: What is the output error of the TM2ALM3LT?

A: The output error is plus or minus 1 percent of full scale.

Q: Does the TM2ALM3LT require an external power supply?

A: Yes, it requires an external 24 V DC supply with limits of 19.2...30 V.

Q: What is the weight of the TM2ALM3LT module?

A: It weighs 0.085 kg.

Product Support & Availability

The TM2ALM3LT is available from Petro Auto Tech. Contact our team for current stock levels and lead times. We are ready to assist with your order.
