Industry Trends in Motion Control Networking
Modern motion control systems demand high-speed, deterministic communication to synchronize multiple axes precisely. The shift towards Industry 4.0 and the Industrial Internet of Things (IIoT) is driving the adoption of open, standard-based fieldbus protocols like SERCOS III. Manufacturers are increasingly looking for interface modules that can seamlessly integrate into existing architectures while providing the bandwidth needed for real-time control.
In this landscape, the Schneider Electric TM5NS31 stands out as a purpose-built solution for Modicon LMC078 motion controllers. It enables reliable data exchange over a 100 Mbit/s SERCOS III network, ensuring that complex motion sequences run smoothly. This article provides a technical overview of the TM5NS31, its key specifications, and its role in modern automation systems.
Introducing the TM5NS31 SERCOS III Module
Petro Auto Tech now offers the Schneider Electric TM5NS31, a SERCOS III communication module designed for the Modicon TM5 range. This module acts as the interface between a motion controller and the SERCOS III fieldbus network, enabling high-speed, real-time communication. It is specifically compatible with the Modicon LMC078 motion controller, making it a critical component for advanced motion control applications.
The TM5NS31 features two RJ45 connectors for SERCOS III connectivity, supporting a communication rate of 100 Mbit/s. It also includes an integrated Ethernet/IP connection with two additional RJ45 connectors, providing flexibility for network integration. The module consumes 5 V DC from the base and has a power dissipation of 1.75 W, making it an energy-efficient choice for control cabinets.
Technical Specifications Analysis
Examining the TM5NS31's specifications reveals its suitability for demanding industrial environments. The module offers robust electromagnetic compatibility (EMC), with resistance to electrostatic discharge up to 4 kV on contact and 8 kV in air, conforming to EN/IEC 61000-4-2. It also withstands electromagnetic fields of 10 V/m from 80 MHz to 2 GHz, ensuring reliable operation in noisy industrial settings.
For surge immunity, the TM5NS31 handles 0.5 kV differential mode and 1 kV common mode surges per EN/IEC 61000-4-5. Fast transients are managed at 1 kV for I/O and shielded cables, and 2 kV for power lines, conforming to EN/IEC 61000-4-4. These specifications highlight the module's resilience, reducing the risk of communication errors or equipment damage in real-world installations.
The module also provides clear visual diagnostics with three LEDs: one green/red for STAT, one green/red for SERCOS III status, and one green LED for each SERCOS III port. This allows technicians to quickly assess network health and troubleshoot issues. Weighing just 0.03 kg, the TM5NS31 is lightweight and compact, fitting easily into space-constrained control panels.
Application Scenarios and Use Cases
The TM5NS31 is ideal for multi-axis motion control applications, such as packaging machinery, printing presses, and material handling systems. In a packaging line, for example, the module enables synchronized movement of servo drives, ensuring precise cutting and sealing operations. The high-speed SERCOS III protocol minimizes latency, which is critical for maintaining product quality and throughput.

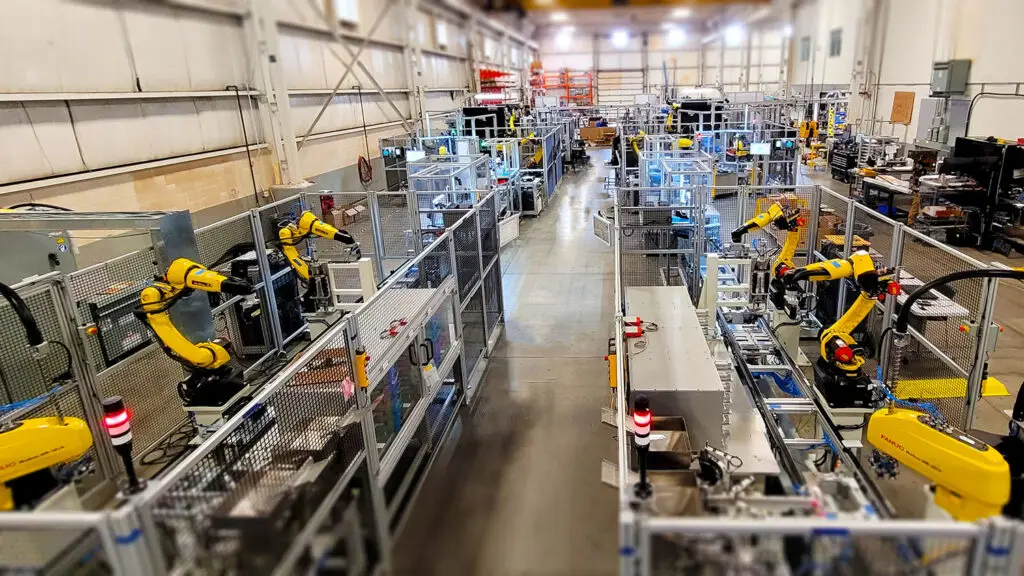

Another application is in robotic assembly cells, where the TM5NS31 coordinates the motion of multiple robot arms and conveyors. The deterministic communication ensures that all axes move in harmony, reducing cycle times and improving overall equipment effectiveness (OEE). The module's EMC robustness also makes it suitable for environments with high electrical noise, such as welding shops or automotive plants.
Compatibility and Integration
The TM5NS31 is designed for seamless integration with the Modicon LMC078 motion controller. It supports both SERCOS III and Ethernet/IP protocols, allowing it to fit into diverse network architectures. The module requires a bus base, power supply, and terminal block, all ordered separately, which provides flexibility in system design.
For engineers, this means they can standardize on the Modicon TM5 platform while leveraging the performance of SERCOS III. The dual RJ45 connectors for SERCOS III allow for daisy-chaining of multiple devices, simplifying cabling and reducing installation costs. The integrated Ethernet/IP connection enables easy integration with higher-level control systems for data collection and monitoring.
Comparison with Similar Modules
When comparing the TM5NS31 to other fieldbus interface modules, several factors stand out. Below is a comparison with typical SERCOS III modules from other vendors, based on available data:
| Feature | TM5NS31 | Typical SERCOS III Module |
|---|---|---|
| Communication Rate | 100 Mbit/s | 100 Mbit/s |
| Connectors | 2 x RJ45 (SERCOS III), 2 x RJ45 (EtherNet/IP) | 2 x RJ45 (SERCOS III) |
| Power Dissipation | 1.75 W | Varies |
| ESD Resistance | 4 kV contact, 8 kV air | Varies |
| Surge Withstand | 0.5 kV diff, 1 kV common | Varies |
This table illustrates that the TM5NS31 offers integrated Ethernet/IP, which is not always standard on SERCOS III modules. This dual-protocol capability can reduce the need for additional gateways, saving cost and space. The specific EMC ratings also demonstrate a commitment to reliability in harsh environments.
Company Strength and Supply Assurance
Petro Auto Tech is a trusted supplier of industrial automation parts, offering genuine Schneider Electric products like the TM5NS31. With a focus on quality and availability, we help customers maintain their operations with minimal downtime. Our team provides expert support to ensure you select the right components for your motion control systems.
Please verify current lifecycle status and availability with Petro Auto Tech before ordering. We are committed to delivering reliable solutions that meet your automation needs.
Frequently Asked Questions About the TM5NS31
What is the TM5NS31 used for?
The TM5NS31 is a SERCOS III communication module used to interface a Modicon LMC078 motion controller with a SERCOS III network. It enables high-speed, real-time communication for multi-axis motion control applications.
What are the key specifications of the TM5NS31?
The module supports 100 Mbit/s SERCOS III communication, has two RJ45 connectors for SERCOS III and two for Ethernet/IP, consumes 5 V DC, and dissipates 1.75 W. It also meets EN/IEC 61000-4-2, 61000-4-3, 61000-4-4, and 61000-4-5 standards.
Is the TM5NS31 compatible with other Modicon controllers?
The provided data indicates compatibility with the Modicon LMC078 motion controller. For other controllers, please consult official Schneider documentation or contact Petro Auto Tech for guidance.
What accessories are needed for the TM5NS31?
The module requires a bus base, power supply, and terminal block, all ordered separately. These components are essential for proper installation and operation.
How does the TM5NS31 handle electromagnetic interference?
The module is designed to withstand electrostatic discharge up to 4 kV contact and 8 kV air, electromagnetic fields up to 10 V/m, and fast transients up to 2 kV on power lines, ensuring reliable operation in industrial environments.
