Why Modern Automation Needs the TM251MESC
Industrial networks are evolving rapidly, and controllers must keep pace with the demands of Industry 4.0. The Schneider TM251MESC logic controller from the Modicon M251 series is designed to meet these challenges head-on. It combines powerful communication capabilities with a compact form factor, making it a versatile choice for a wide range of applications.
With dual-port Ethernet and CANopen connectivity, the TM251MESC enables seamless integration into existing and new automation architectures. This controller supports real-time data exchange and remote monitoring, which are essential for optimizing production efficiency and reducing downtime.
Introducing the TM251MESC from Schneider Electric
When engineers face the challenge of connecting diverse machinery and systems, the TM251MESC offers a reliable solution. This logic controller is part of the Modicon M251 family, known for its flexibility and performance in compact automation tasks. It is rated for a supply voltage of 24 V DC, with a voltage range of 20.4 to 28.8 V, ensuring stable operation in industrial environments.
The controller features a 64 MB system RAM and 128 MB built-in flash memory for user program backup, providing ample space for complex applications. Its real-time clock with a drift of less than 60 seconds per month at 25°C ensures accurate time-stamping for data logging and event management.
Technical Specifications: A Closer Look at Connectivity and Performance
The TM251MESC is engineered for robust communication. It includes a USB port (mini B, USB 2.0), a non-isolated serial link (RJ45, RS232/RS485), and a dual-port Ethernet interface. The Ethernet ports support 10BASE-T/100BASE-TX, enabling fast and reliable network connections. For CANopen, it uses a SUB-D 9 connector and supports up to 63 server devices.
In terms of processing power, the controller executes 1 Kinstruction in 0.3 ms for event and periodic tasks, and 0.7 ms for other instructions. This speed is critical for time-sensitive control loops and rapid response to input changes. The controller also supports multiple communication protocols, including Modbus TCP client/server, Ethernet/IP slave, and OPC UA server, making it highly interoperable.
Application Scenarios: From Packaging to Process Control

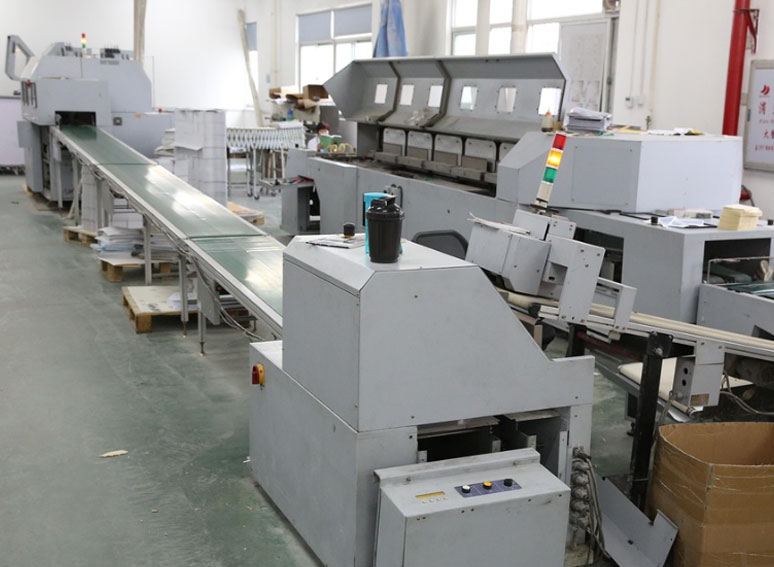

In packaging lines, the TM251MESC can coordinate multiple servo axes and manage high-speed counting and positioning tasks. Its fast execution time and deterministic behavior ensure precise synchronization, reducing waste and improving throughput. The controller's ability to handle up to 7 local and 14 remote I/O expansion modules allows for flexible system scaling.

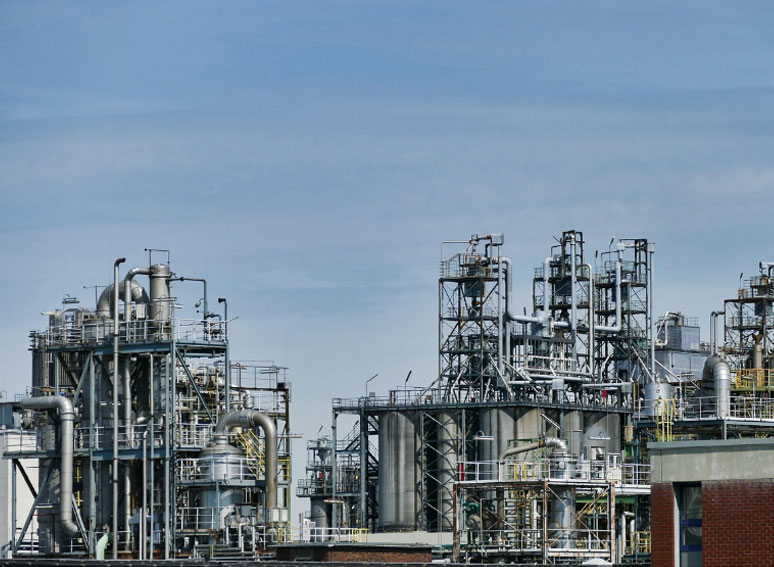

For process control applications, such as water treatment or food processing, the TM251MESC provides reliable monitoring and control. Its support for Ethernet and CANopen enables seamless integration with sensors, drives, and HMIs. The controller's wide operating temperature range (-10 to 55°C horizontal installation) ensures it can withstand harsh conditions.
Hypothetical Case: Enhancing a Bottling Plant's Efficiency
Consider a bottling plant that needs to upgrade its control system to improve line efficiency. By deploying the TM251MESC, the plant can centralize control of filling, capping, and labeling machines. The controller's Ethernet connectivity allows for real-time data collection and remote diagnostics, enabling maintenance teams to identify issues before they cause downtime.
With the TM251MESC's support for OPC UA, the plant can easily integrate the controller with higher-level MES or ERP systems. This integration provides valuable insights into production metrics, helping managers make data-driven decisions to optimize output and reduce energy consumption.
Compatibility and Integration: Building a Connected Ecosystem
The TM251MESC is designed to work seamlessly with other Schneider Electric components and third-party devices. It supports Modbus master/slave on the serial link, allowing connection to legacy Modbus devices. The dual-port Ethernet switch enables daisy-chaining of multiple controllers, simplifying network topology and reducing cabling costs.
For CANopen networks, the controller acts as a master, managing up to 63 nodes. This capability is ideal for applications with many distributed I/O points, such as material handling systems. The controller also supports web services, allowing users to access data via a standard web browser for monitoring and troubleshooting.
Market Impact: Driving Efficiency and Reducing Total Cost of Ownership
Adopting the TM251MESC can lead to significant cost savings over the lifecycle of a machine. Its built-in Ethernet and CANopen interfaces eliminate the need for additional communication modules, reducing hardware costs. The controller's energy-efficient design, with power consumption ranging from 32.6 to 40.4 W, helps lower operational expenses.
Moreover, the TM251MESC's robust construction and compliance with standards such as UL 508 and CE ensure long-term reliability, minimizing unplanned downtime. The controller's support for SD cards (up to 16 GB) allows for easy program backup and data logging, further enhancing its value proposition.
Petro Auto Tech: Your Trusted Partner for Automation Parts
Petro Auto Tech specializes in providing high-quality industrial automation components, including the Schneider TM251MESC. With a focus on customer satisfaction, we offer competitive pricing and reliable delivery. Our team is ready to assist you with product selection and technical support.
Frequently Asked Questions
What are the key communication interfaces of the TM251MESC?
The TM251MESC includes a USB port (mini B, USB 2.0), a non-isolated serial link (RJ45, RS232/RS485), and a dual-port Ethernet interface. It also supports CANopen via a SUB-D 9 connector. These interfaces allow flexible integration with various industrial networks.
How much memory does the TM251MESC have for programs and data?
The controller has 64 MB of system RAM and 128 MB of built-in flash memory for user program backup. Additionally, it supports optional SD cards up to 16 GB for data storage, providing ample space for complex applications and data logging.
What is the operating temperature range of the TM251MESC?
The TM251MESC operates in temperatures from 14 to 95°F (-10 to 35°C) for vertical installation and from 14 to 131°F (-10 to 55°C) for horizontal installation. This wide range ensures reliable performance in various industrial environments.
Can the TM251MESC be used in marine applications?
Yes, the TM251MESC has marine certifications including DNV-GL, ABS, and LR, making it suitable for shipboard and offshore applications. It also meets marine specification standards for electromagnetic compatibility and vibration resistance.
How does the TM251MESC support Industry 4.0 initiatives?
The TM251MESC supports OPC UA server, Ethernet/IP, and Modbus TCP, enabling seamless data exchange with IT systems. Its web server functionality allows remote monitoring and diagnostics, facilitating predictive maintenance and data-driven optimization.
Conclusion: The TM251MESC as a Future-Ready Investment
As industrial automation continues to advance, the need for intelligent, connected controllers will only grow. The Schneider TM251MESC offers a balanced combination of performance, connectivity, and reliability, making it a wise choice for modernizing operations. By integrating this controller, businesses can enhance productivity, reduce costs, and prepare for the future of manufacturing.
For more information about the TM251MESC or to place an order, contact Petro Auto Tech today. Our experts are ready to help you find the right automation solutions for your needs.
