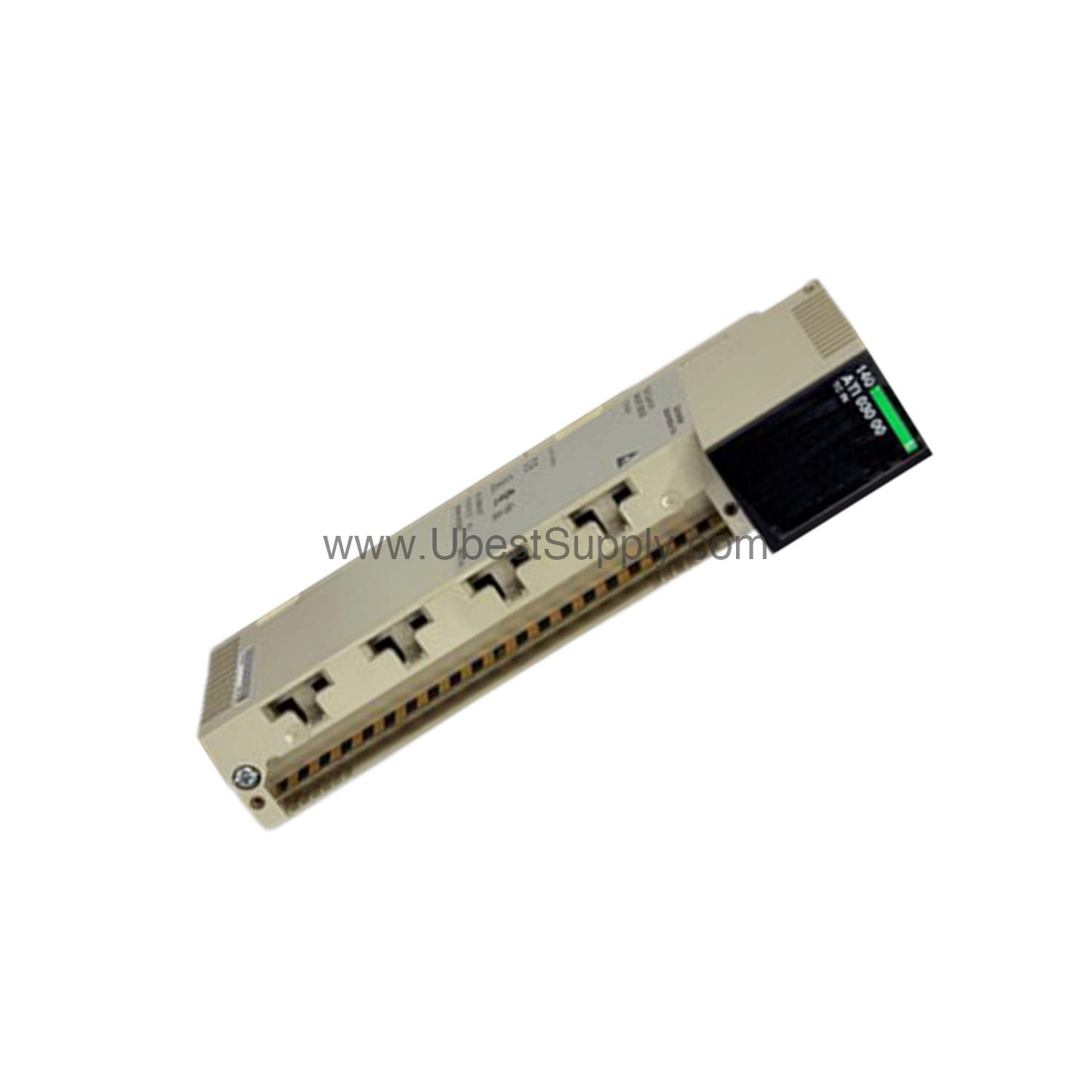

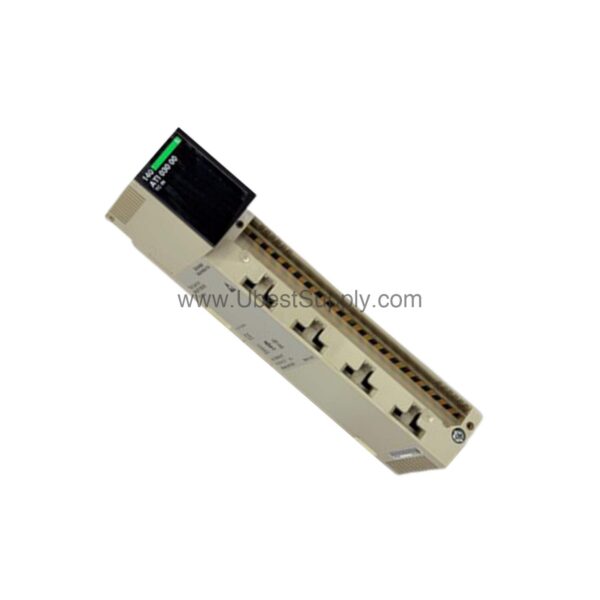

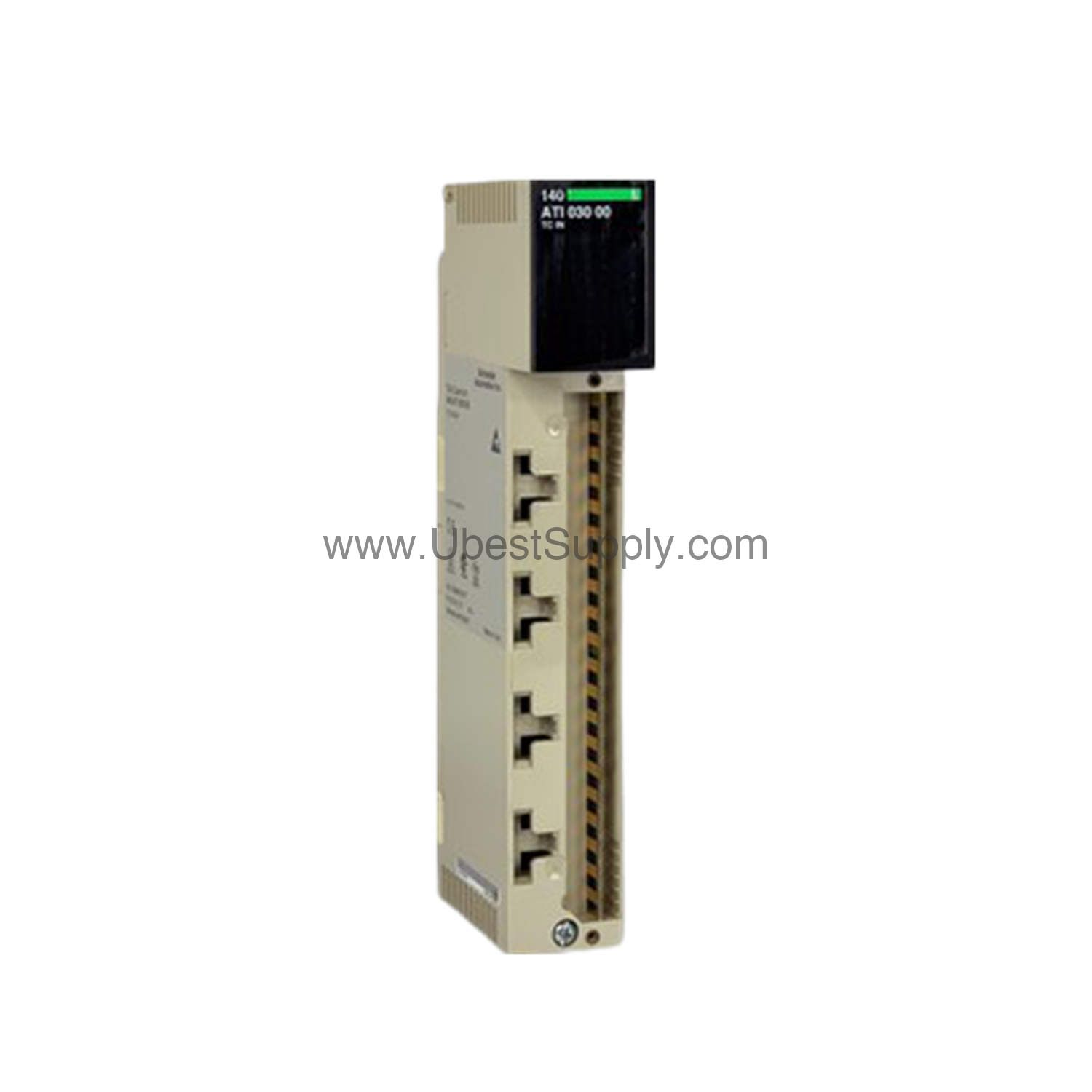

140ATI03000C | Schneider 8-Channel Thermocouple Analog Input Module

Introduction to the 140ATI03000C

When precise temperature monitoring is critical, the 140ATI03000C from Schneider Electric delivers reliable analog input performance. This I/O expansion module is designed for the Modicon Quantum automation platform, offering eight thermocouple input channels with 16-bit resolution. As a result, it ensures accurate signal conversion for demanding industrial processes.

The module focuses solely on analog input functionality, with zero output points. Consequently, it serves as a specialized component for control systems that require dedicated temperature sensing. Its compact standard format simplifies integration into existing Quantum racks.

Key Features and Technical Specifications

• 8 analog input channels for thermocouple measurement.
• 16-bit analog input resolution for high signal precision.
• Notch filter at 3 dB for 50/60 Hz and single pole low pass filter at 20 Hz.
• Bus current requirement of 280 mA.
• Power dissipation of 1.5 W.
• Update time of 1000 ms.
• Common mode rejection greater than -120 dB at 50/60 Hz.
• Isolation between channels and bus: 1780 V AC for 60 s and 2500 V DC for 60 s.

One distinctive spec is the 16-bit resolution, which translates to finer temperature readings. This is especially valuable in applications where small temperature variations matter, such as quality control in heat treatment.

Applications and Use Cases

The 140ATI03000C is well-suited for temperature monitoring in industrial furnaces, ovens, and environmental chambers. For example, it can read thermocouple types J, E, K, T, R, and S across various ranges. Additionally, its filtering capabilities help reject electrical noise, ensuring stable readings in electrically noisy environments. Therefore, this module is a practical choice for process industries that rely on accurate temperature data.

Installation and Setup

Installing the 140ATI03000C is straightforward. First, ensure the module is properly seated in a Modicon Quantum backplane. Then, connect thermocouple wires to the appropriate input terminals, observing polarity. After powering up, configure the module using the Quantum programming software to select the thermocouple type and filter settings. Finally, verify communication via the green Active LED.

Maintenance and Reliability

Regular inspection of the module and its connections is recommended to maintain reliable operation. Check for loose wiring or signs of corrosion periodically. The module includes diagnostic LEDs for channel status and faults, which aid in quick troubleshooting. By following the manufacturer's manual, you can ensure long-term service life.

Compatibility and Integration

This module is part of the Modicon Quantum automation platform, ensuring compatibility with Quantum controllers and I/O racks. It uses standard Quantum addressing, requiring 10 input words. As a result, integration into existing systems is seamless for engineers familiar with the platform.

Troubleshooting and Common Issues

If the red fault LED illuminates, check for broken wires or incorrect thermocouple connections. The module supports broken wire detection, which helps identify faulty sensors. Additionally, verify that the bus current requirement of 280 mA is within the power supply capacity. For persistent issues, consult the official Schneider documentation.

FAQ about 140ATI03000C

Q: What is the update time of the 140ATI03000C?

A: The update time is 1000 ms, ensuring timely data transmission.

Q: What thermocouple types does the 140ATI03000C support?

A: It supports thermocouple types J, E, K, T, R, and S with specified temperature ranges.

Q: Does the 140ATI03000C provide output points?

A: No, it has zero output points and is solely for analog input.

Q: What is the isolation voltage between channels and bus?

A: It is 1780 V AC for 60 s and 2500 V DC for 60 s.

Product Support and Availability

The 140ATI03000C is available through Petro Auto Tech. Contact us to confirm stock and delivery options. We are ready to assist with your industrial automation needs.
