21505-68-96-05-02 | Bently Nevada 8mm Proximity Probe

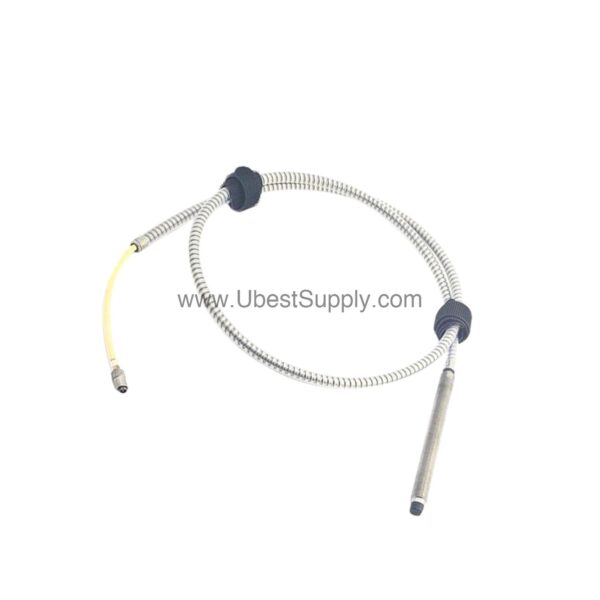

Product Overview: Bently Nevada 21505-68-96-05-02 Proximity Probe

When rotating machinery experiences unexpected vibration, the 21505-68-96-05-02 from Bently Nevada provides the early warning you need. This proximity probe is part of the 7200 series, engineered for continuous vibration and position monitoring in critical industrial applications. With a calibrated range of 80 mils (2.0 mm), it detects shaft movement with high accuracy, helping you avoid costly downtime.

The probe operates on a power supply of -17.5 Vdc to -26 Vdc at 12 mA maximum consumption, ensuring efficient energy use. Its scale factor of 200 mV/mil (7.87 V/mm) delivers precise output, making it a reliable choice for predictive maintenance programs. By catching issues early, you reduce repair costs and extend equipment life.

Key Features & Technical Specifications

• Part Number: 21505-68-96-05-02
• Model: Probe Proximity Vibration
• Manufacturer: Bently Nevada
• Total Length: 0.5 metre (20 inches)
• Power: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption
• Calibrated Range: 80 mils (2.0 mm), begins at approximately 10 mils (0.25 mm) from probe face
• Scale Factor: 200 mV/mil (7.87 V/mm), ±4% if calibrated as a system
• Linearity: Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line if calibrated as a system
• Frequency Response: 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz
• Temperature Sensitivity: Typically -3% change in scale factor at +150°F (+65°C) at 50 mils gap (1.27 mm)
• Operating Temperature (Proximitor): -60°F to +212°F (-51°C to +100°C)
• Operating Temperature (Probe and Extension Cable): -30°F to +350°F (-34°C to +177°C)
• Relative Humidity: To 95%, noncondensing
• System Weight: 1.3 lbs (0.59 kg)

One standout feature is the 200 mV/mil scale factor, which provides high-resolution output for precise vibration analysis. This accuracy translates into better detection of minor faults, reducing the risk of catastrophic failure and saving on emergency repairs.

Industry Applications & Use Cases

This proximity probe is ideal for monitoring turbines, compressors, pumps, and other rotating equipment in industries such as power generation, oil and gas, and manufacturing. For example, in a steam turbine, the probe continuously measures shaft vibration, allowing operators to spot misalignment or bearing wear early. Consequently, maintenance can be scheduled proactively, minimizing unplanned shutdowns and boosting overall productivity.

Furthermore, the probe's corrosion resistance to air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, and DMF makes it suitable for harsh environments. This durability reduces replacement frequency, offering long-term cost savings.

Installation & Setup

Proper installation is key to accurate readings. First, ensure the probe is mounted with the correct gap, as the calibrated range begins at approximately 10 mils (0.25 mm) from the probe face. Use the specified 3/8-24 threads for secure mounting. The lead armor is stainless steel, providing robust protection against mechanical damage.

When connecting the miniature male coaxial connector, verify that the power supply matches the required -17.5 Vdc to -26 Vdc range. Also, confirm that the total length of 0.5 metre (20 inches) suits your installation layout. Following these steps helps maintain the probe's linearity and frequency response, ensuring reliable data collection.

Maintenance & Reliability

Regular inspection of the probe and its cables is essential to maintain performance. Check for any physical damage to the lead armor or connector, and ensure the probe face remains clean and free from debris. Because the probe operates in temperatures up to +350°F (+177°C) for the cable, verify that your environment stays within these limits.

By incorporating this probe into a routine condition monitoring program, you can detect issues before they escalate. This proactive approach not only extends the life of your machinery but also reduces maintenance costs, delivering a strong return on investment.

Compatibility & Integration

The 21505-68-96-05-02 is designed to work with Bently Nevada 7200 series monitoring systems. It provides a standard output of 200 mV/mil, which is compatible with most vibration monitoring platforms. For seamless integration, consult the system's documentation to ensure proper configuration. If you need assistance, Petro Auto Tech can provide guidance on compatibility.

Troubleshooting & Common Issues

If you notice erratic readings, first check the power supply voltage. The probe requires -17.5 Vdc to -26 Vdc; deviations can cause inaccurate output. Next, verify the probe gap—if it is outside the calibrated range, readings may be non-linear. Also, inspect the connector for corrosion or loose connections, as these can introduce noise.

Another common issue is temperature drift. The probe has a temperature sensitivity of typically -3% change in scale factor at +150°F (+65°C). If your process temperature varies significantly, consider compensating for this effect in your monitoring software.

FAQ about 21505-68-96-05-02

Q: What is the calibrated range of the 21505-68-96-05-02?

A: The calibrated range is 80 mils (2.0 mm), beginning at approximately 10 mils (0.25 mm) from the probe face.

Q: What power supply does this probe need?

A: It requires -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.

Q: What is the frequency response of this probe?

A: The frequency response is 0 to 10 kHz (0 to 600,000 cpm), with -5% at 10 kHz.

Q: What is the operating temperature range for the probe and cable?

A: The probe and extension cable operate from -30°F to +350°F (-34°C to +177°C).

Q: How accurate is the scale factor?

A: The scale factor is 200 mV/mil (7.87 V/mm), with ±4% accuracy if calibrated as a system.

Product Support & Availability

The 21505-68-96-05-02 is available from Petro Auto Tech, a trusted industrial automation parts supplier. It comes in new, original factory packing with a 12-month warranty. For current availability and lifecycle status, contact Petro Auto Tech directly.
