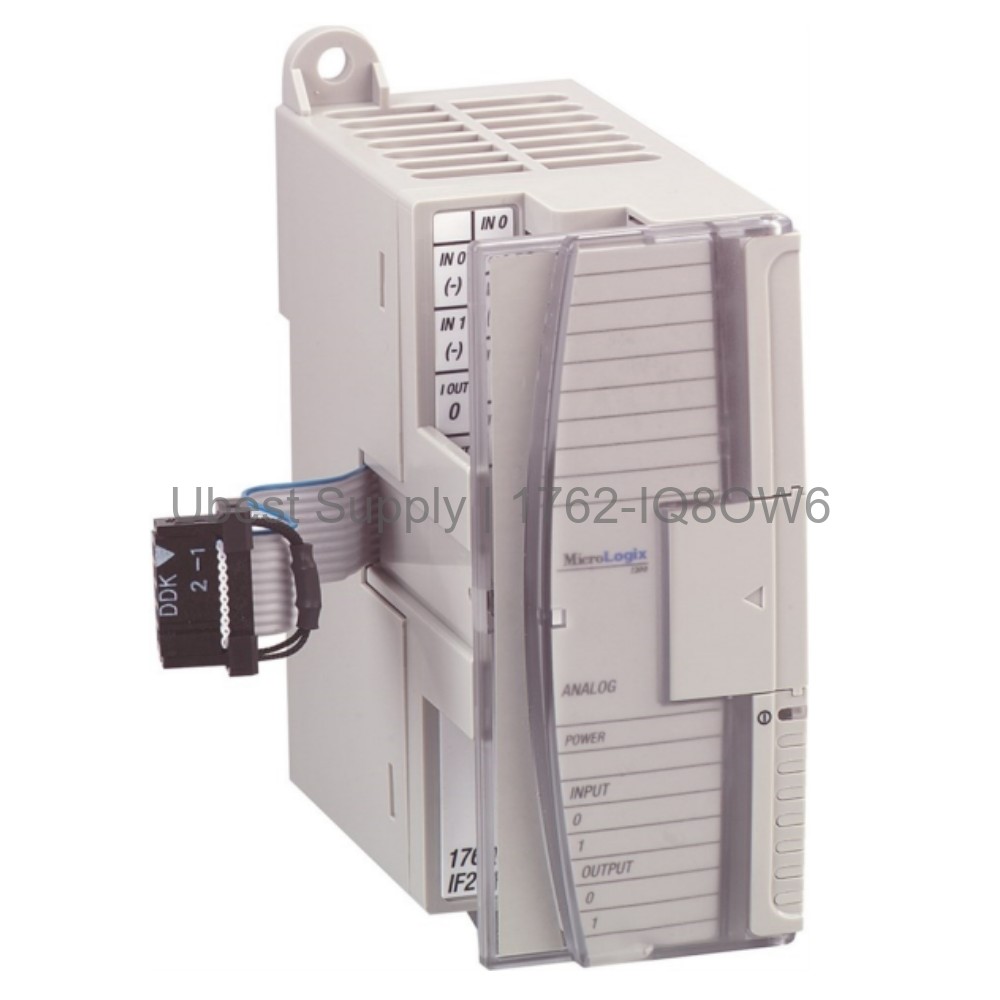

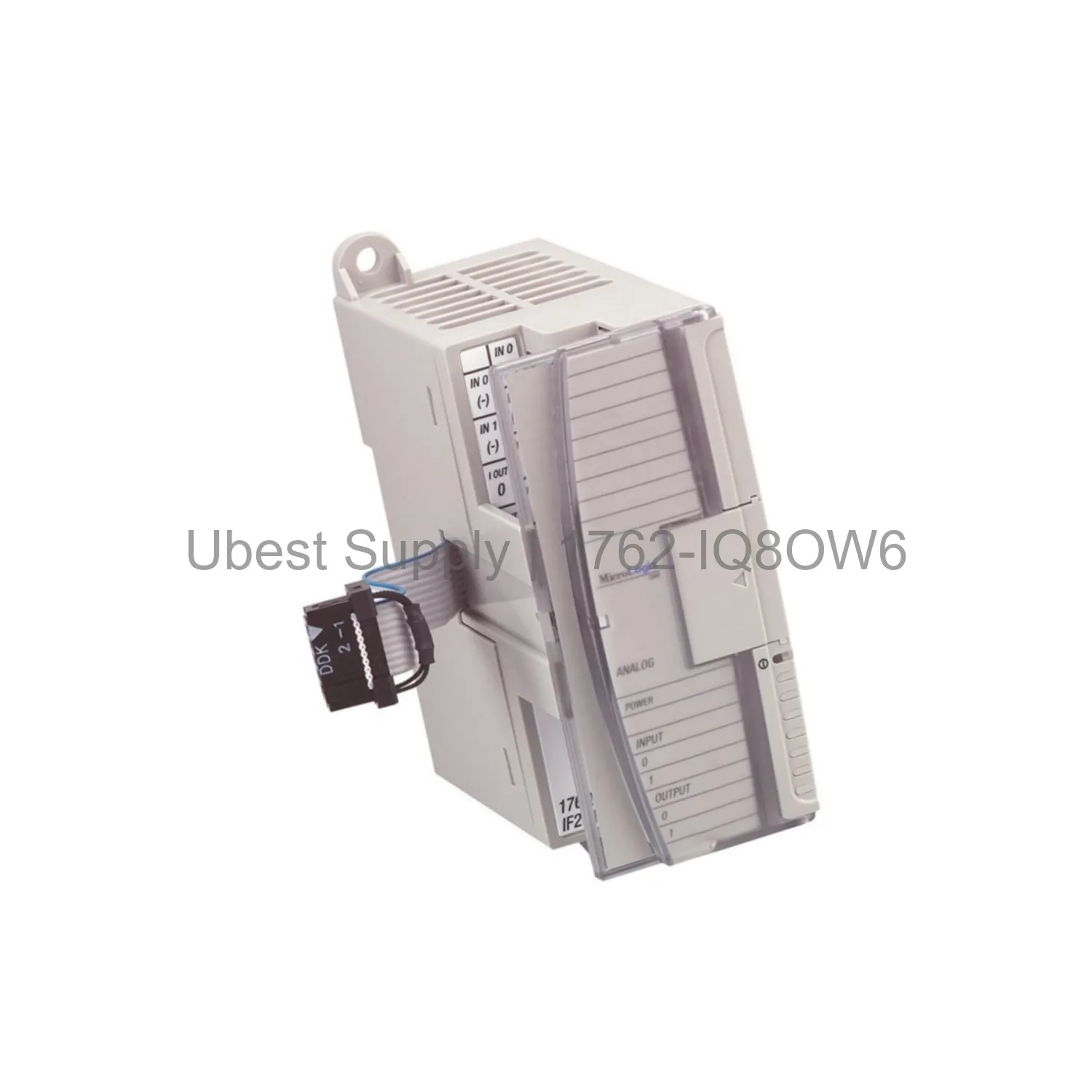

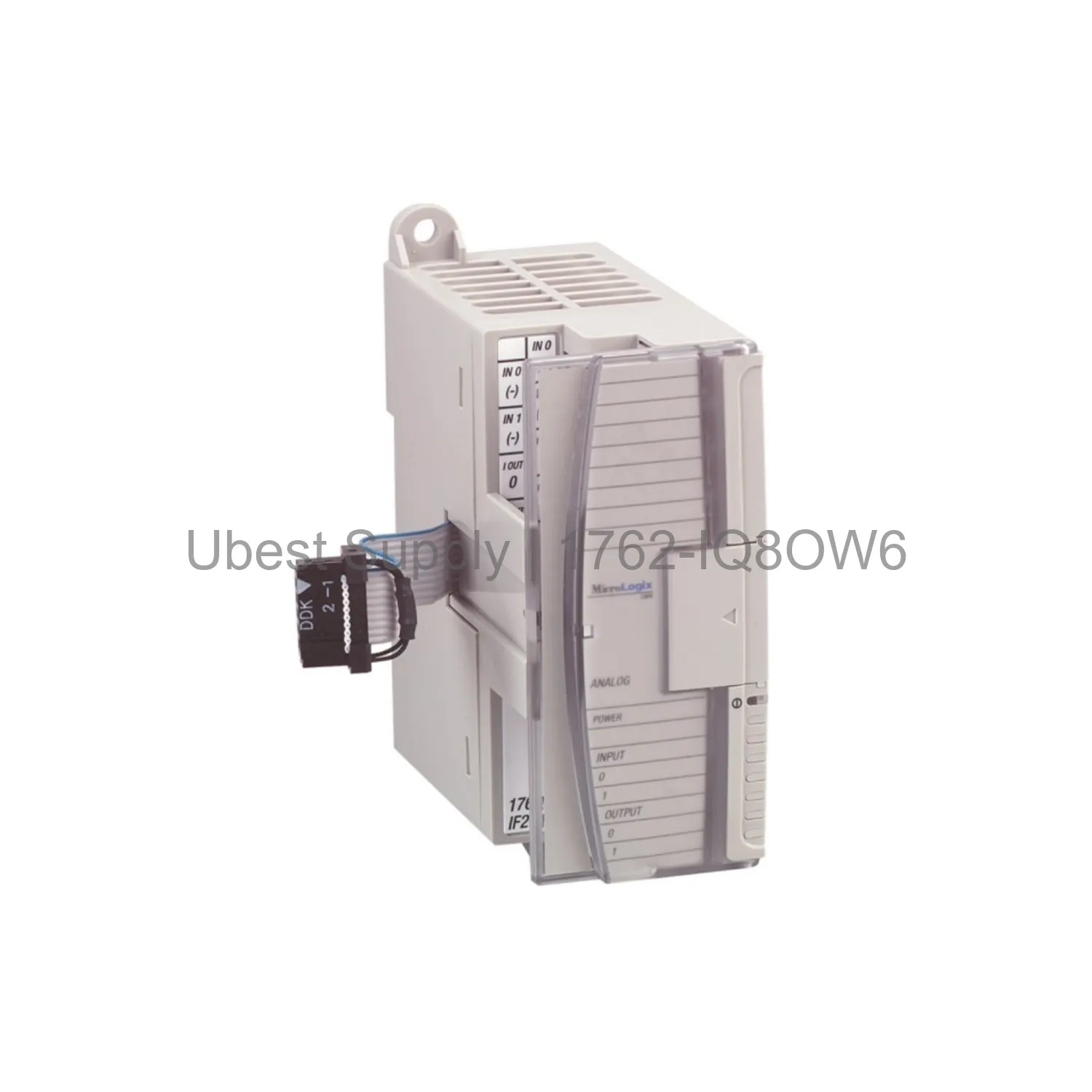

Allen-Bradley 1762-IQ8OW6 Combination I/O Module MicroLogix

Product Overview

The Allen-Bradley 1762-IQ8OW6 is a combination I/O module for MicroLogix systems. It includes eight input channels and six relay output channels. Inputs accept 10 to 30V DC signals. Outputs handle AC or DC loads up to 265V AC or 125V DC. This module works with MicroLogix 1100, 1200, and 1400 controllers. It fits in a compact footprint. Use it for industrial automation tasks.

Application Scenarios

This module suits control panels and machinery. It manages sensors, switches, and actuators. Use it in conveyor systems, packaging lines, and material handling. It also works in process control and building automation. The relay outputs drive motors, valves, and lights. The inputs read limit switches and proximity sensors.

Technical Specifications

• Input channels: 8 sink/source (10 to 30V DC)
• Output channels: 6 Form A relay (N.O.)
• Output voltage range: 5 to 265V AC; 5 to 125V DC
• Output contact rating: 2.5 A at 240V AC; 1.0 A at 125V DC; 2.0 A at 24V DC
• Module current: 8 A maximum
• Input power: 24V DC
• Backplane draw: 110 mA at 5V DC; 80 mA at 24V DC
• Heat dissipation: 5.0 W at 30V DC; 4.4 W at 26.4V DC
• Dimensions: 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in.)
• Weight: 280 g (0.62 lbs)

Installation & Maintenance Guide

Mount the module in a MicroLogix chassis. Keep it within six slots of the power supply. Use the provided mounting tabs. Secure the module with screws. Connect wiring per the user manual. Use proper fusing for output loads. Avoid overloading outputs. Keep the unit clean and dry. Check connections during maintenance.

Packing List

• 1 x Allen-Bradley 1762-IQ8OW6 combination I/O module
• 1 x installation guide
• Mounting hardware

Shipping is via FedEx, UPS, or DHL.
