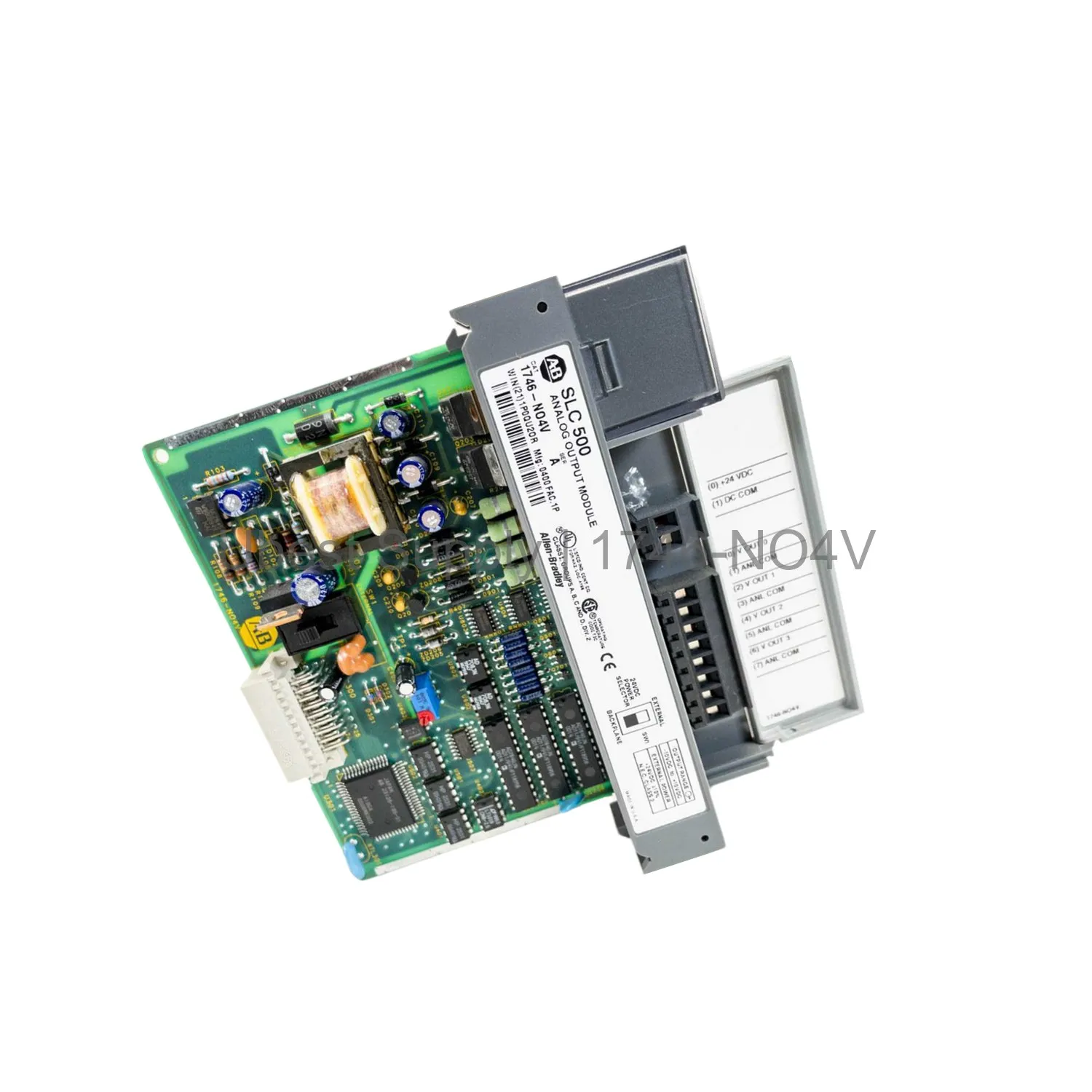

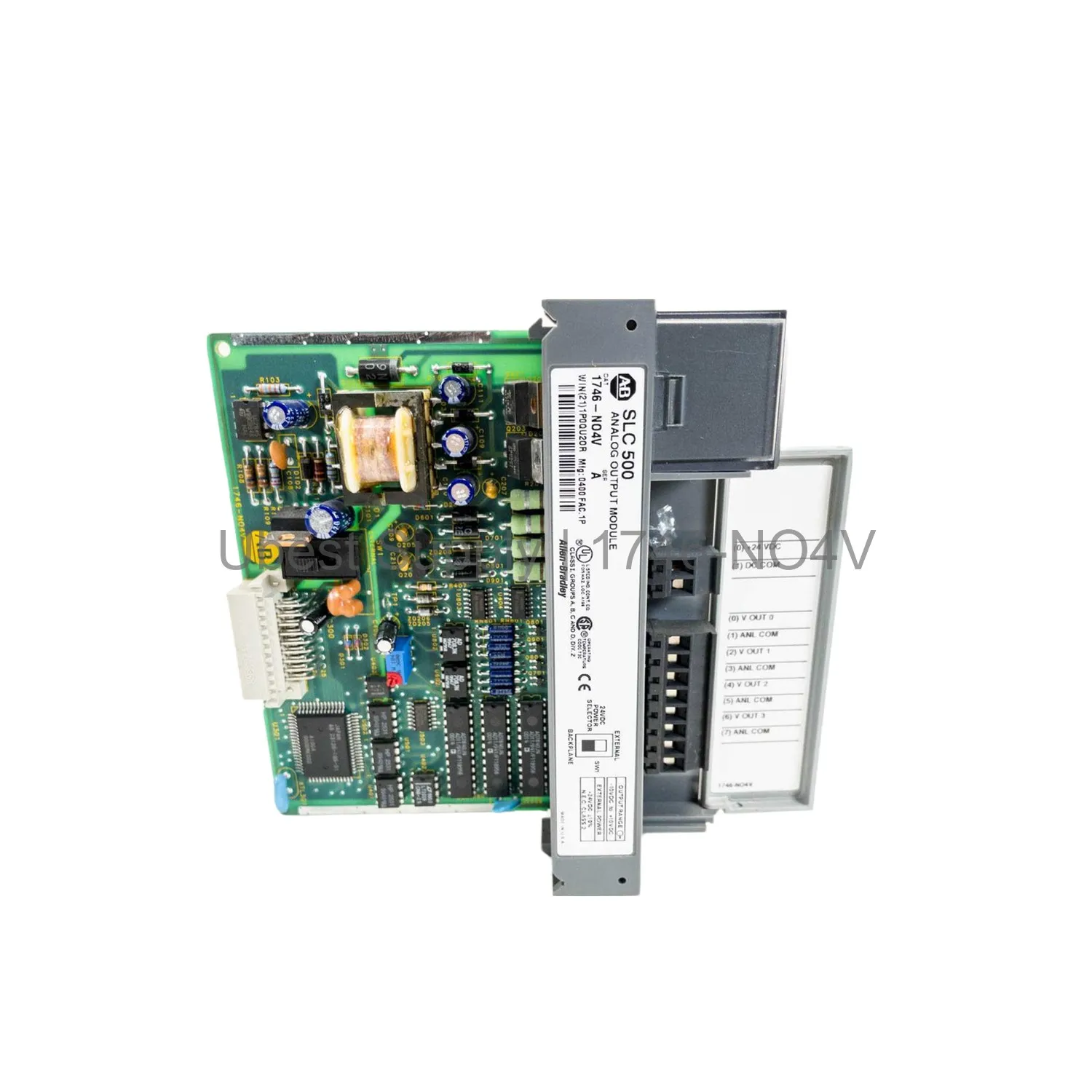

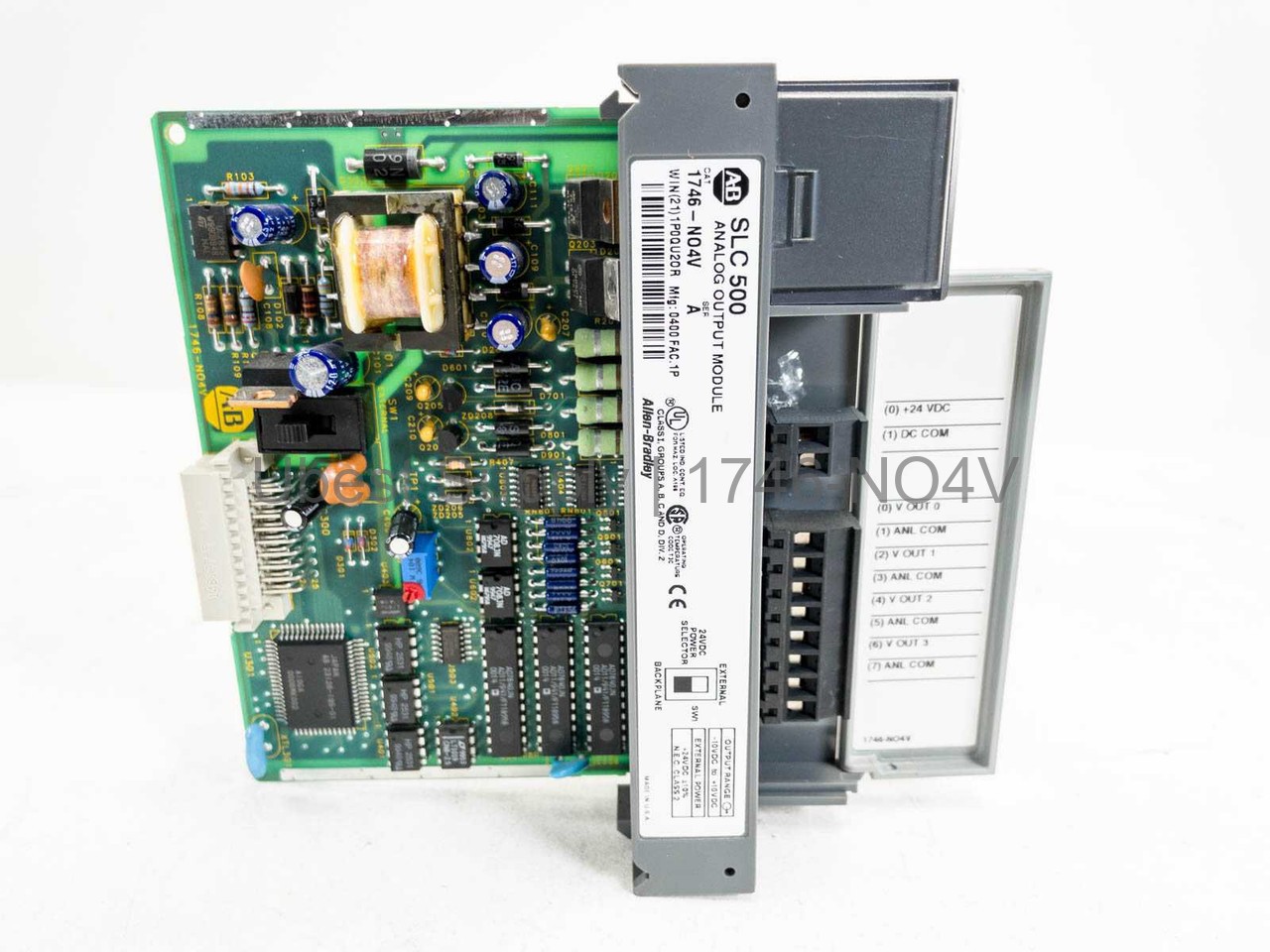

Analog Output Module Allen-Bradley 1746-NO4V SLC 500

Product Overview

The Allen-Bradley 1746-NO4V is an analog output module. It belongs to the SLC 500 series. This module provides four voltage outputs. It delivers a range from -10 to +10VDC. The resolution is 14 bits. This ensures high precision. The module uses an R-2R ladder conversion method. It is ideal for demanding automation tasks. The 1746-NO4V updates every 512 microseconds. This allows fast response times. The step response is just 2.5 milliseconds. It is a reliable choice for control systems.

Application Scenarios

This module works well in many industries. Use it for process control applications. It is perfect for motor speed regulation. It can control valve positions accurately. Use it in manufacturing assembly lines. It suits packaging machinery well. The module handles material handling systems. It is also good for robotic control. It provides stable voltage signals. This ensures consistent machine performance. The 1746-NO4V fits in SLC 500 racks. It integrates easily with existing systems.

Technical Specifications

The 1746-NO4V draws 55 milliamps from the 5V backplane. It draws 145 milliamps from the 24V backplane. The full scale output is 10 VDC. The voltage output coding ranges from -32,768 to +32,764. The update time is 512 microseconds. The resolution is 14 bits. The step response is 2.5 milliseconds. The ambient operating temperature is 0 to 60 degrees Celsius. It has LED indicators for status. The UPC is 10662073735929. This module is built for durability.

Installation & Maintenance Guide

Install the module into any SLC 500 chassis. Ensure the backplane power is off. Slide the module firmly into the slot. Tighten the screws to secure it. Connect wiring to the terminal block. Follow the wiring diagram carefully. Use shielded cables for best results. Keep the module in a clean environment. Check LED indicators for normal operation. Clean the module with a dry cloth. Do not use solvents. Inspect connections regularly for tightness.

Packing List

One Allen-Bradley 1746-NO4V analog output module. One installation manual. One terminal block. No additional accessories are included. The module is packaged securely. It is ready for immediate use. Shipping is available via Fedex, UPS, or DHL.
