Analog Output Module Allen-Bradley 1746-NO8I SLC 500

Product Overview

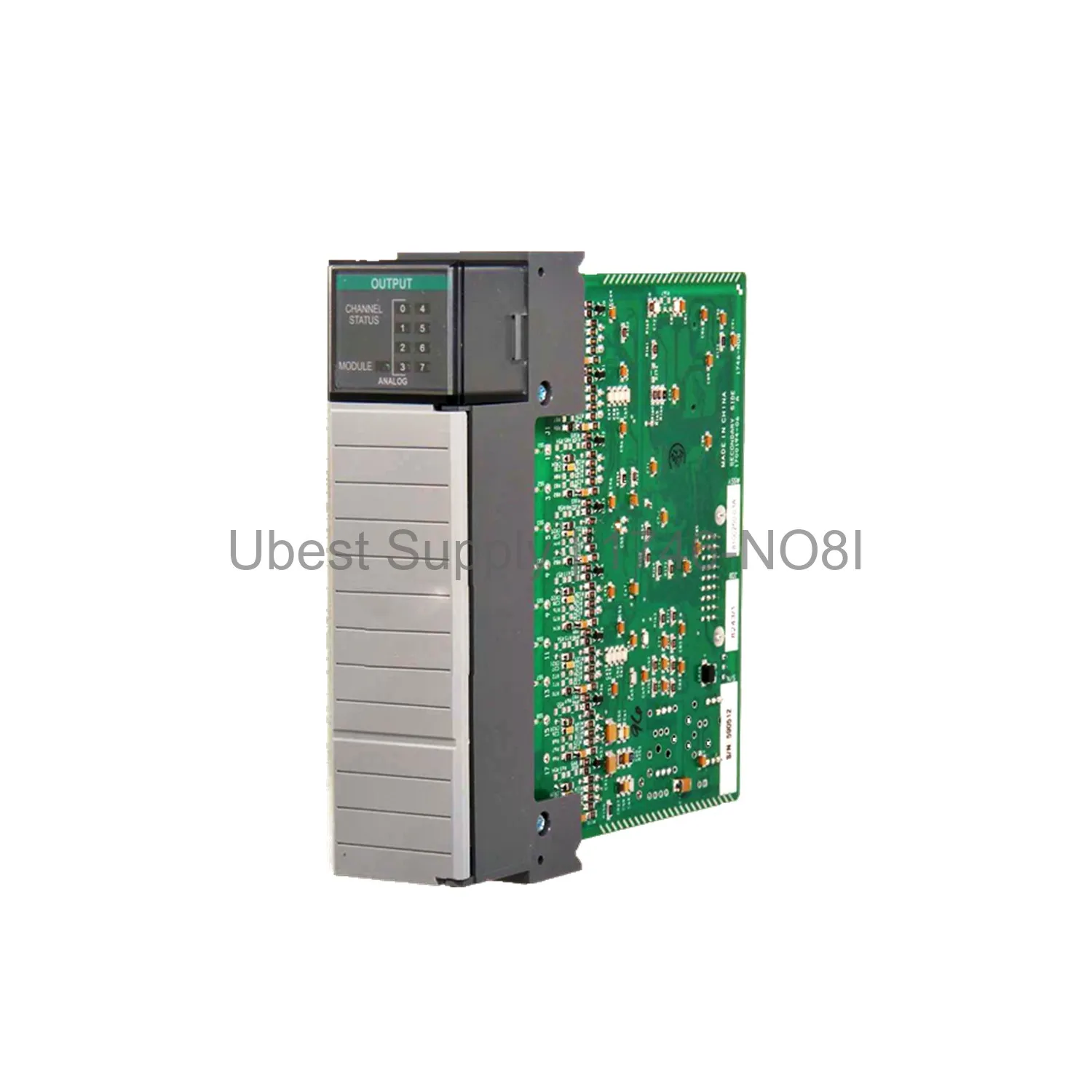

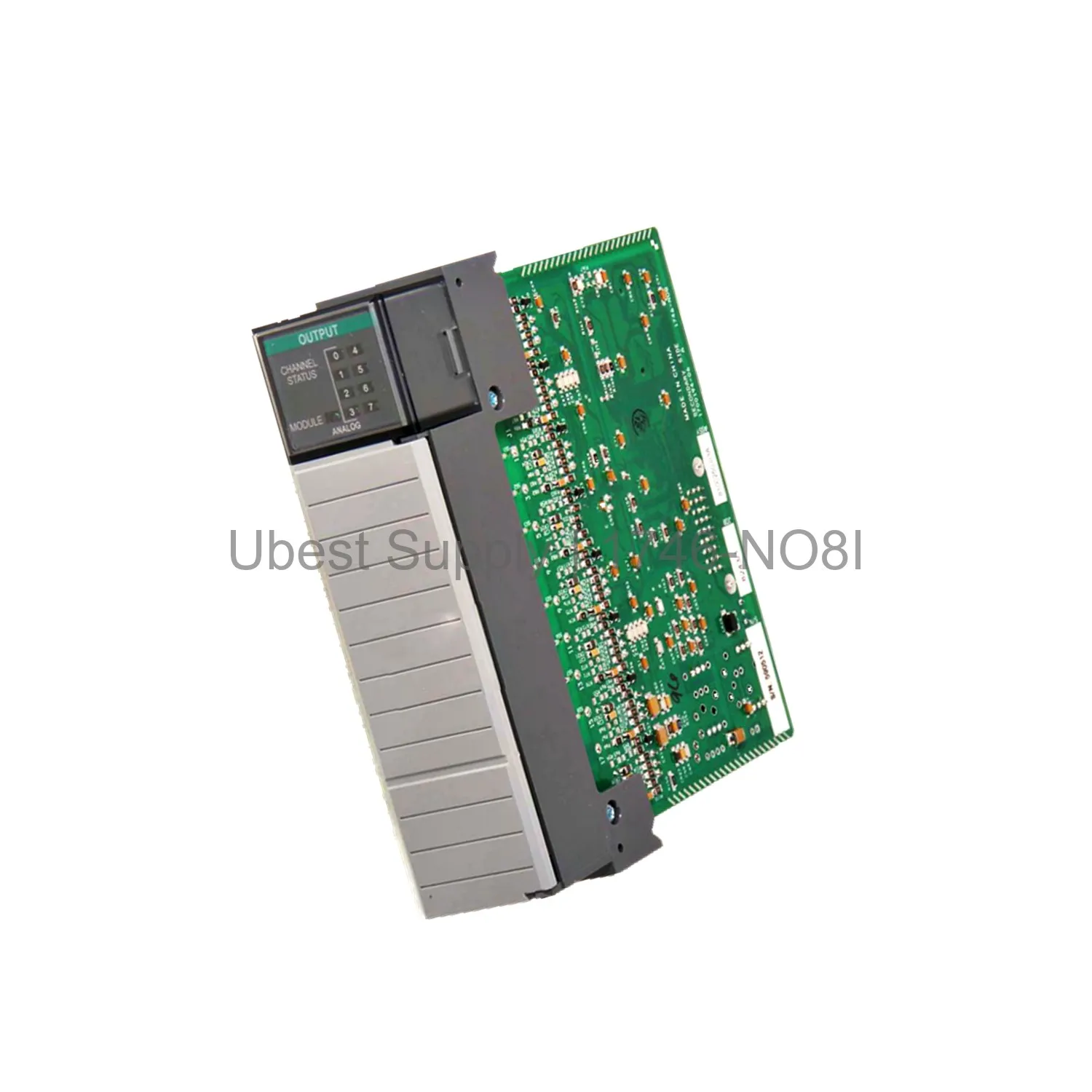

The Allen-Bradley 1746-NO8I is an analog output module for the SLC 500 system. This module provides eight current output channels. Each channel supports a range of 0 to +20 mA. It works with both fixed and modular SLC 500 hardware. This module converts digital data into analog current signals. It is ideal for precise control applications.

Application Scenarios

Use this module in industrial automation systems. It controls actuators, valves, and drives. It works well in process control environments. Factories and plants use it for precise current control. It is common in manufacturing and processing industries. The 1746-NO8I fits into any SLC 500 chassis. It supports many field devices that require current signals.

Technical Specifications

This module has eight output channels. Each channel outputs 0 to +20 mA. It uses a 16-bit digital-to-analog converter. The module requires 5V DC backplane power. It also needs 24V DC from an external source. The module operates in a 0 to 60 °C environment. It has a high accuracy and low drift. The 1746-NO8I is a reliable choice for analog control.

Installation & Maintenance Guide

Install the module into any SLC 500 slot. Connect the external 24V DC power supply. Wire the output channels to your field devices. Use shielded cables for best signal quality. Keep the module clean and dry. Check connections regularly for tightness. Avoid exposing the module to extreme heat. Replace the module only when powered off. Use standard Allen-Bradley wiring tools.

Packing List

The package includes one 1746-NO8I analog output module. It also includes a quick start guide. No cables or connectors are included. The module ships in an anti-static bag. We ship via FedEx, UPS, or DHL. Contact us for bulk order discounts.
