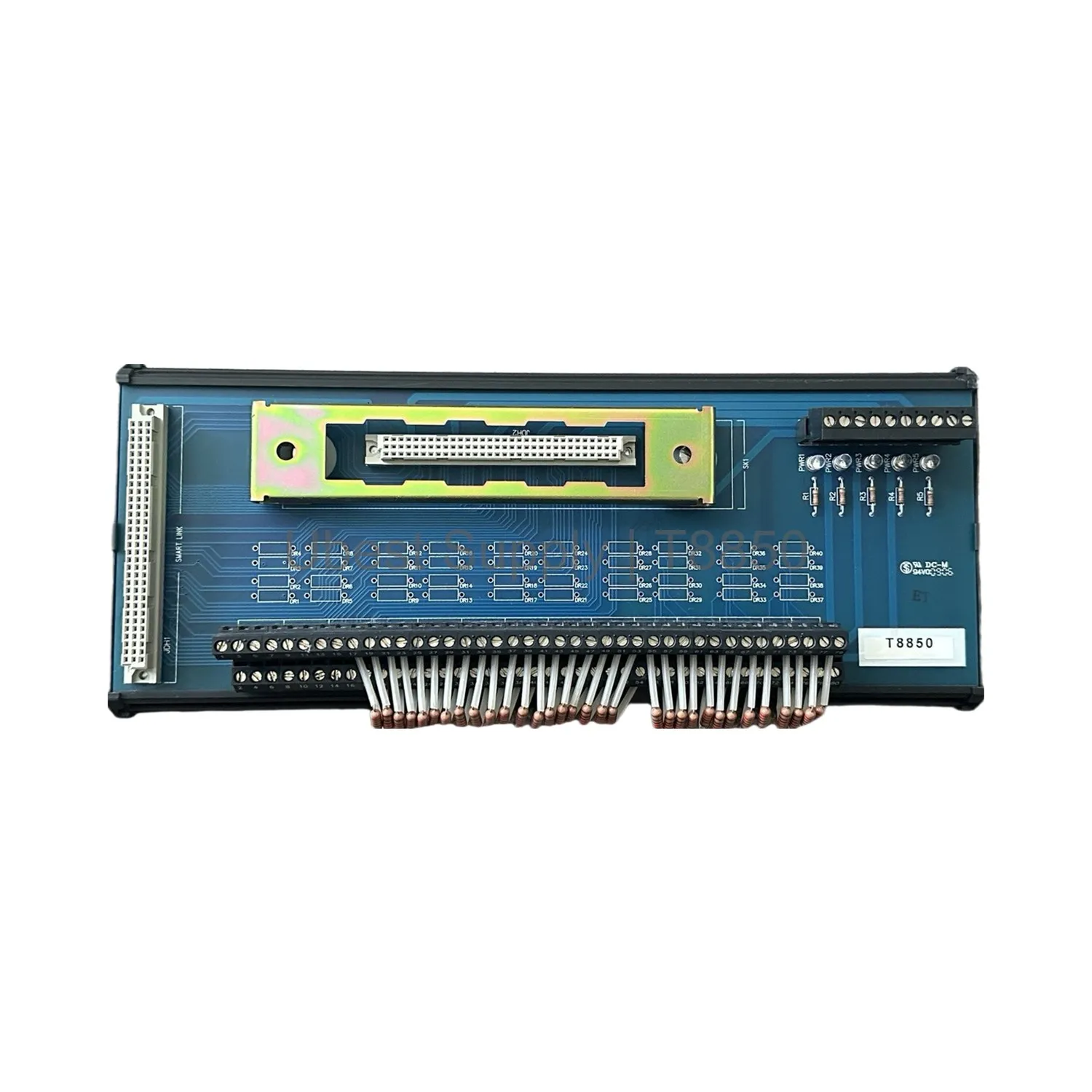

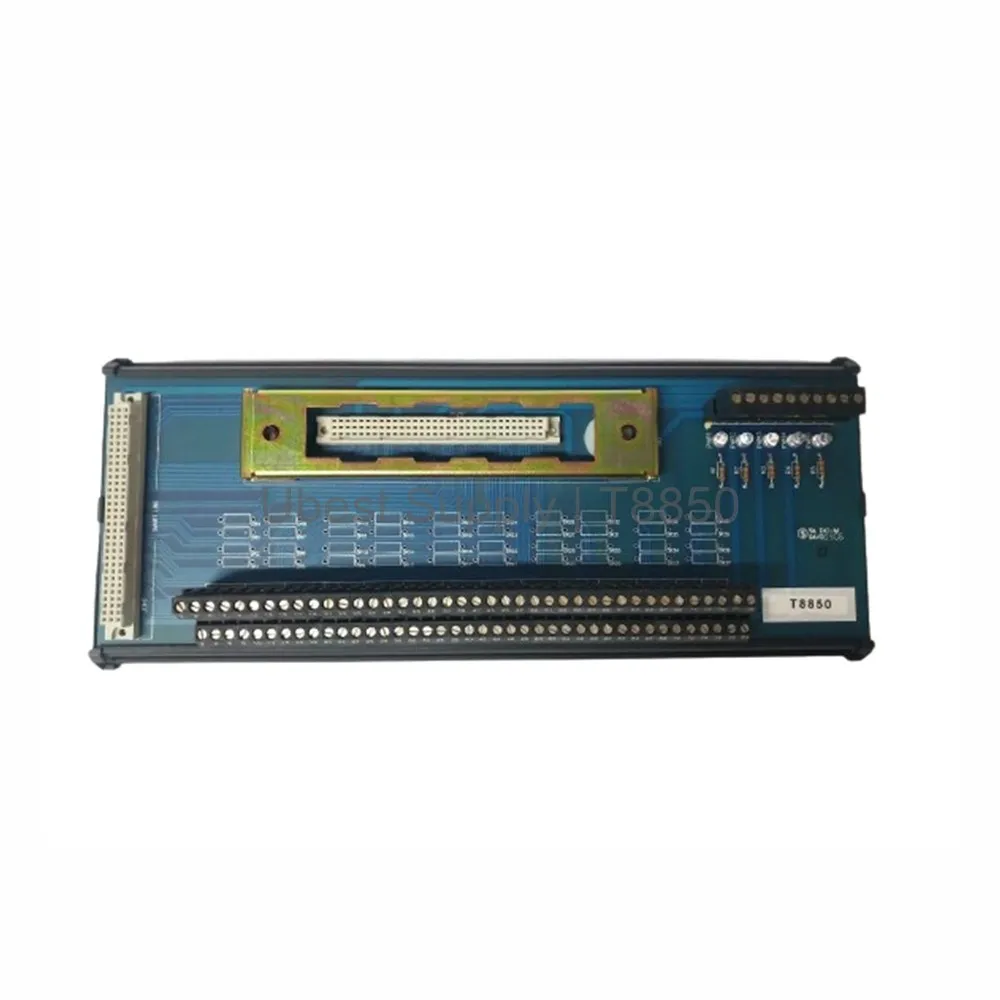

Output Module ICS Triplex T8850 Analog/Digital FTA 40 Ch

Product Overview

The ICS Triplex T8850 is a high-density output module. It works as an Analog/Digital Output FTA. This unit supports up to 40 channels. Each channel handles a 2A max current. The total module current reaches 40 A max. It accepts an 18 – 32 Vdc supply. It also works with an 18 – 60 Vdc supply. This flexibility fits many industrial setups. The T8850 is built for reliability in harsh environments. It carries certifications for Ordinary, HazLoc, ATEX, and IECEx. Use it in safety-critical systems. It ensures stable signal output for actuators and valves.

Application Scenarios

Use the T8850 in process control systems. It connects PLCs to field devices. It drives solenoids, indicators, and relays. It works well in oil and gas plants. It suits chemical processing facilities. It also fits power generation sites. The module handles discrete and analog outputs. It is a key part of ICS Triplex systems. Engineers trust it for high-availability applications. It reduces wiring with its 40-channel density. This saves cabinet space and lowers costs.

Technical Specifications

Supply Ratings: 18 – 32 Vdc; 18 – 60 Vdc. Input/Output Ratings: 2A max per channel. Total current: 40 A max. Torque: 0.5 N.m. Wire size: 30...12 AWG (0.05 ... 2.5 mm²). Weight: 0.8 Kg. The module is a field termination assembly. It provides a secure connection for output signals. Its design meets strict industry standards. The T8850 operates in extreme temperatures. It ensures signal integrity over long cable runs.

Installation & Maintenance Guide

Mount the module on a DIN rail. Use a torque of 0.5 N.m for terminals. Strip wires to 7 mm for proper contact. Use wire sizes from 30 to 12 AWG. Connect the supply first. Then attach output loads. Check polarity before powering up. Test each channel with a multimeter. Keep the module clean and dry. Inspect connections yearly. Replace damaged wiring immediately. Do not exceed 2A per channel. Ensure total load stays under 40 A. Use DHL, Fedex, or UPS for shipping. Store the unit in a static-free bag.

Packing List

1 x ICS Triplex T8850 Output FTA Module. 1 x Product manual. No additional accessories included. The T8850 is packed in anti-static foam. It ships in a sturdy cardboard box. Verify contents upon delivery. Contact support if items are missing.
